What Is The Difference between Single-acting And Double-acting Cylinders?

Introduction

Hydraulic and pneumatic cylinders are vital components in industrial systems. They play a crucial role in converting fluid pressure into linear motion.

But what’s the real difference between single-acting and double-acting cylinders?

In this article, we’ll explore how these two types of cylinders operate, their advantages, and which one suits your needs best.

Understanding Hydraulic Cylinders

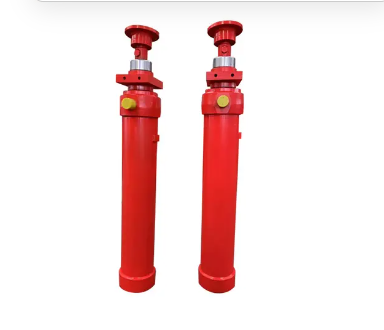

What Are Hydraulic Cylinders?

Hydraulic cylinders are mechanical devices that use fluid pressure to create linear motion. They consist of a piston and a cylinder housing. When fluid enters the cylinder, it pushes the piston, which in turn moves the attached load.

This process allows hydraulic cylinders to convert the energy from the fluid into force, making them essential in various industries.

Importance of Choosing the Right Cylinder Type

Selecting the right hydraulic cylinder is crucial for optimizing performance in different applications. For industries like manufacturing, robotics, and automotive, choosing the appropriate cylinder type ensures efficiency, speed, and force.

Each application may have specific needs. For example, you might need high precision for robotic arms or significant force for industrial presses. The right cylinder type helps achieve these goals while reducing costs and maintenance.

Choosing wisely can enhance the overall effectiveness of the system and extend the lifespan of the equipment.

Single-Acting Cylinders: Overview and Functionality

What is a Single-Acting Cylinder?

A single-acting cylinder uses fluid pressure to move the piston in one direction. It has only one port for air or hydraulic fluid. Once the pressure is applied, the piston extends, and a spring or gravity is used to return it to its original position.

This simple mechanism allows the cylinder to push or pull a load, depending on the application.

Advantages of Single-Acting Cylinders

● Simple design: Easy to install and operate.

● Cost-effective: Initial purchase and maintenance costs are low.

● Lower maintenance: Fewer components mean less wear and tear.

● Efficient for one-directional force: Ideal for tasks like clamping and lifting, where force is only needed in one direction.

These features make it a popular choice for many industries.

Disadvantages of Single-Acting Cylinders

● Limited to one-directional force: Can’t be used for both pushing and pulling without external mechanisms.

● Efficiency loss over time: Spring wear can affect the consistency of piston strokes.

● Space required for the spring: The spring occupies valuable space, which can limit the cylinder’s application.

These factors may affect performance in some cases.

Common Applications of Single-Acting Cylinders

Single-acting cylinders are widely used in applications that require a simple, one-way motion. Common uses include:

● Log splitters: Pushing the log apart using hydraulic pressure.

● Car lifts: Lifting heavy vehicles with minimal complexity.

● Presses: Compressing materials where force is needed in one direction only.

These cylinders are cost-effective and efficient for straightforward tasks.

Double-Acting Cylinders: Overview and Functionality

What is a Double-Acting Cylinder?

A double-acting cylinder is designed to operate with two ports, one for extension and one for retraction. Compressed air or hydraulic fluid enters the first port to extend the piston, while the second port controls retraction by applying pressure in the opposite direction.

This design allows for more precise and controlled movement in both directions.

Advantages of Double-Acting Cylinders

● Faster and more efficient: Double-acting cylinders offer quicker movement compared to single-acting cylinders.

● Greater control: The ability to extend and retract precisely makes them ideal for complex tasks.

● More power and versatility: They provide stronger force and can be used in applications requiring bi-directional movement.

These advantages make double-acting cylinders a top choice for many industries.

Disadvantages of Double-Acting Cylinders

● Higher cost: The complexity of the system makes it more expensive than single-acting cylinders.

● Requires more components: Larger housing and additional valves make the system more complex.

● Increased air consumption: The dual-port design requires more air, impacting overall energy efficiency.

Despite these challenges, their benefits often outweigh the drawbacks for demanding applications.

Common Applications of Double-Acting Cylinders

Double-acting cylinders are commonly used in industries where bi-directional movement and precision are key:

● Robotics: For precise arm and tool movement.

● Automotive: In assembly lines for parts handling.

● Construction: For lifting, pushing, or pulling heavy materials.

● Manufacturing machinery: For tasks requiring fast and reliable movement.

These applications benefit from the speed and power offered by double-acting cylinders.

Single-Acting vs. Double-Acting Cylinders: Key Differences

The Design Difference

The design of the ports is one of the biggest differences between single-acting and double-acting cylinders. A single-acting cylinder has only one port for fluid entry, while a double-acting cylinder uses two ports—one for extending the piston and the other for retracting it.

This difference in design impacts the speed, efficiency, and control of the cylinder. With one port, single-acting cylinders are slower and limited to one-directional movement. On the other hand, double-acting cylinders are quicker and allow for precise control in both directions.

Performance and Efficiency

● Single-acting cylinders: These are slower, as they can only move in one direction. Efficiency decreases over time due to spring wear.

● Double-acting cylinders: They are faster, more efficient, and can handle two-directional tasks with ease. They provide consistent force and speed, making them ideal for complex operations.

Double-acting cylinders often outperform single-acting cylinders in terms of speed and versatility.

Cost vs. Efficiency: What’s the Right Trade-off?

While single-acting cylinders are generally cheaper, they are less efficient in the long run, especially in applications needing high precision or frequent operation. Double-acting cylinders are more expensive but offer higher efficiency and better performance over time.

Choosing between them depends on your budget and long-term usage. If you need speed and precision, the higher upfront cost of double-acting cylinders might be worth it.

Which Cylinder Type Is Better for Your Needs?

To decide which cylinder type is best for your application, consider the following factors:

● One-directional vs. bi-directional movement: Single-acting cylinders are suited for one-directional tasks, while double-acting cylinders handle bi-directional tasks efficiently.

● Cost: If you're on a budget, single-acting cylinders are cheaper, but double-acting cylinders offer better long-term value.

● Speed and power: Double-acting cylinders provide faster movement and more power, especially for complex tasks requiring both extension and retraction.

Think about your specific needs to choose the right type for your project.

Maintenance and Longevity: Keeping Cylinders in Top Condition

How to Maintain Single-Acting Cylinders

Maintaining single-acting cylinders requires regular checks. One of the key aspects is monitoring spring wear. Over time, springs can lose their tension and affect performance. It’s important to inspect them frequently for signs of damage or wear.

Proper air preparation is also essential. Ensure that the air entering the cylinder is clean and free of moisture. Regular filter changes and lubrication will help keep the system running smoothly and prevent unnecessary wear.

How to Maintain Double-Acting Cylinders

Double-acting cylinders require additional attention due to their dual-port design. First, ensure smooth fluid flow and check air quality. Blockages or contamination can cause the cylinder to malfunction, affecting performance.

Regular inspection of seals and valves is crucial. These components can wear down over time, leading to leaks or loss of pressure. Replacing them as needed can extend the lifespan of the cylinder.

Expert Repair Services for Both Cylinder Types

For both single-acting and double-acting cylinders, expert repairs are essential. Professional technicians can quickly identify issues and ensure the cylinder performs at its best. Regular maintenance checks can prevent costly downtime and repairs.

Many repair services offer support for both types of cylinders, covering everything from minor fixes to complete overhauls. Choosing the right service can ensure your cylinders stay in top condition, reducing the need for frequent replacements.

Conclusion

Single-acting cylinders are simple and cost-effective, ideal for one-directional tasks. Double-acting cylinders offer more speed, power, and control, making them suitable for bi-directional movements.

For precision and efficiency, double-acting cylinders are the better choice. However, if your application requires less complexity, single-acting cylinders may be sufficient.

For expert advice tailored to your needs, consult a professional to choose the right cylinder type.

Frequently Asked Questions (FAQs)

Q: Can a Single-Acting Cylinder Be Used for Both Extension and Retraction?

A: No, single-acting cylinders can only move in one direction. They require an external force, such as a spring or gravity, for retraction.

Q: What Industries Benefit Most from Double-Acting Cylinders?

A: Industries like robotics, manufacturing, automotive, and construction benefit from double-acting cylinders due to their ability to handle precise, bi-directional movements.

Q: How Do I Choose Between a Single-Acting and Double-Acting Cylinder for My Project?

A: Consider factors like cost, the need for one-directional or bi-directional movement, and the required speed and power for your specific application.
