Views: 0 Author: Site Editor Publish Time: 2025-04-29 Origin: Site
Are you wondering where double-acting cylinders are used in real-world applications? These versatile components play a crucial role in industries ranging from construction to robotics. Understanding their use can help you select the right cylinder for your needs.
In this post, we’ll explore the importance of double-acting cylinders and how they’re applied across various fields. You’ll learn about their unique benefits and the tasks they’re designed to handle efficiently.

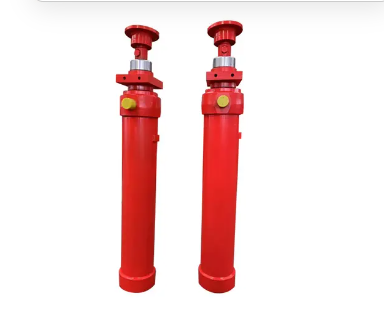

A double-acting hydraulic cylinder is a powerful component in hydraulic systems. Unlike a single-acting cylinder, it uses two ports for hydraulic fluid. This setup allows the cylinder to perform actions in both directions – extension and retraction.
In a single-acting hydraulic cylinder, fluid enters through one port to push the piston out. The piston then returns to its original position using gravity or a spring. In contrast, a double-acting cylinder uses hydraulic fluid to control both the extension and retraction of the piston. This provides more control and power for tasks requiring movement in both directions.
The dual inlet connections in a double-acting hydraulic cylinder make it more versatile. One port controls the extension of the piston, while the other controls the retraction. This allows for precise, controlled movements, making it ideal for applications that require consistent, repetitive action. The ability to control both motions separately results in faster and more efficient performance.
Two hydraulic fluid connections: one for extension, the other for retraction.
Provides more power and flexibility for controlled motion.
Suitable for tasks requiring both pushing and pulling actions.
These features make double-acting cylinders essential in industries like construction, manufacturing, and automation.
A double-acting hydraulic cylinder operates using hydraulic fluid to power both its extension and retraction. Here’s how it works, step by step:
Hydraulic Fluid Enters: When hydraulic fluid enters one side of the cylinder, it pushes the piston outward, causing the rod to extend.
Reversing the Process: To retract the piston, hydraulic fluid is pumped into the opposite side. The pressure pushes the piston back, retracting the rod.
Controlled Movements: Both directions are powered by hydraulic fluid, which means there’s no need for springs or gravity to return the piston.
Hydraulic fluid is key to the operation of a double-acting cylinder. It fills the cylinder, creating pressure to move the piston. The fluid's pressure on either side of the piston ensures controlled, powerful movements. By controlling the flow of fluid, we can precisely control how far the piston moves in each direction.
Greater Control: Hydraulic fluid allows for precise, smooth movements in both directions.
More Power: The fluid can exert a constant and reliable force, ensuring consistency.
Faster Response Time: Since fluid can move quickly, the piston extends and retracts faster, increasing efficiency.
In short, the hydraulic double acting cylinder provides better control and power for tasks that require precise, bidirectional movement.
Choosing a double-acting hydraulic cylinder offers several key benefits. Here's why they are preferred for many applications:
Double-acting cylinders allow for faster retraction compared to single-acting cylinders. The hydraulic fluid provides precise control over both the extension and retraction of the piston, leading to smoother operation and better overall performance.
Unlike single-acting cylinders, which can only perform one movement direction, double-acting cylinders can push and pull. This makes them versatile for tasks requiring both motions, such as lifting and lowering or pushing and pulling heavy loads.
Double-acting cylinders are great for tasks that need to be performed frequently, such as opening and closing doors or gates. The ability to control both directions ensures reliable and consistent performance in repetitive movements.
One of the key advantages is the ability to independently control extension and retraction. This flexibility makes double-acting cylinders essential in applications requiring accurate and controlled movements in both directions.
These benefits make double-acting hydraulic cylinders a reliable choice for industries like construction, manufacturing, and automotive. Whether you're lifting, pulling, or pressing, they provide the precision and power needed for a wide range of tasks.
Double-acting hydraulic cylinders are used in a wide range of industries, from manufacturing to robotics. Their ability to perform both pushing and pulling tasks makes them essential for tasks requiring movement in multiple directions. Let’s explore the most common applications.
In manufacturing plants and factories, double-acting cylinders are crucial for tasks like pressing, imprinting, and lifting. They ensure precise control in repetitive movements, such as moving heavy materials or machinery. The versatility and speed of these cylinders make them ideal for high-demand industrial environments.
Double-acting hydraulic cylinders are widely used in construction machinery. They power the arms of backhoes, excavators, and loaders. These cylinders provide the force needed for lifting, digging, and other heavy-duty tasks, allowing operators to perform precise movements even in the toughest conditions.
In agriculture, double-acting cylinders are essential for equipment like tractors and harvesting machines. They help control movements such as lifting equipment or adjusting the height of attachments. The efficiency and power of these cylinders make farm equipment more reliable and easier to operate.
In the automotive industry, double-acting cylinders are used in hydraulic vehicle lifts and jacks. They allow for smooth lifting and lowering of vehicles during repairs and maintenance. Their precise control ensures that heavy vehicles can be safely and quickly lifted without any issues.
Double-acting cylinders are also used in marine and offshore industries. They play a critical role in ship steering mechanisms and loading/unloading equipment. The ability to control both pushing and pulling movements is essential for handling large, heavy cargo on ships and offshore rigs.
In robotics, double-acting cylinders are used in robotic arms for precise movement and control. They allow robots to perform repetitive tasks with accuracy, such as assembly, packing, or material handling. These cylinders are integral to ensuring robots can carry out complex tasks in manufacturing, logistics, and other fields.
These various applications highlight the flexibility and essential nature of double-acting cylinders in modern industries. Whether it’s lifting heavy equipment or ensuring precise movements in robots, these cylinders are built to handle tough tasks with ease.
When choosing a hydraulic cylinder, it's important to understand the difference between double-acting and single-acting cylinders. Both have their uses, but they work in very different ways.
A single-acting cylinder uses hydraulic fluid to extend the piston, relying on a spring or gravity to return it to its original position. It has one fluid port and works only in one direction.
On the other hand, a double-acting cylinder uses hydraulic fluid to control both the extension and retraction of the piston. It has two fluid ports, allowing it to perform tasks in both directions, providing more control and power.
Advantages of Single-Acting Cylinders:
Simple design and easier to maintain.
Lower cost compared to double-acting cylinders.
Suitable for tasks that only require one direction of movement.
Drawbacks of Single-Acting Cylinders:
Less precise control of movement.
Relies on gravity or a spring for retraction, which can be less efficient.
Advantages of Double-Acting Cylinders:
Provides precise control in both directions.
Faster and more powerful retraction, with no reliance on gravity or springs.
Ideal for tasks requiring repetitive, bi-directional movement.
Drawbacks of Double-Acting Cylinders:
More complex design and maintenance.
Higher cost due to the need for two hydraulic ports and hoses.
A single-acting cylinder is ideal when you only need to push an object in one direction and can rely on gravity or a spring for retraction. It's perfect for simple, low-cost applications like lifting or compacting.
A double-acting cylinder is necessary when precise, controlled movements are required in both directions. It's the better choice for heavy-duty, repetitive tasks, such as in construction equipment, robotics, and manufacturing.
In short, choose a single-acting cylinder for simple, one-way tasks and a double-acting cylinder for tasks requiring more control and bi-directional movement.
Keywords Focus: "double-acting vs single-acting cylinders", "hydraulic cylinder double acting vs single-acting"
Why should you choose a double-acting hydraulic cylinder? Here are the key benefits that make it stand out in many applications.
Double-acting cylinders provide quicker retraction compared to single-acting cylinders. Since they use hydraulic fluid to control both extension and retraction, there's no waiting for springs or gravity. This means faster cycles and more efficient operations in tasks that require rapid, repeated movements.
One of the biggest advantages of double-acting cylinders is their ability to perform both push and pull tasks. This makes them ideal for applications like lifting and lowering, pushing and pulling, or any task that requires controlled movement in both directions.
Hydraulic fluid allows for precise control over piston movements in both directions. This results in smooth, predictable performance, which is critical in industries like robotics and manufacturing, where accuracy is key. The ability to control both extension and retraction makes these cylinders ideal for tasks requiring fine adjustments and repeated cycles.
Keywords Focus: "Advantages of double-acting cylinders", "cylinder hydraulic double acting"
While double-acting hydraulic cylinders offer numerous advantages, they also come with some potential drawbacks. Here’s what you need to know before choosing one for your system.
Double-acting cylinders are more complex than single-acting cylinders. They require more maintenance due to the additional components, such as two hydraulic ports and hoses. This complexity can lead to more time spent on upkeep, troubleshooting, and repairs.
Because double-acting cylinders use two hydraulic ports, they are more expensive than their single-acting counterparts. Additionally, the need for two hose connections increases installation costs and time. The extra components also raise the overall cost of the hydraulic system.
Since double-acting cylinders have multiple fluid ports and hoses, the risk of leaks is higher. A minor leak can disrupt the system’s performance, causing pressure loss and possibly damaging other parts of the hydraulic system. Regular inspection and maintenance are essential to prevent leaks.
Keywords Focus: "Drawbacks of double-acting cylinders", "hydraulic double acting cylinder drawbacks"
Selecting the right double-acting hydraulic cylinder for your needs is crucial for optimal performance. Here are the key factors to consider before making your choice.
Before choosing a cylinder, you need to understand the specific needs of your hydraulic system. Consider the pressure requirements — too much or too little pressure can affect performance. The size and stroke length of the cylinder also matter. A cylinder that’s too long or too short won’t perform as needed for your application.
Check whether the cylinder is compatible with your system. It should match the pressure ratings and flow specifications. Also, consider the installation process. If it requires additional components like hoses or fittings, it could add to the cost. Budget constraints are another factor to keep in mind, as double-acting cylinders tend to be more expensive than single-acting ones.
Double-acting cylinders are widely used in industries like construction, manufacturing, automotive, and agriculture. They’re ideal for applications requiring repetitive, precise movement in both directions. Whether you need them for lifting heavy machinery, controlling robotic arms, or powering industrial presses, these cylinders are built to handle a range of demanding tasks.
Keywords Focus: "Choosing a double-acting hydraulic cylinder", "hydraulic cylinder double acting selection"
Proper maintenance is key to ensuring the longevity and reliability of double-acting hydraulic cylinders. Here are some essential tips for keeping your cylinders in top shape.
Regular inspection is vital. Check for leaks around seals, hoses, and fittings. Clean the cylinder to remove dirt or debris that can cause wear. Ensure the hydraulic fluid is at the proper level and is free from contaminants. Keeping the cylinder well-lubricated reduces friction, preventing unnecessary damage to the components.
Look out for these common signs of wear and tear:
Reduced efficiency: If the cylinder is slower than usual, it could mean internal damage.
Leaks: Leaks around seals or hoses are clear indicators of a problem.
Irregular movement: If the piston moves unevenly, the seals or piston rod may need attention.
Noise: Unusual sounds, like grinding or excessive hissing, can signal issues inside the cylinder.
If the cylinder’s performance is declining or it shows signs of significant wear, it may be time to replace parts or send it for repair. Common parts that wear out include seals, hoses, and piston rods. If a cylinder is beyond repair, replacing it might be more cost-effective than continuing repairs.
Keywords Focus: "Double-acting hydraulic cylinder maintenance", "repair of hydraulic double acting cylinder"
Double-acting hydraulic cylinders are used in many industries to improve performance and precision. Here are some real-world case studies showcasing their applications.
In the automotive industry, double-acting hydraulic cylinders are commonly used in vehicle lifts and jacks. These cylinders allow for smooth, controlled lifting and lowering of vehicles during repairs and maintenance. The ability to control both directions makes the lifting process faster and safer, especially when handling heavy vehicles.
In construction, double-acting cylinders are essential for heavy machinery like backhoes and excavators. These cylinders control the movement of arms and buckets, allowing operators to perform precise digging, lifting, and material handling. The dual-action feature gives operators better control, reducing time and effort required for tasks like trenching and lifting large loads.
The robotics industry relies heavily on double-acting hydraulic cylinders for accurate, repeatable movements. These cylinders power robotic arms used in manufacturing, packaging, and assembly lines. The ability to move in both directions with precision ensures that robots can carry out delicate tasks, such as placing components or assembling products with high accuracy.
Keywords Focus: "Double-acting hydraulic cylinder case study", "double-acting hydraulic cylinder applications"
Double-acting hydraulic cylinders are versatile and essential in many industries. They provide fast, efficient movement in both directions, offering control and precision. Their ability to handle repetitive tasks and power heavy equipment makes them indispensable in construction, automotive, and robotics.
When choosing a cylinder, consider factors like size, pressure, and cost. Need a reliable double-acting cylinder for your system? Explore quality options to meet your needs today.
Keywords Focus: "Where is a double-acting cylinder used?", "double-acting hydraulic cylinder benefits"
