How many cylinders are in a backhoe loader?Have you ever wondered how a backhoe loader moves so easily despite its massive size? The secret is hydraulic cylinders. These powerful parts lift, swing, and tilt various sections effortlessly.But how many cylinders does a backhoe loader actually have? In this post, you'll learn about these crucial components and their roles.
Hydraulic cylinders are mechanical devices used to generate force through pressurized fluid. They play a critical role in moving heavy machinery, including backhoe loaders. These cylinders convert the power of pressurized hydraulic fluid into mechanical force, making them essential for lifting, tilting, and moving parts of the machine.
At the core of every hydraulic cylinder is a piston, which moves inside a cylinder tube. When hydraulic fluid is pumped into the cylinder, it pushes the piston, creating motion. This allows the backhoe loader to perform various tasks, like lifting the bucket or swinging the boom.
Fluid Pressure: Hydraulic fluid under pressure pushes the piston inside the cylinder.
Piston Movement: As the piston moves, it drives mechanical parts, allowing the loader to perform its functions.
Control: The operator controls fluid flow to the cylinders through a valve, guiding the machinery’s movements.
In heavy machinery like backhoe loaders, hydraulic cylinders are vital for their efficiency and power. Without them, it would be nearly impossible to move heavy loads or perform precise movements. These cylinders allow operators to control the machine’s functions with ease, from lifting the bucket to stabilizing the backhoe.
Precision: They provide precise control over heavy parts.
Force Generation: They can generate significant force with relatively low input power.
Efficiency: Hydraulic cylinders increase overall machine efficiency by delivering more force with less energy.
The power and reliability of hydraulic cylinders make them indispensable in construction and earth-moving equipment.
Hydraulic cylinders are the heart of a backhoe loader’s movement. They control and power the loader’s various functions, like lifting, tilting, and swinging parts. These cylinders work by converting hydraulic fluid pressure into mechanical force, allowing the machine to carry out tasks with precision and strength.
The hydraulic cylinders are responsible for the loader’s versatility. Whether lifting the bucket or swinging the boom, cylinders provide the movement needed for all key functions. By controlling fluid flow, the operator can dictate the speed and force of the movement, making these cylinders essential for smooth, controlled operation.
Lifting and tilting: Cylinders lift and tilt the loader bucket to move materials.
Swinging: They allow the backhoe boom to swing in different directions.
Stabilization: Outrigger cylinders provide support for the loader when operating.
The magic behind hydraulic cylinders lies in the hydraulic fluid pressure. When fluid enters a cylinder under high pressure, it forces the piston to move. This motion is what powers the loader's actions. Hydraulic fluid is pumped by a motor and sent through a system of valves to control the pressure, allowing the operator to adjust the force and direction of movement.
Fluid under pressure forces the piston to move inside the cylinder.
Operator control: Adjusting fluid flow changes the loader's movement.
Efficiency: Hydraulic pressure allows for powerful movement using relatively little energy.
This system allows a backhoe loader to perform heavy-duty tasks effortlessly and efficiently.

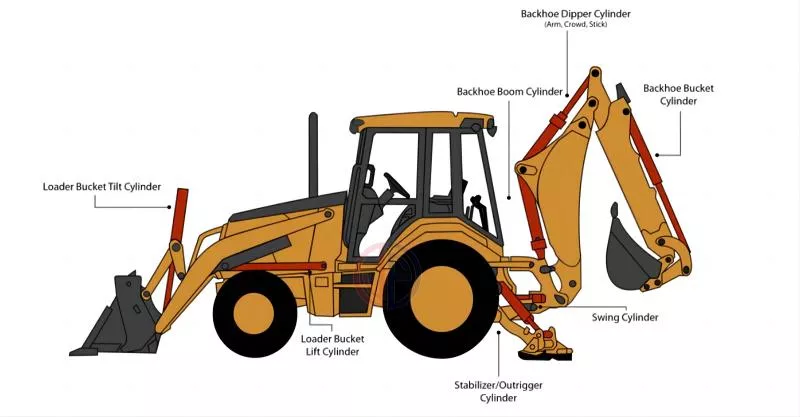

Backhoe loaders are equipped with multiple hydraulic cylinders that help perform various functions. These cylinders are designed to control and power different parts of the machine. Let's dive into the main cylinders you'll find in a backhoe loader and understand how they contribute to the machine’s operations.
These cylinders are responsible for tilting the loader bucket up and down. They are sometimes called bucket dump or curl cylinders. By adjusting the angle of the bucket, the operator can load, unload, or shift materials easily.
These cylinders control the vertical movement of the bucket. They are connected to the lift arm on one side and to the tractor on the other. This setup allows the operator to lift and lower the bucket to move materials.
Also known as outrigger cylinders, these are critical for providing stability during operation. When the backhoe is digging or lifting, the stabilizer cylinders extend to anchor the machine, ensuring it doesn’t tip over.
Located at the base of the boom, swing cylinders allow the operator to move the entire boom left or right. This movement is essential for repositioning the backhoe or digging in different directions.
The boom cylinders are responsible for angling the boom section in or out. Some backhoes use one cylinder for this function, while others have two. The cylinders allow the operator to reach higher or lower, depending on the task.
Also called arm, crowd, or stick cylinders, dipper cylinders articulate the dipper in and out. These cylinders help extend or retract the arm, giving the backhoe additional reach and versatility when digging.
These cylinders are attached to the dipper and bucket linkage. Their primary function is to curl the bucket in and out, allowing for precise movement of materials.
Found in backhoes with extendable dipper arms, these cylinders allow the dipper to extend or retract for increased reach.
These cylinders are used in backhoes equipped with specialized buckets. They enable the operator to perform additional functions, like gripping or clamping materials.
Found in older Case backhoes, these cylinders are used for hydra-leveling, which helps adjust the loader’s tilt to maintain balance.
Used in backhoes equipped with a hydraulic coupler, these cylinders allow operators to quickly change attachments, like buckets or grapples, for different tasks.
In some older backhoes, 3-point hitch cylinders are used for attaching implements like plows or mowers. These cylinders help lift and control the implements.
Part of the power steering system, these cylinders are typically found under the tractor’s front axle. They help steer the machine by moving the wheels in response to operator input.
Thumb cylinders are used in backhoes with a thumb attachment. These cylinders help grab and hold objects, making it easier to manipulate large or awkward materials.
Excavators and mini-excavators use similar hydraulic cylinders as backhoe loaders. Common cylinder types include those for the bucket, boom, dipper, swing, and track adjuster. While there are many similarities, the size and configuration of the cylinders can differ depending on the machine type.
Identifying hydraulic cylinders in your backhoe loader is crucial for proper maintenance and ensuring the equipment functions smoothly. These cylinders are essential for various tasks like lifting, tilting, and digging, so knowing how to spot them can save you time and money.
Hydraulic cylinders are easy to locate because they are typically attached to moving parts of the backhoe, such as the boom, dipper, and bucket. Here’s how you can identify them:
Look for the large metal tubes: The cylinder is often a long, cylindrical metal tube with a piston inside. The piston moves as hydraulic fluid is pumped into it.
Check the attachment points: The cylinder will be connected to the loader arm or the bucket, where the hydraulic action occurs.
Look for seals and hoses: Hydraulic cylinders have seals to prevent leaks and hoses that carry the pressurized fluid to and from the cylinder.
Positioning: Swing cylinders are near the base of the boom, while dipper cylinders are located along the arm.
Proper maintenance ensures hydraulic cylinders remain in good condition. Follow these tips to keep them functioning smoothly:
Regular inspections: Check for any visible damage, like scratches or dents, which could cause leaks.
Check the seals: Look for signs of fluid leakage around the seals, which could indicate a failure.
Fluid levels: Make sure the hydraulic fluid is at the correct level and is clean. Contaminated fluid can damage the cylinders.
Listen for unusual sounds: Any grinding, whistling, or hissing noises could signal an issue with the hydraulic system.
Lubrication: Regularly lubricate the cylinder rods to prevent wear and tear, especially in older equipment.
If you notice any of these issues, it may be time for repairs or cylinder replacement. Keep an eye on these signs to avoid costly breakdowns.
A: Hydraulic cylinders use pressurized fluid to create motion. When fluid enters the cylinder, it pushes a piston, moving the connected components like the boom, dipper, or bucket.
A: Replacing hydraulic cylinders requires technical knowledge. It’s possible, but it’s recommended to consult a professional to avoid mistakes or further damage.
A: Common signs include leaks, slow movement, unusual sounds, or a decrease in lifting capacity.
A: A typical backhoe loader can have between 6 to 10 hydraulic cylinders, depending on the model and configuration.
A: No, hydraulic cylinders vary based on their function. Different cylinders control specific parts like the boom, bucket, or stabilizers.
We’ve covered the various types of hydraulic cylinders in backhoe loaders, including bucket, boom, and swing cylinders. Understanding these cylinders and their functions is crucial for smooth operations. Regular maintenance, like checking fluid levels and inspecting seals, ensures optimal performance. Proper care can prevent costly repairs and keep your backhoe loader running efficiently.
