Hydraulic cylinders are crucial components in many industrial systems. They convert fluid pressure into linear motion to power machinery.However, when they fail, repairs are often more cost-effective than full replacements. Rebuilding a hydraulic cylinder can extend its lifespan and save significant costs.In this article, we'll guide you through the process of rebuilding hydraulic cylinders and explain why it's a great option for maintaining your equipment.
A hydraulic cylinder is a device that uses pressurized hydraulic fluid to create linear motion. It is a key component in many machines and systems that require controlled movement.Hydraulic cylinders play an essential role in transforming fluid pressure into force. This force is then used to lift, push, or move objects.
Hydraulic cylinders work by harnessing the power of pressurized fluid. When hydraulic fluid is pumped into the cylinder, it pushes against the piston inside. This pressure forces the piston to move, generating linear motion.This motion is what powers many industrial machines, from cranes to bulldozers. The force produced depends on the amount of pressure applied to the fluid and the size of the cylinder.
Hydraulic cylinders are found in various industries and machinery. They’re used in construction equipment like excavators, agricultural machines, and manufacturing machines.Here are a few examples of where hydraulic cylinders are used:
Construction: Excavators, loaders, and bulldozers all rely on hydraulic cylinders for lifting and digging.
Agriculture: Tractors and harvesters use them to operate attachments like plows and seeders.
Manufacturing: Hydraulic presses and machines in factories depend on hydraulic cylinders for precision movement.
Hydraulic cylinders come in different designs to meet specific needs. Below are some of the most common types and their applications:
A single-acting cylinder operates with a port that works in only one direction. When hydraulic fluid enters the cylinder barrel, the rod extends. To retract the rod, external forces or a load string are typically used.
Applications: Often found in hydraulic jacks used in the automotive industry.
Advantages:
Simple design.
Low initial cost.
Small housing and fewer parts.
Disadvantages:
Limited power due to the spring mechanism.
Inconsistent strokes as the spring wears out over time.

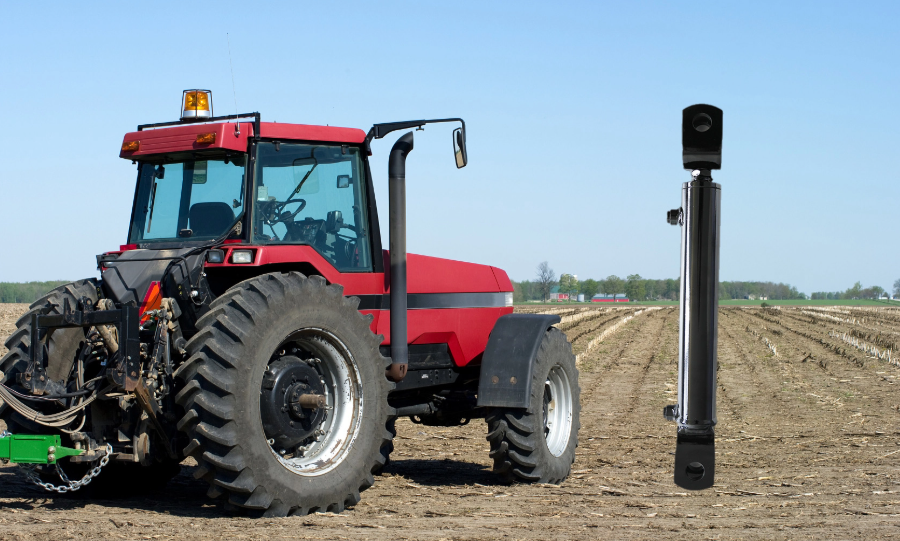

Double-acting cylinders have ports at both the rod and head ends, allowing hydraulic fluid to move in both directions. This design enables greater control over motion and is more efficient in fluid movement.When fluid moves toward the rod, the piston rod retracts. Conversely, when the fluid flows toward the head section, the piston rod extends. This versatility makes them ideal for applications requiring both pushing and pulling actions.
Applications: Often used in machinery that needs to raise and lower equipment, such as in construction or manufacturing.
Advantages:
Faster and stronger movement.
Offers bidirectional force (push and pull).
More control over the movement.
Disadvantages:
Higher cost than single-acting cylinders.
Requires larger housing due to coupling components.
Nested cylinders consist of multiple cylinders within each other, creating a system that allows for varying forces and speeds during a single stroke. These cylinders are designed to perform more complex tasks in a compact system.
Applications: Used when multiple forces and speeds are needed, such as in specific lifting or lifting-and-lowering operations.
Advantages:
Flexible force distribution and control.
Efficient for varied tasks in one stroke.
Rotating cylinders are designed to provide linear motion but also allow for rotational movement. The key difference is the distributor component that supplies fluids to the rod and head ends, enabling rotation.
Applications: Typically used in systems where both linear and rotational movement are needed.
Advantages:
Can rotate while also performing linear actions.
Ideal for applications needing both movement types.
Disadvantages:
More complex design.
Requires additional components for fluid distribution.
Low-height cylinders are compact versions of standard hydraulic cylinders. They have the same functionality but are designed for spaces where a traditional cylinder would not fit.
Applications: Used in tight spaces or where a low profile is necessary.
Advantages:
Smaller, more lightweight.
Ideal for limited space.
Disadvantages:
Limited force output.
Often only available in single-acting models.
High-tonnage cylinders are used in projects requiring substantial lifting capacity, capable of lifting over 1,000 tons. These cylinders are designed to handle extreme loads and provide stability for heavy-duty applications.
Applications: Ideal for heavy lifting tasks in industries like construction and steel manufacturing.
Advantages:
Extremely high lifting capacity.
Stability for heavy and large loads.
Disadvantages:
Expensive.
Larger and heavier than other types of cylinders.
Tie-rod cylinders feature a steel rod that stabilizes the cylinder and prevents leaks by securing end caps. These cylinders are easy to assemble and maintain, making them a popular choice for industrial and manufacturing applications.
Applications: Used in industrial machinery and equipment that requires easy maintenance.
Advantages:
Simple to repair and maintain.
Versatile and widely used in many industries.
Disadvantages:
Larger housing required for heavy-duty applications.
Rams are single-acting hydraulic cylinders that do not use a piston. Instead, they use a large-diameter rod to create force. These cylinders are commonly used for lifting and pushing heavy objects vertically or horizontally.
Applications: Used in vertical lifting tasks, such as in cranes and other lifting equipment.
Advantages:
Cheaper than conventional cylinders.
Efficient for vertical motion.
Telescopic cylinders, also known as multi-stage cylinders, have multiple tubular rods that extend sequentially. These cylinders are ideal for applications where space is limited but a long stroke is needed.
Applications: Frequently used in construction trucks, dump trucks, and agricultural equipment.
Advantages:
Space-saving design.
Can handle varying force requirements with multiple stages.
Disadvantages:
More complex design.
Requires regular maintenance due to moving parts.
Hydraulic cylinders can also be classified by their construction. Tie-rod cylinders use external steel rods to stabilize the cylinder, while welded cylinders have the barrel welded directly to the end caps.
Tie-Rod Cylinders: Used in lighter-duty applications, they have a tie-rod structure for easy assembly.
Welded Cylinders: Stronger and more durable, ideal for heavy-duty machinery.
Each hydraulic cylinder type serves a unique purpose and offers specific benefits for different applications. Choosing the right cylinder depends on the requirements of the task at hand.
Rebuilding a hydraulic cylinder requires specific tools and equipment to ensure the job is done correctly. The right tools will help make the process efficient and minimize the risk of errors.
To get started, you'll need the basic tools commonly used in hydraulic cylinder repair:
Wrenches and screwdrivers – These are crucial for loosening and tightening bolts and screws.
Torque wrenches – These tools help ensure that components like end caps are tightened to the correct specification.
Seal kits – These are essential for replacing worn seals and O-rings to avoid leaks.
Rubber mallet and punch – For safely tapping parts without causing damage.
Having these essential tools at hand will set the foundation for a successful rebuild.
The type of hydraulic cylinder you're working on might require additional or specialized tools:
Threaded head cylinders – You'll need tools like a set screw driver and end cap remover for disassembly. A seal installation tool is also critical to ensure proper fitting of O-rings.
Wire ring cylinders – This type requires a wire ring removal tool and a plastic removal ring to extract the rod assembly properly.
Each cylinder type comes with its own set of challenges, so be prepared with the right tools to match.
When working on hydraulic cylinders, safety is a top priority. Here’s how you can prepare:
Safety gloves and goggles – Protect your hands and eyes from debris and hydraulic fluid.
Workstation – Set up a clean and organized workspace. A hydraulic repair bench will ensure stability and precision when working on components.
Hydraulic fluid disposal container – Always have a container for used fluid to prevent spills and contamination.
These precautions not only ensure your safety but also contribute to the cleanliness and quality of your work.
Disassembling a hydraulic cylinder is the first crucial step in the rebuilding process. Follow these steps to do it correctly.
Disconnect hoses – Start by disconnecting the hoses from the cylinder. Be sure to plug the openings to prevent dirt from entering.
Drain hydraulic fluid – Open the cylinder ports to drain out any remaining hydraulic fluid.
Remove set screws and end caps – Once the fluid is drained, remove the set screws and any end caps holding the internal parts in place.
Take out gland and rod assembly – Carefully remove the gland and rod assembly from the cylinder housing.
These steps will allow you to safely access the internal parts of the hydraulic cylinder for further inspection and repair.
Before you continue with the rebuild, cleaning is essential:
Clean cylinder housing – Use a clean cloth to wipe down the inside of the cylinder housing to remove dirt and debris.
Inspect seals – Take the time to clean the seals and inspect them closely for wear. Replacing old seals with new ones is a must for a successful rebuild.
A clean workspace and clean components will ensure that no contamination interferes with the assembly process.
During disassembly, it’s crucial to check each part for damage. Here's how:
Check seals – Look for any cracks, tears, or excessive wear. Damaged seals should be replaced immediately.
Inspect rods – Examine the rods for any bends or pitting. If the rod is damaged beyond repair, consider replacing it.
Examine the cylinder bore – Look for any scoring or wear inside the cylinder barrel. Any significant damage here may require reconditioning or replacement of the barrel.
Thorough inspection ensures that only the damaged components are replaced, saving both time and money.
Rebuilding a threaded head hydraulic cylinder requires careful attention to detail. Follow these steps to ensure a successful rebuild and maintain the cylinder's performance.
Before starting the rebuild, you’ll need to drain the hydraulic fluid. This is essential to prevent spills and ensure that no fluid remains inside the cylinder. Once the fluid is drained, clean the cylinder housing and remove any hoses attached to avoid contamination during the rebuild.
Now, focus on disassembling the cylinder. Start by removing the set screw that holds the end cap in place. After that, take off the end cap and the rod assembly. Each of these parts plays a crucial role in holding the internal components securely:
Set screw: It ensures the end cap remains tightly in place during operation.
End cap: This part seals the cylinder and prevents fluid leakage.
Rod assembly: It is responsible for transferring the hydraulic force needed for movement.
Removing these parts properly is key to accessing the internal components for the rebuild.
Once the cylinder is disassembled, focus on replacing the O-rings and seals. These parts are essential for maintaining the cylinder’s performance and preventing hydraulic fluid from leaking.
Why replacing seals is crucial: Worn or damaged seals can lead to leaks, reducing the cylinder's efficiency and potentially causing system failure.
How to lubricate new seals: Before installing new seals, lubricate them with clean hydraulic fluid. This helps them slide into place smoothly and ensures a proper fit.
Taking the time to replace these seals will extend the life of the hydraulic cylinder and improve its performance.
After replacing the seals, it’s time to reassemble the rod assembly. Carefully align the parts, ensuring that everything fits together properly. Make sure the end cap and gland are in the correct positions. Tighten all parts using a torque wrench to the manufacturer’s specified torque.Proper alignment and torque ensure that the rod assembly functions smoothly and effectively when reinstalled.
Once the cylinder is reassembled, it’s time to reinstall it into the hydraulic system. Reconnect the hoses securely to the cylinder ports. After that, perform a test by pressurizing the system and checking for leaks.Testing the system helps confirm that everything is correctly assembled and that the cylinder operates as it should.
Rebuilding a wire ring hydraulic cylinder can be more complex than a threaded head cylinder, but following these steps will help ensure a smooth and effective rebuild.
Start by retracting the rod fully into the cylinder. Once the rod is retracted, you'll need to remove the **wire ring**. This ring secures the internal components, so be sure to handle it carefully to avoid any damage.
Wire ring removal tool – Helps safely take off the wire ring.
Punch and mallet – To gently tap the wire ring free from its groove.
Plastic removal ring – A special tool used to extract the rod assembly from the housing.
These tools are necessary to ensure the wire ring is removed safely, without damaging any parts.
Once the wire ring is removed, inspect the internal parts. Focus on the O-rings and **seals**. Over time, these parts wear out and can cause leaks, which is why replacement is crucial.
Replacing seals: Carefully remove the old seals, ensuring the grooves inside the cylinder are clean and free of debris. New seals should fit snugly into these grooves.
Handling the special plastic removal ring: This ring is important during disassembly and reassembly. After removing the seals, use the plastic ring to help lift the rod assembly out of the cylinder housing.
Properly replacing the seals and O-rings ensures the cylinder functions smoothly and efficiently once reassembled.
Now that the seals and O-rings are replaced, it’s time to reassemble the cylinder. Start by carefully positioning the rod assembly back into the cylinder housing.
Proper reinstallation of all parts: Make sure the wire ring is installed correctly after reassembling the internal components. The wire ring holds everything securely in place, preventing parts from slipping or moving during operation.
Take extra care to ensure that all parts are aligned properly to avoid future issues.
Before completing the reassembly, lubricate the new seals and O-rings with fresh hydraulic fluid. This lubrication helps ensure smooth movement of the parts during operation and prevents premature wear.
Smooth reassembly tips: Use a rubber mallet or gentle force to reassemble the rod assembly, ensuring everything fits without forcing any components in place.
Taking these steps will help prevent future issues, such as leaks or binding in the cylinder. Once everything is lubricated and reassembled, you’re ready for reinstallation.
Hydraulic cylinders are key components in many machines, and keeping them in good shape is crucial. Over time, the seals and O-rings inside the cylinder may wear out, leading to issues like oil leaks and difficulty in movement. Repacking the cylinder helps restore its performance.
Here are a few signs to watch for:
Increased oil leaks: If you notice more hydraulic fluid than usual leaking around the seals, it’s time for a repack.
Difficulty in movement: A cylinder that’s harder to move or doesn’t lift as easily could be losing its sealing efficiency.
Decreased performance: If your machinery is operating at reduced capacity, the cylinder might be the cause.
Regularly repacking a cylinder can prevent these problems and keep the equipment running smoothly.
Repacking your hydraulic cylinders provides several advantages:
Preventing further damage: It stops wear and tear from getting worse, protecting other components.
Improving performance: Fresh seals and O-rings help the cylinder work efficiently, improving the overall function of the machine.
Taking the time to repack your cylinders will save you from costly repairs down the line.
Repacking a hydraulic cylinder requires the right tools to ensure a smooth and safe process. Here's what you'll need:
Seal kit: This is the most essential item for replacing the seals and O-rings.
Mallet: For gentle tapping without damaging the parts.
Wrenches and screwdrivers: To remove and tighten various bolts and screws.
Torque wrench: To ensure parts are tightened to the correct specifications.
Pliers and punch: To remove old seals and other small components.
Before you start, make sure the cylinder is clean:
Drain hydraulic fluid: Remove any remaining fluid to prevent spills and contamination.
Clean the cylinder: Wipe down the cylinder housing and remove any debris that could affect the rebuild.
A clean workspace is essential for a successful repack.
Follow these steps carefully to repack your hydraulic cylinder.
Before starting, make sure to release any remaining pressure inside the cylinder:
Open the cylinder’s ports and let any trapped fluid or air escape.
Move the rod through its full stroke to expel air from both sides of the piston.
This ensures you’re working with no pressure inside the cylinder, preventing accidents.
Once the pressure is released, start by removing the old seals:
Use a seal removal tool or plastic scraper to gently take off the worn seals and O-rings.
Inspect the grooves to ensure there’s no damage from wear, as this could affect the new seals.
Now, install the new seals and O-rings:
Make sure the new seals are the right size and fit snugly into their grooves.
Lubricate the seals lightly with clean hydraulic fluid before installation to prevent damage during reassembly.
Proper seal installation ensures a tight fit and prevents leaks.
Reassemble the cylinder by carefully putting all parts back into place:
Align the rod, gland, and other components.
Use a torque wrench to tighten the bolts to the specified torque.
Be sure everything is aligned correctly to avoid malfunctions during operation.
Finally, test the cylinder to ensure it’s working properly:
Reconnect the cylinder to the system and pressurize it.
Check for leaks around the seals by inspecting all joints and connections.
If there are no leaks and the cylinder moves smoothly, you’ve successfully repacked it.
Rebuilding a hydraulic cylinder can be tricky. It's easy to make mistakes, but avoiding these common errors will help ensure your rebuild is successful.
One of the biggest mistakes you can make is reusing old seals. Worn or damaged seals can lead to leaks, reducing the cylinder’s performance and causing unnecessary wear on other parts. Always replace the seals when rebuilding the cylinder.
Consequences of reusing old seals: Old seals don’t create a proper seal and can lead to leakage. This not only wastes hydraulic fluid but can also cause the system to malfunction, leading to expensive repairs.
Cleaning the components of the cylinder is crucial. Contaminants like dirt, dust, or old seal fragments can cause damage to the cylinder’s internal parts, leading to further issues down the line.
How contaminants can damage the cylinder: If debris gets inside the cylinder, it can scratch or score the barrel and piston, leading to leaks and reduced efficiency. It’s essential to clean all components before reassembling.
Incorrectly assembling the parts of the hydraulic cylinder is another common mistake. It’s vital to follow the correct sequence and ensure that each component is placed in the right position.
Importance of following the right sequence and torque specifications: If parts aren’t aligned properly, or if bolts aren’t torqued to the correct specifications, it can cause leaks or improper operation. Always use a torque wrench and follow the manufacturer’s instructions for assembly.
Many people skip the visual inspection step, but it’s one of the most important parts of the rebuilding process. A quick check can help identify damaged or worn components that need replacement before reassembly.
Why checking all components before reassembly is crucial: A thorough inspection can help catch issues like cracks, bent rods, or worn seals that could cause problems later. Taking the time to inspect everything will save you headaches in the long run.
Avoiding these common mistakes will not only make your rebuild more successful but also extend the life of your hydraulic system.
Taking care of your hydraulic cylinders is essential to keep them running smoothly and avoid costly repairs. Regular maintenance not only extends their lifespan but also ensures your machinery operates efficiently.
Make it a habit to inspect your hydraulic cylinders regularly. You should check them for any signs of leaks, wear, or damage. Inspecting every few months is generally recommended, but it can vary based on the machine's usage.
How often to inspect cylinders: A good rule of thumb is to inspect your cylinders every 3-6 months, especially if they are under heavy use. Pay close attention to areas where seals are located.
Hydraulic fluid is the lifeblood of your cylinder, and maintaining the proper levels and quality is key to its performance.
Importance of maintaining proper hydraulic fluid levels: Low fluid levels or contaminated fluid can cause overheating, increased friction, and possible cylinder failure. Make sure to regularly check fluid levels and top off as needed.
Ensuring the right type of fluid: Using the correct hydraulic fluid for your cylinder type and operating environment helps keep everything running smoothly and minimizes wear.
Seals and O-rings play a vital role in preventing leaks and keeping the system pressurized. Regular inspection and care of these parts are crucial.
How to maintain seals and prevent leaks: Ensure seals and O-rings are not cracked, worn, or damaged. Replace them during routine maintenance to prevent leaks that can reduce the cylinder's efficiency and cause system failure.
Preventative maintenance can help avoid unnecessary breakdowns and costly repairs, saving you time and money in the long run.
Choosing the right hydraulic fluid is essential for your cylinder’s health. Always use fluid that is compatible with the seals and the operating conditions of your machinery.
Compatibility between fluid and seals: Using the wrong fluid can damage seals, leading to leaks and decreased efficiency. Be sure the fluid you use is compatible with the seal materials.
Ensure the cylinder is used within its rated pressure and load limits. Overloading or exceeding pressure limits can cause severe damage to the cylinder and surrounding components.
Ensuring the cylinder is used within the correct pressure and load limits: Always follow the manufacturer’s guidelines for pressure and load capacities. Regularly monitoring these limits can help prevent over-stress on the hydraulic system and avoid premature wear or failure.
Rebuilding or repacking a hydraulic cylinder offers significant benefits. It saves costs, restores performance, and extends equipment life.However, some repairs may be beyond your skill level. In such cases, seeking professional help ensures the job is done right.For expert hydraulic cylinder repair services, contact Shandong Junfu Hydraulic Technology Co., Ltd. for assistance and maintenance support.
A: The time required depends on the cylinder’s condition and type, but typically it takes a few hours to a full day.
A: It’s possible, but using the right tools ensures efficiency and reduces the risk of damaging parts.
A: Yes, always replace O-rings and seals to prevent leaks and ensure optimal performance.
A: The cost varies based on the cylinder type and extent of damage, but it’s generally more affordable than buying a new one.
A: Rebuilding saves costs, restores performance, and extends the life of the equipment.
A: Yes, if properly rebuilt with new seals and components, it can meet or exceed original performance standards.
