UMB
JUNFU
|

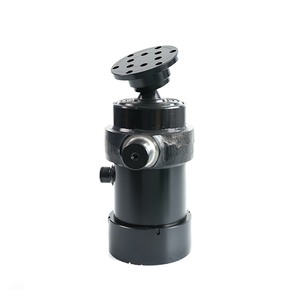

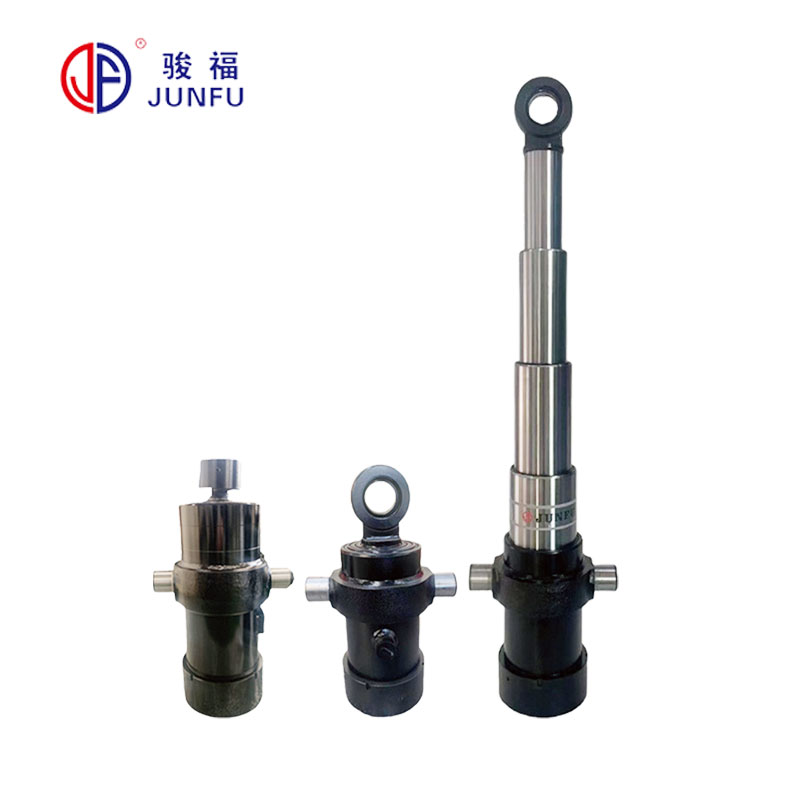

Product Description
1）rated pressure:220bar，Abrasion resistant even in harsh environments
2）fast tipping speed，Interchangeable with most underbody cylinders
3）Superior stop rings and sealing，Easy maintenance

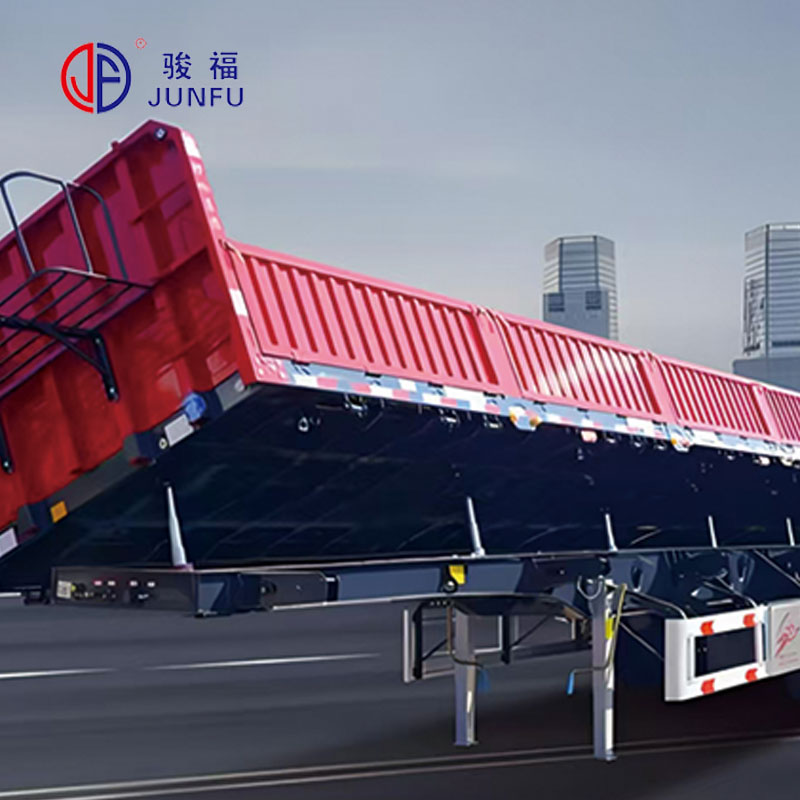

4）For side or rear tipping，Available in ball and eye version
5）Can be mounted in nearly any tipper，high lifting force
6）all stages hard chrome，stroke ranges from 50 to 200cm
|
Company Profile
Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.2）This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management
|

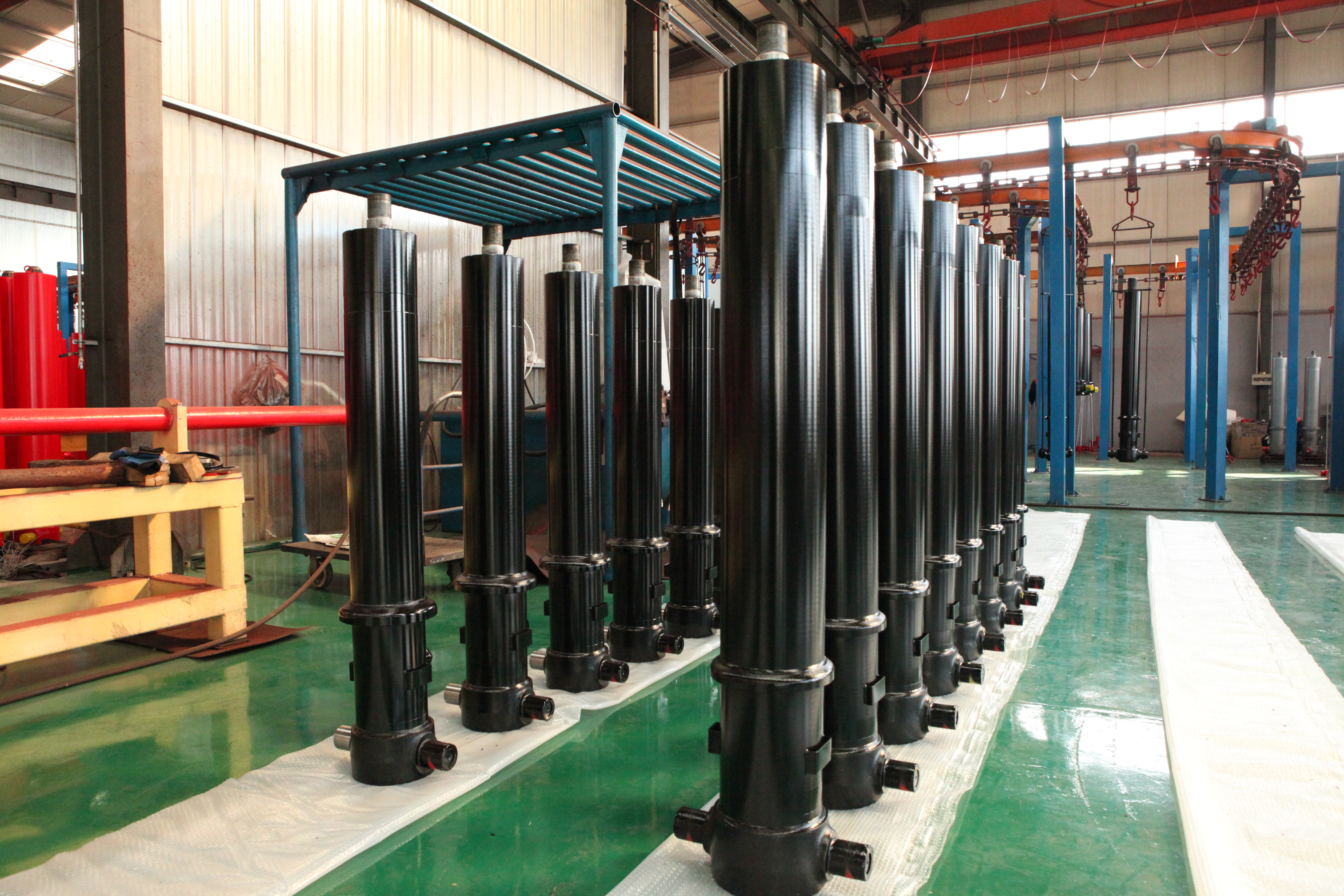

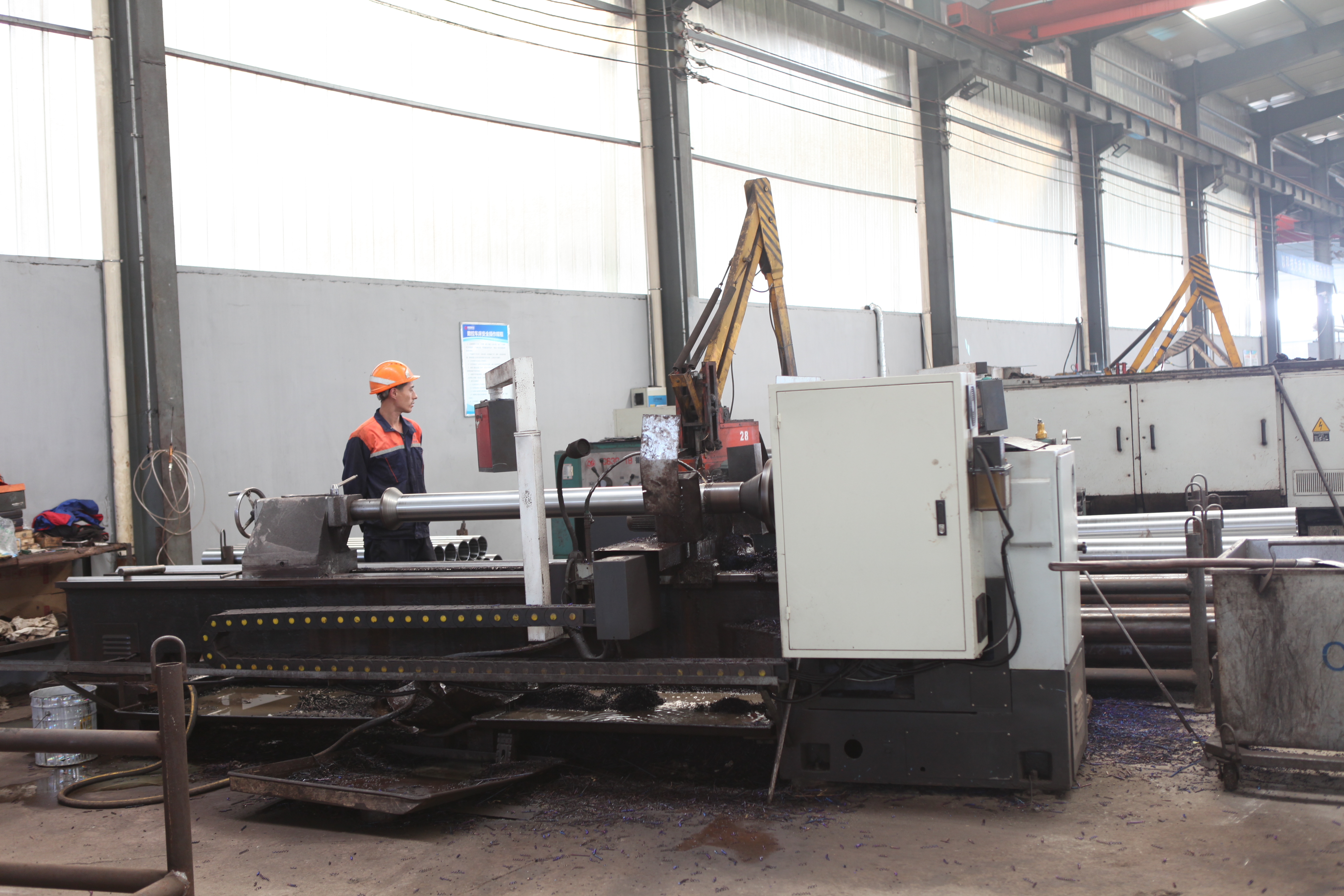

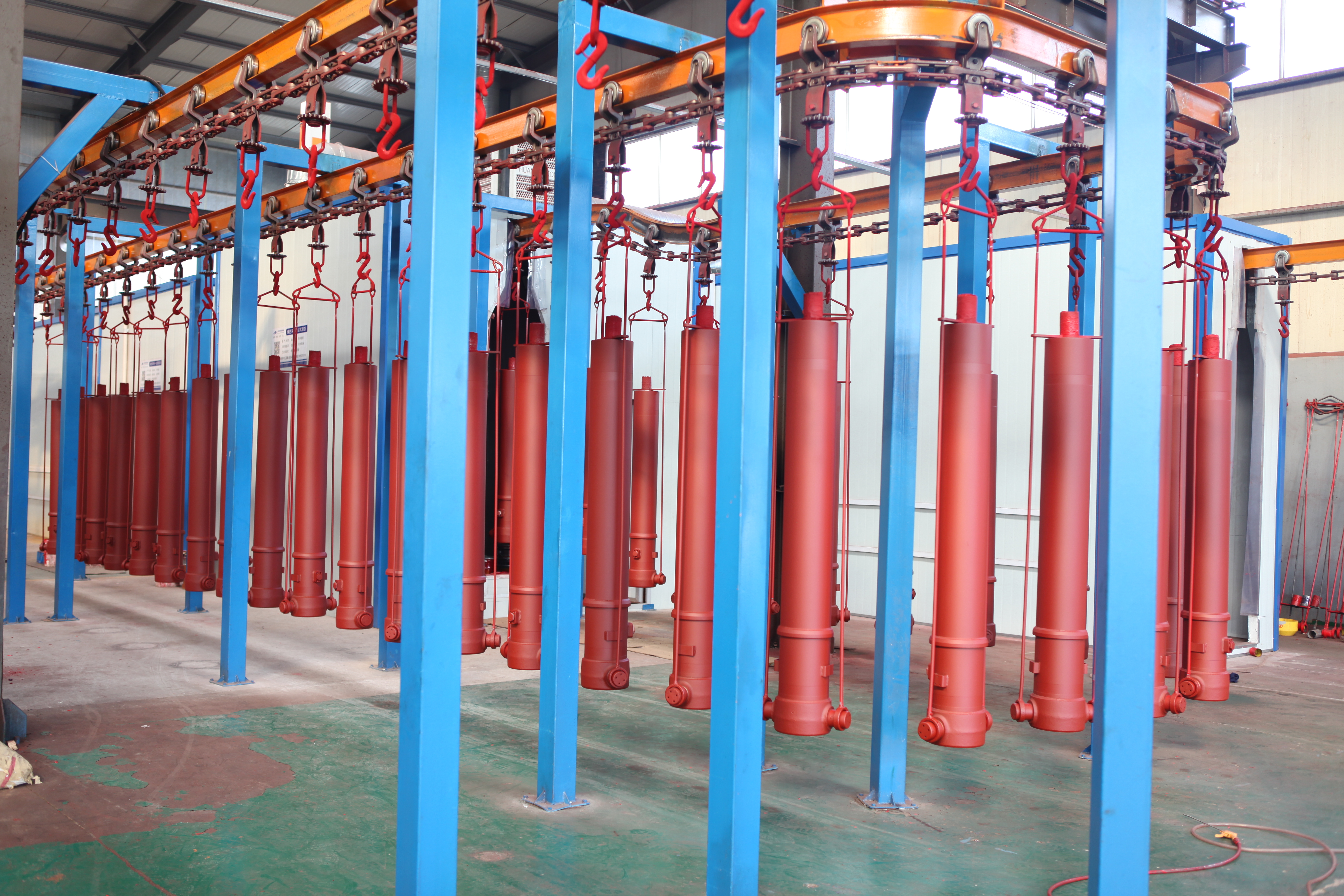

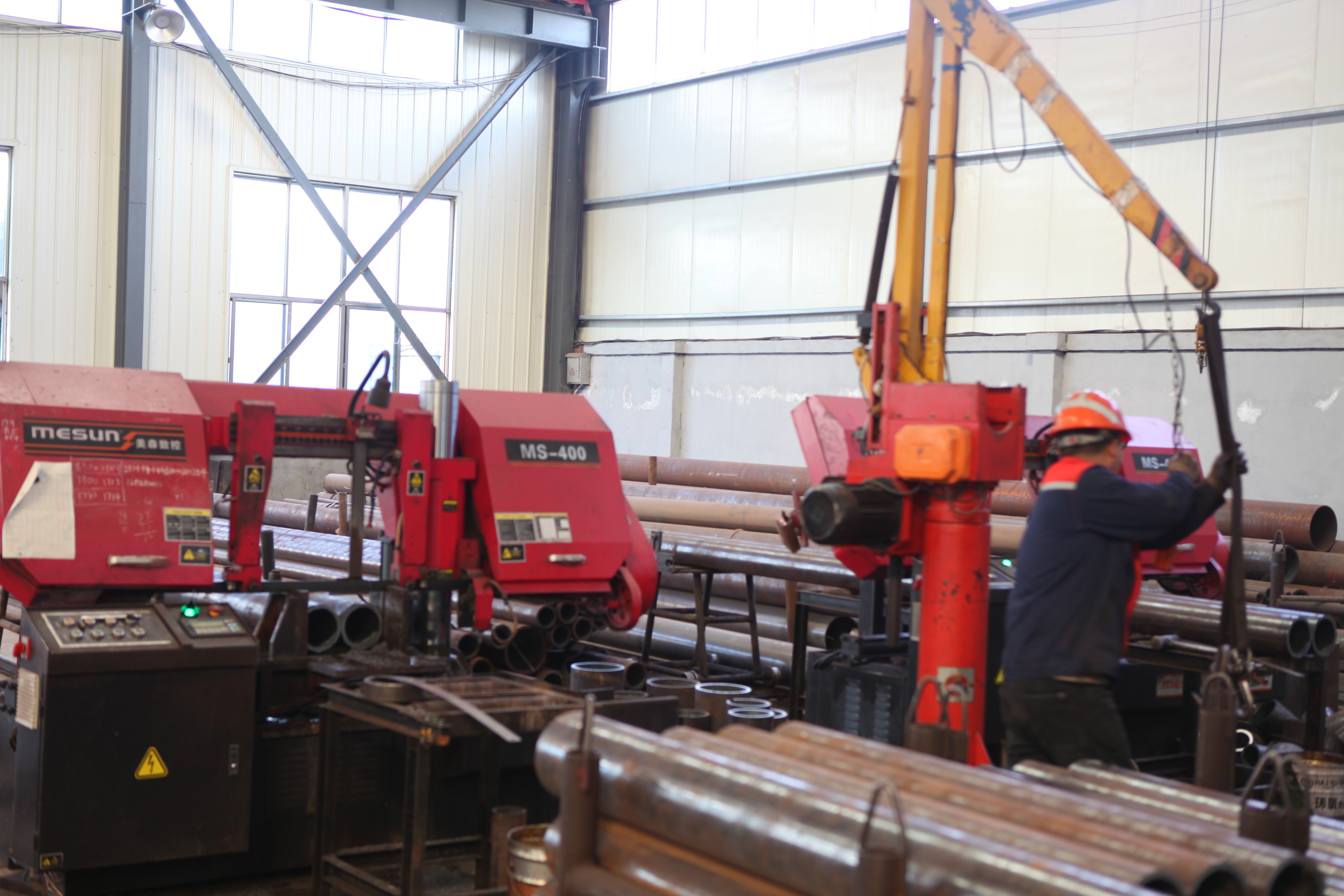

Production Process
|
Certifications
|

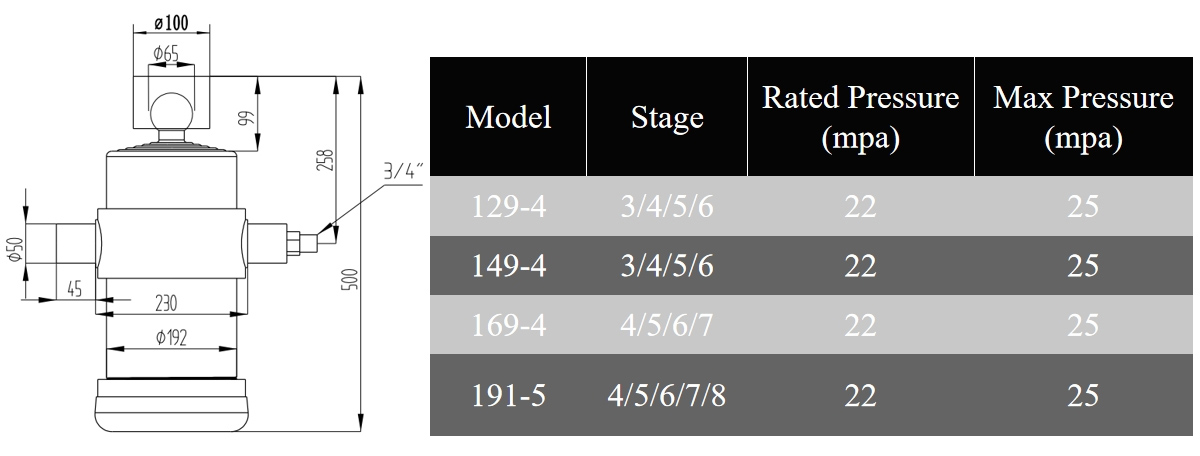

Data Sheet
Description | Pressure (bar) | Tipping weight (ton) | Weight (kg.) | Volume (l) | Max thrust 1 st stage (ton) | G (mm) | I (mm) | K (mm) | S (mm) |
ULE077-2-0410-K135-40-½“-HC | 190 | 6-10 | 13 | 1.8 | 8 | 42 | 240 | 135 | 245 |
ULE 077-2-0610-K135-40-½“-HC | 190 | 6-9 | 16 | 2.7 | 8 | 502 | 340 | 135 | 343 |
ULE 077-2-0770-K135-40-½“-HC | 190 | 6-9 | 18 | 3.4 | 8 | 582 | 420 | 135 | 423 |
ULE 077-3-0745-K130-40-½“-HC | 190 | 4-9 | 17 | 2.7 | 8 | 435 | 280 | 130 | 284 |
ULE 077-3-0925-K130-40-½“-HC | 190 | 3-9 | 20 | 3.3 | 8 | 495 | 340 | 130 | 343 |
ULE 077-3-1045-K130-40-½“-HC | 190 | 3-9 | 22 | 3.7 | 8 | 535 | 380 | 130 | 383 |
|
Our Partner
|
Customer Cases
|
Product Description
1）rated pressure:220bar，Abrasion resistant even in harsh environments
2）fast tipping speed，Interchangeable with most underbody cylinders
3）Superior stop rings and sealing，Easy maintenance
4）For side or rear tipping，Available in ball and eye version
5）Can be mounted in nearly any tipper，high lifting force
6）all stages hard chrome，stroke ranges from 50 to 200cm
|
Company Profile
Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.2）This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management
|
Production Process
|
Certifications
|
Data Sheet
Description | Pressure (bar) | Tipping weight (ton) | Weight (kg.) | Volume (l) | Max thrust 1 st stage (ton) | G (mm) | I (mm) | K (mm) | S (mm) |
ULE077-2-0410-K135-40-½“-HC | 190 | 6-10 | 13 | 1.8 | 8 | 42 | 240 | 135 | 245 |
ULE 077-2-0610-K135-40-½“-HC | 190 | 6-9 | 16 | 2.7 | 8 | 502 | 340 | 135 | 343 |
ULE 077-2-0770-K135-40-½“-HC | 190 | 6-9 | 18 | 3.4 | 8 | 582 | 420 | 135 | 423 |
ULE 077-3-0745-K130-40-½“-HC | 190 | 4-9 | 17 | 2.7 | 8 | 435 | 280 | 130 | 284 |
ULE 077-3-0925-K130-40-½“-HC | 190 | 3-9 | 20 | 3.3 | 8 | 495 | 340 | 130 | 343 |
ULE 077-3-1045-K130-40-½“-HC | 190 | 3-9 | 22 | 3.7 | 8 | 535 | 380 | 130 | 383 |
|
Our Partner
|
Customer Cases

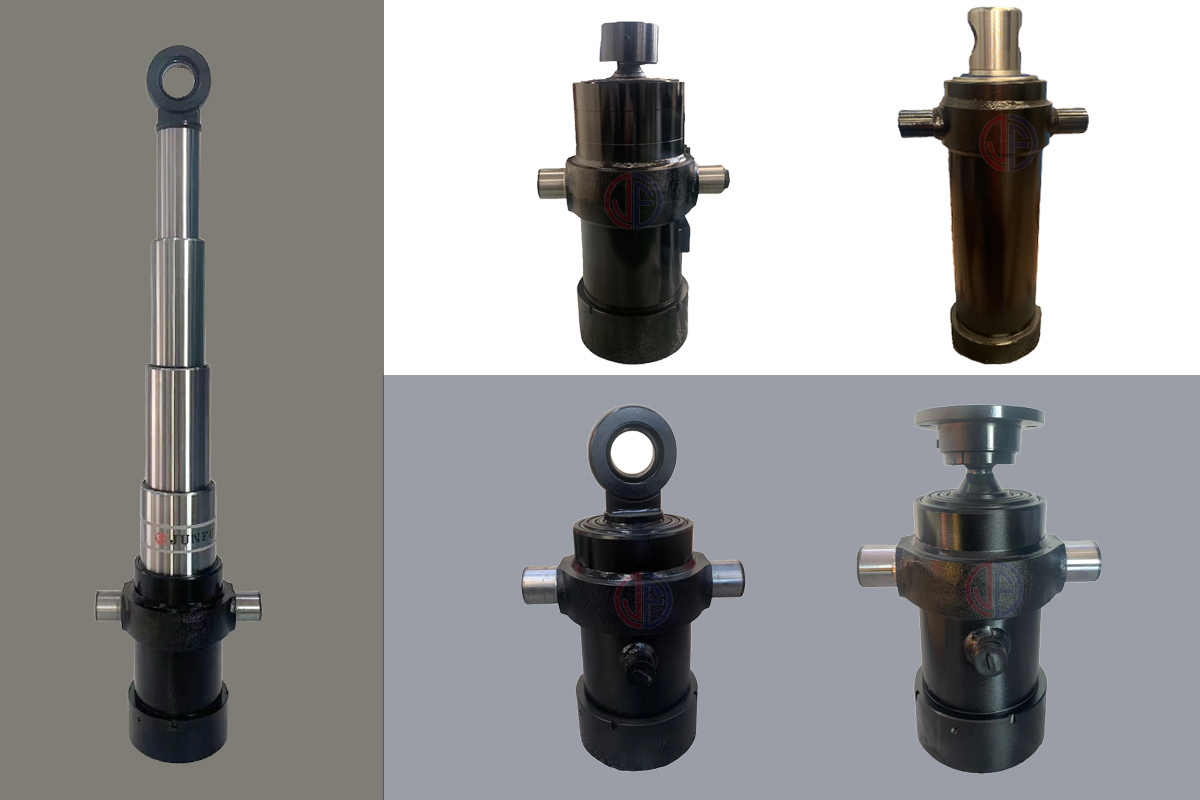

| UNDERBODY CYLINDER FEATURE | |
| rated pressure:220bar | Abrasion resistant even in harsh environments |
| fast tipping speed | Interchangeable with most underbody cylinders |
| Superior stop rings and sealing | Easy maintenance |
| For side or rear tipping | Available in ball and eye version |
| Can be mounted in nearly any tipper | high lifting force |
| all stages hard chrome | stroke ranges from 50 to 200cm |
| UNDERBODY CYLINDER FEATURE | |
| rated pressure:220bar | Abrasion resistant even in harsh environments |
| fast tipping speed | Interchangeable with most underbody cylinders |
| Superior stop rings and sealing | Easy maintenance |
| For side or rear tipping | Available in ball and eye version |
| Can be mounted in nearly any tipper | high lifting force |
| all stages hard chrome | stroke ranges from 50 to 200cm |
