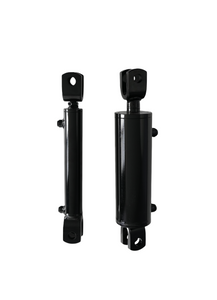

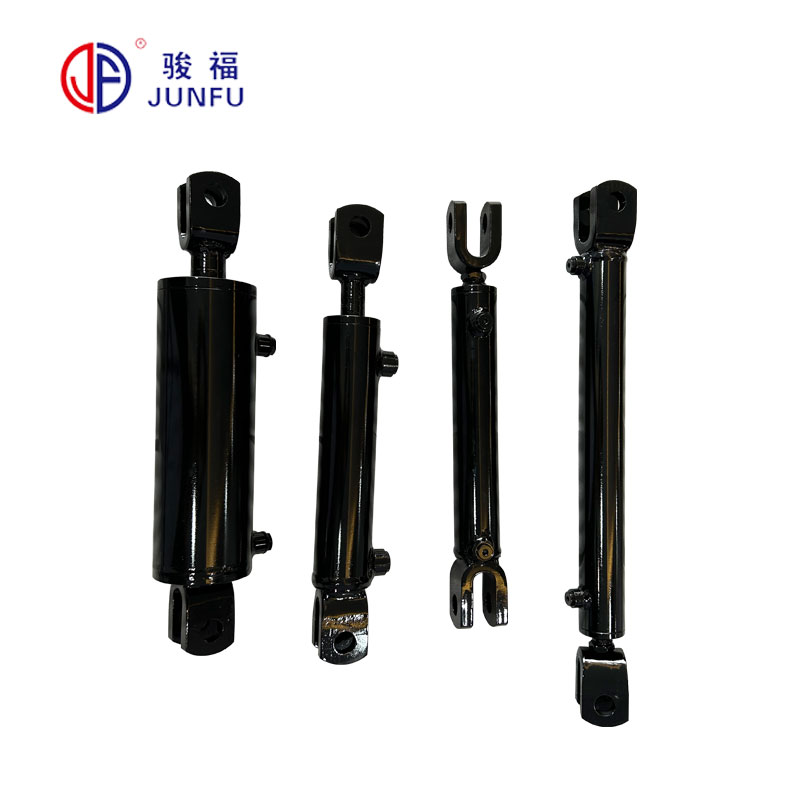

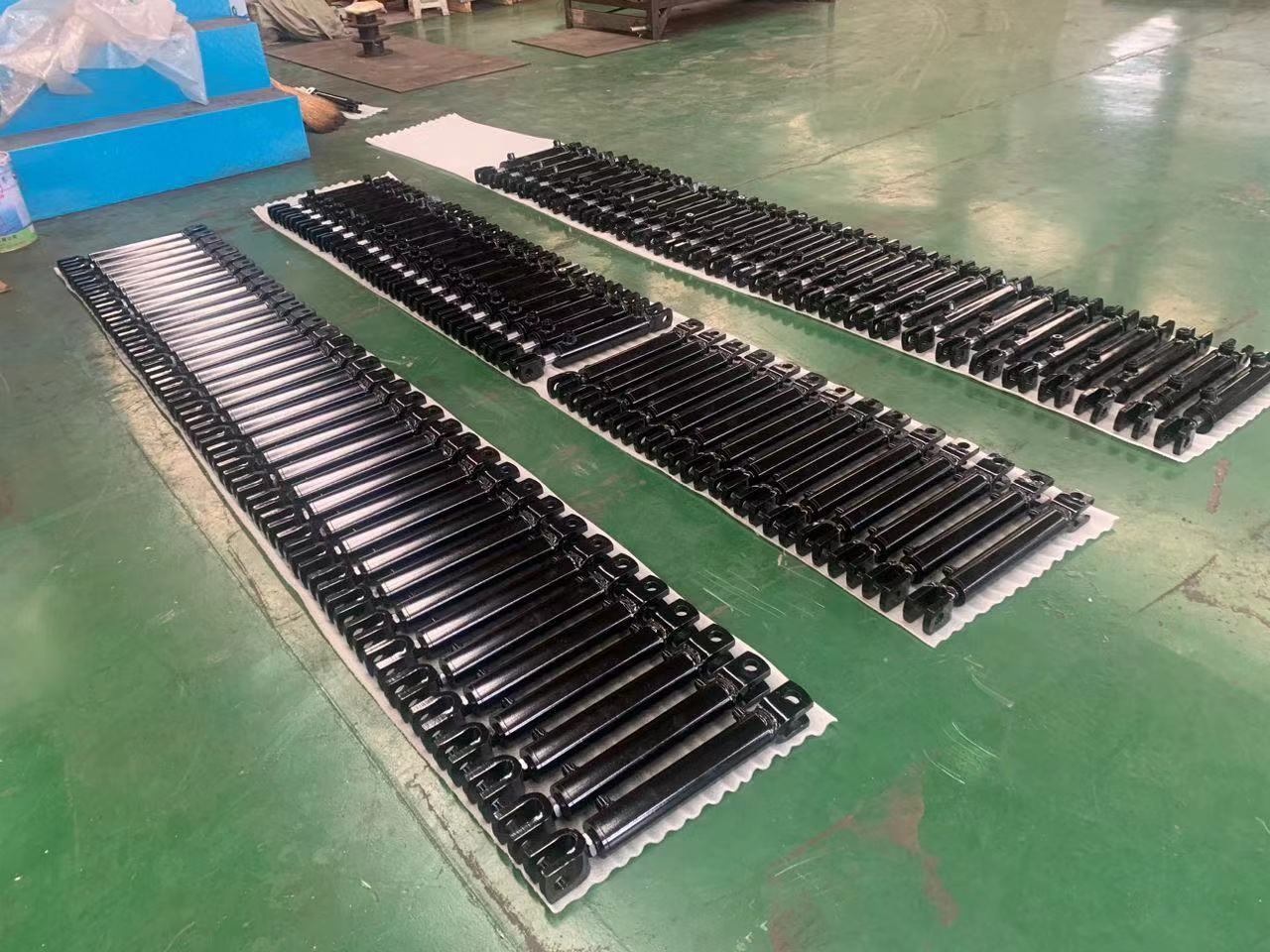

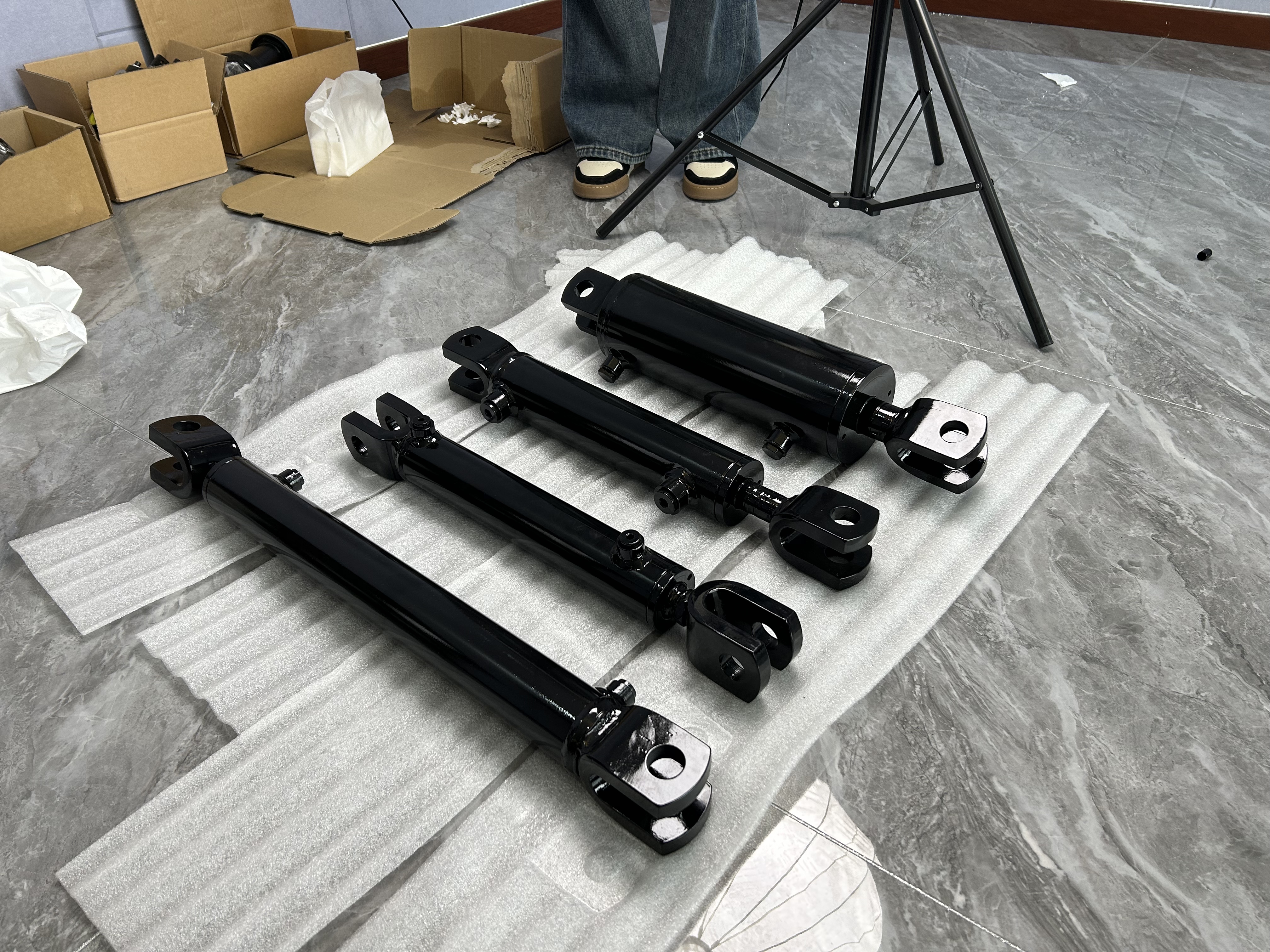

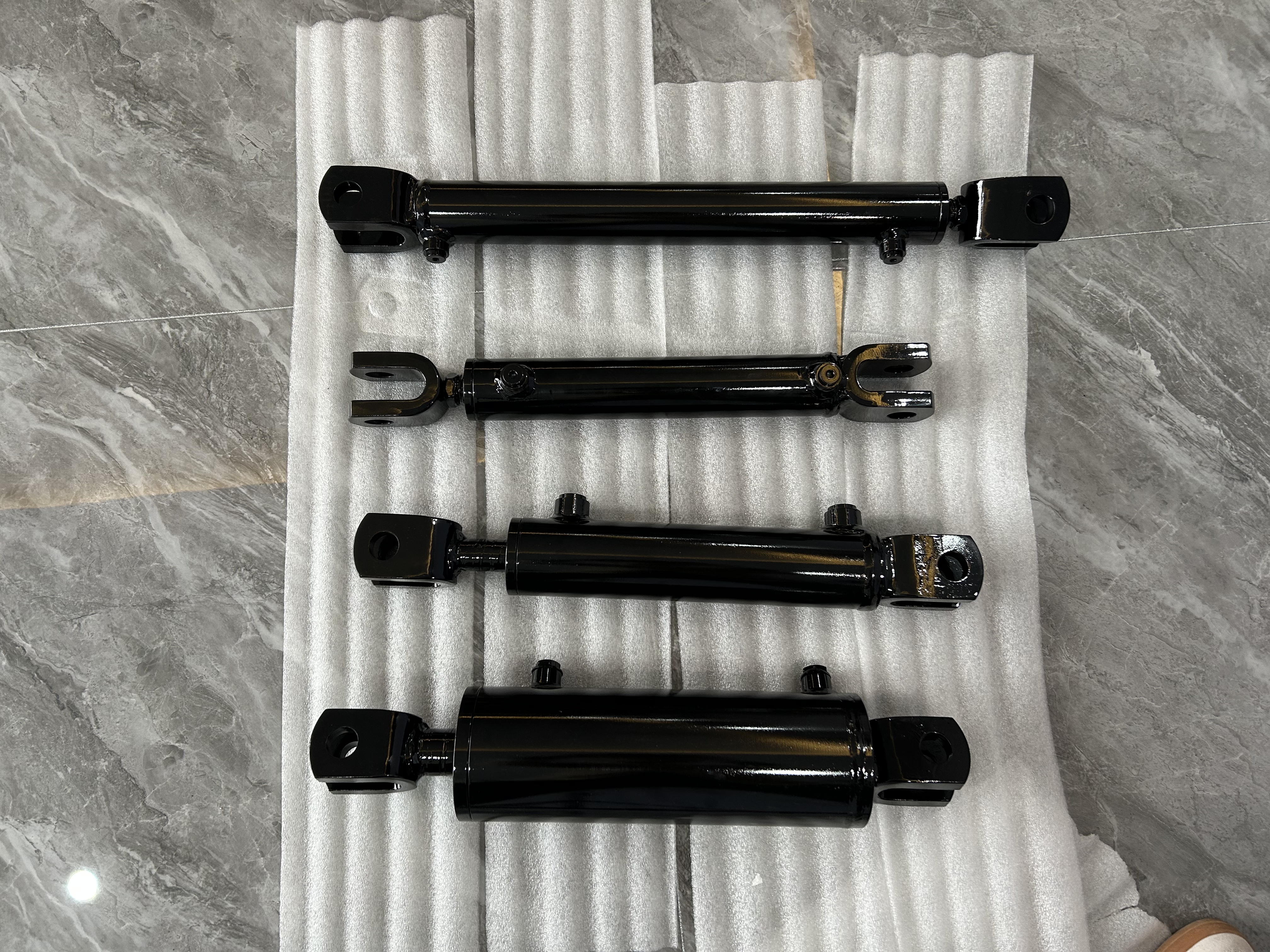

Agricultural Machinery Cylinder
|
Product Description
This series of cylinders including 14 kinds cylinder bore diameters, is a single piston double-acting differential oil cylinder based on four types of speed ratios consist of 28 specifications. In addition, three types of cylinder head flange, intermediate pin mounting and tripod installation type can also be made into double piston rods cylinder, plus the unreasonable cushion and the two-ends with cushions and the above 28 specifications consist of 384 kinds hydraulic cylinders. It is particularly suitable for industrial departments such as steel, casting, forging, and mechanical manufacturing in a bad environment and heavy load working conditions.
|

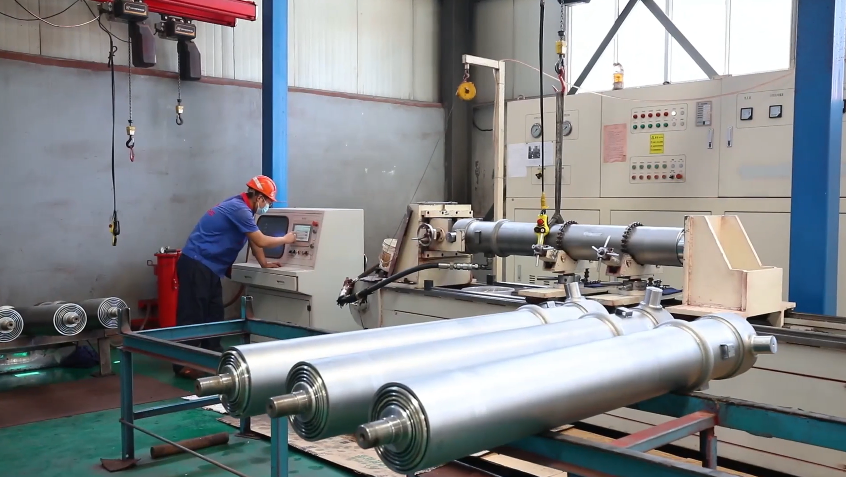

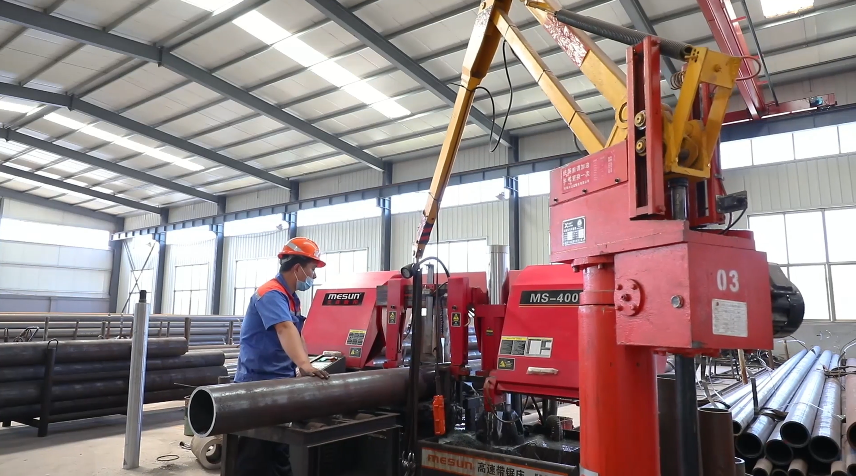

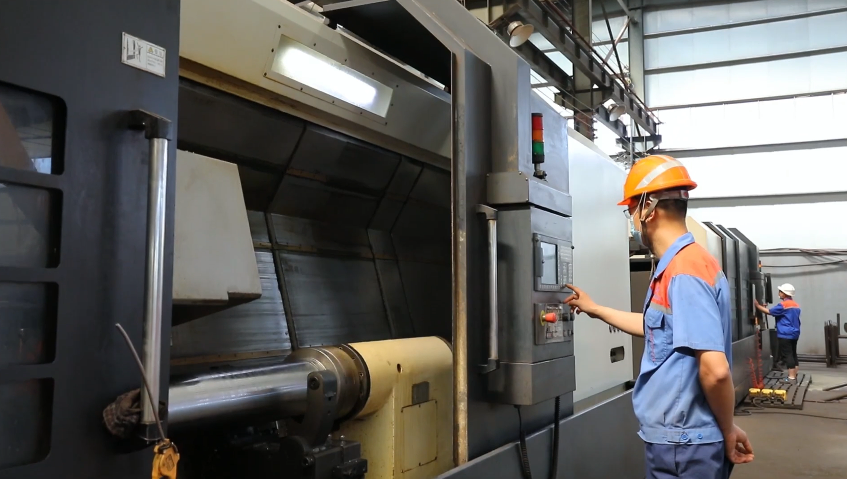

Production Process
|
Certifications
Hydraulic Cylinder Technique Parameter |
Way of action | Double acting /Single acting |
Pressure level/Mpa | 0-16MPa | 16-21MPa | 21-25MPa | 25-40MPa |
Cylinder D. range | Φ40~Φ1500mm |
Travel range | 0~≤15m |
Ambient temperature | -20℃~+80℃， +80℃~+350℃ |
Work medium | Anti-wear hydraulic oil, Water glycol fire resistant hydraulic oil |
Cylinder head form | Extermalthread connection, Internal card key connection, Flangeconnection |
Installation form | Earring connection, Pin connection, Flange connection |
Q1: How about the quality?
Our cylinders can replace HYVA cylinder well, with similar qualityand mounting sizes
Q2: What's your cylinder's advantages ? The cylinders are manufactured by advanced equipments and made under strictly quality control processing.
The steel is tempered and all raw materials are good quality from world famous companies.
Competitive price!
Q3: When your company be established ? Our company be established in 2002, professional manufacturer of hydraulic cylinders more than 20 years.
We had passed IATF 16949:2016 Quality control system, ISO9001, CE.
Q4: How about the delivery time ? according to the order quantity.
Q5: How about the cylinder's quality gurantee ? One year.
