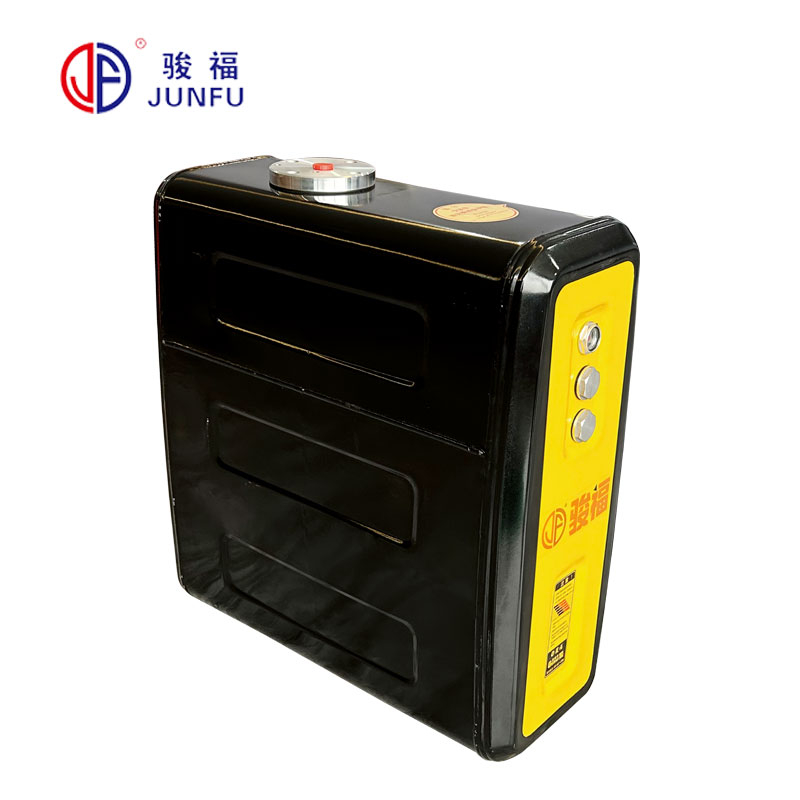

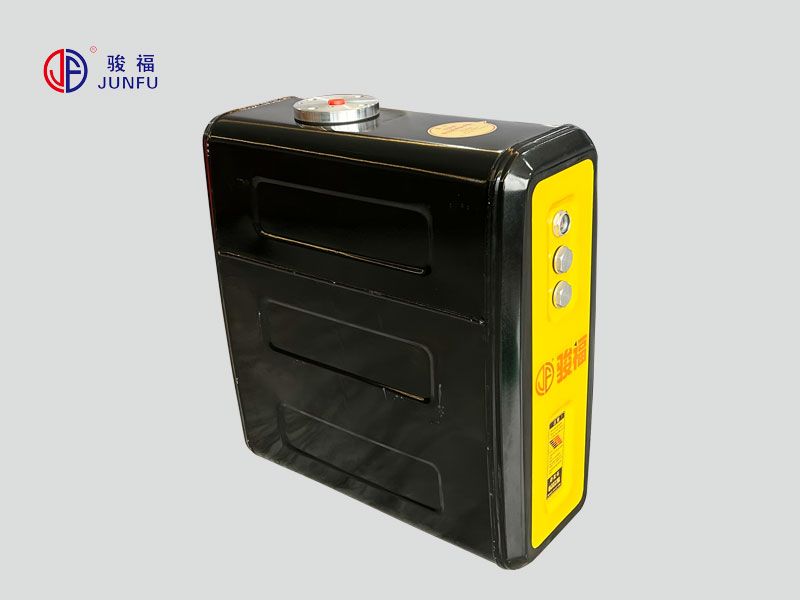

Dump Truck European Style Tanks

|

 Product Description

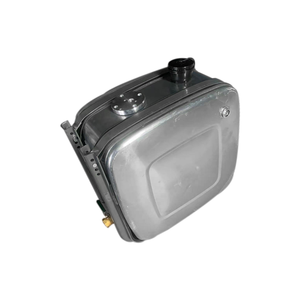

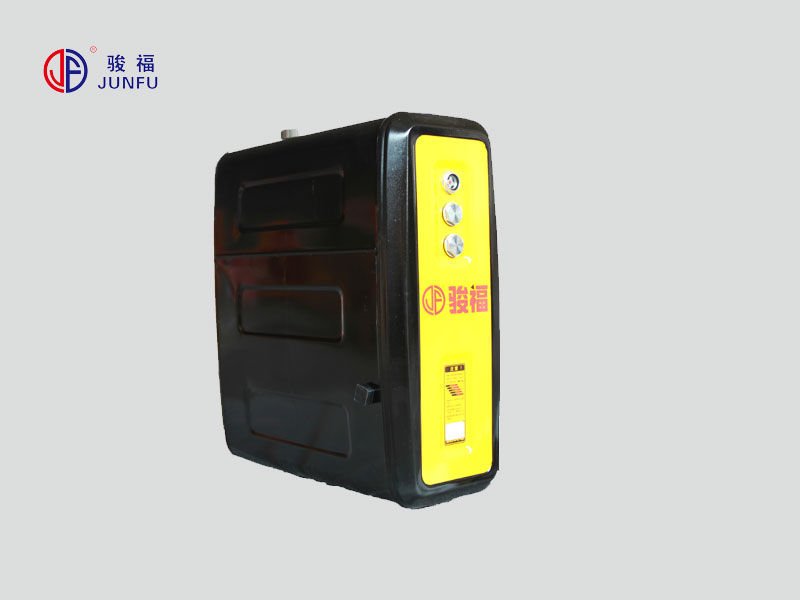

1）This series of oil tanks are rear mounted oil tank.

2）Suitable for dump trucks, truck cranes, mining trucks and other models.

3 ) Compared with the traditional structure, the oil tank hasthe ·advantages of high structural strength and beautiful.

4) Among them JF 01 series oil tanks are made ofaluminum alloy and carbon steel.

|

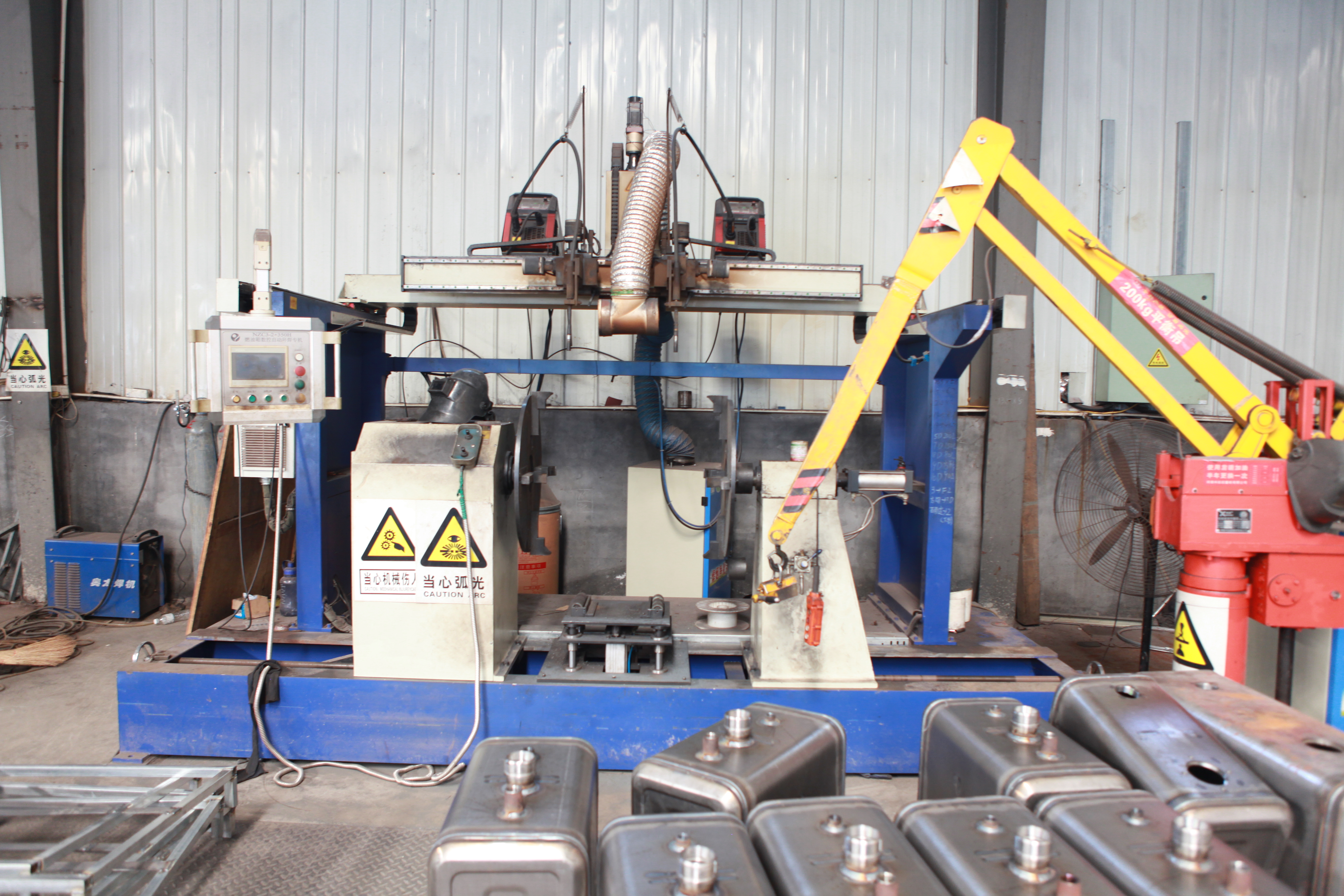

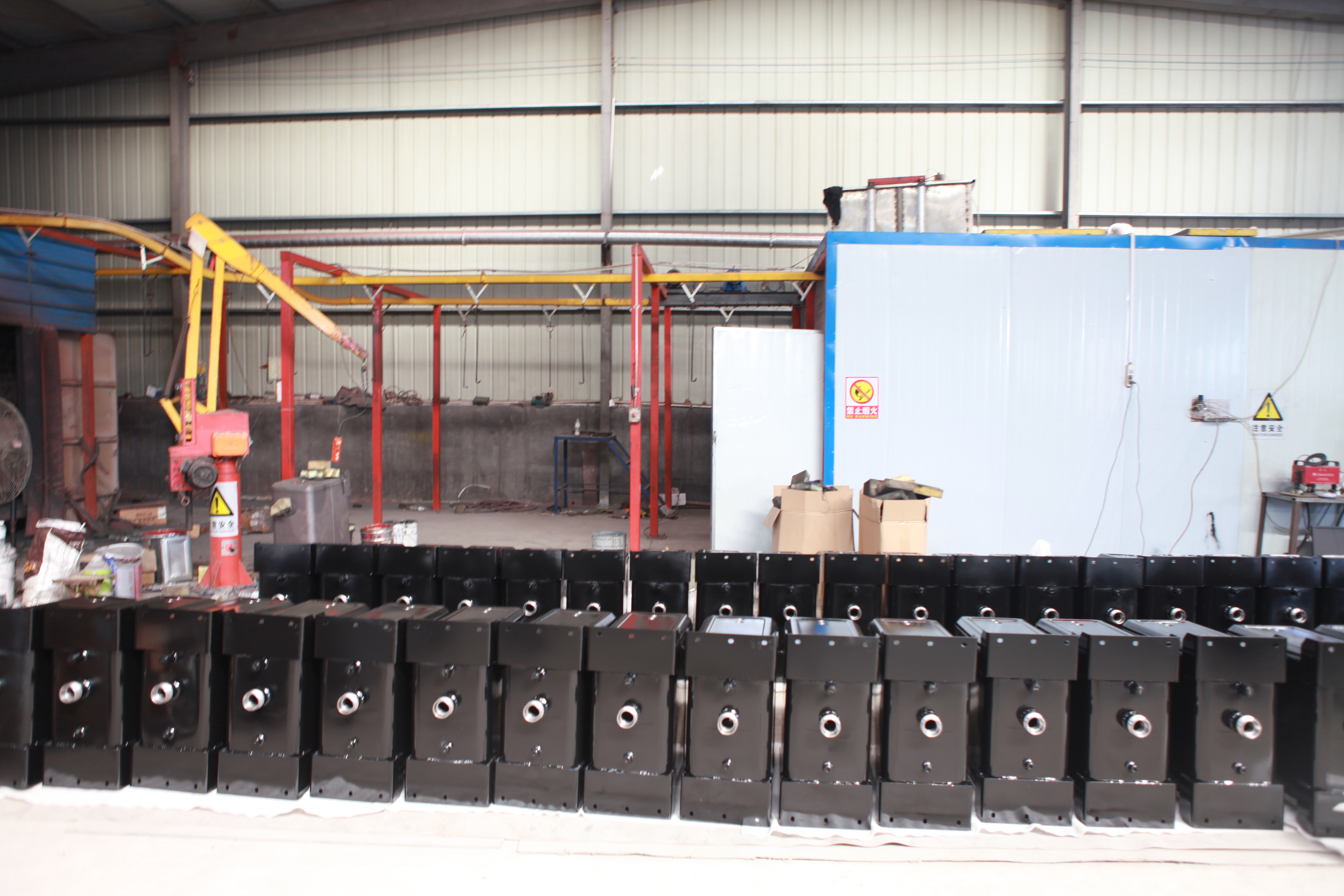

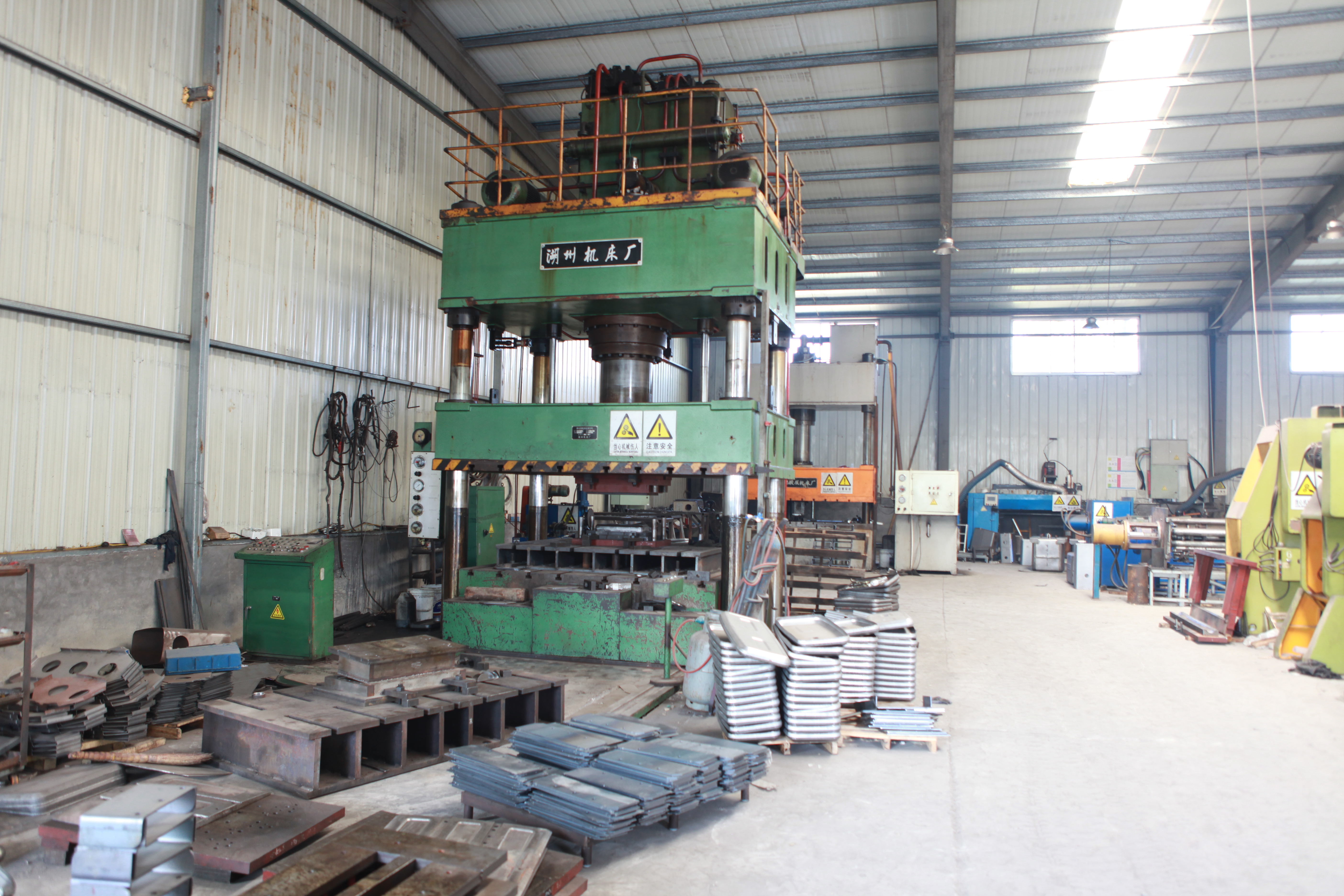

 Production Process

|

 Certifications

|Data Sheet

NO	Part no	Volume (L)	Size (mm)	Thickness (mm)	Feature
1	JFF0380600	80	280*500*600	2.0	1、Equipped with the filter house. 2、Fixed by the strap&rubber 3、Oil port is G11/2’’ 4、Returm oil filter is integrated 5、Color:Customized
2	JFF03100630	100	280*700*630	2.0
3	JFF03120670	120	280*700*670	2.0
4	JFF03150860	150	280*700*860	2.0
5	JFF03180840	180	340*700*840	2.5

|
