Product Description

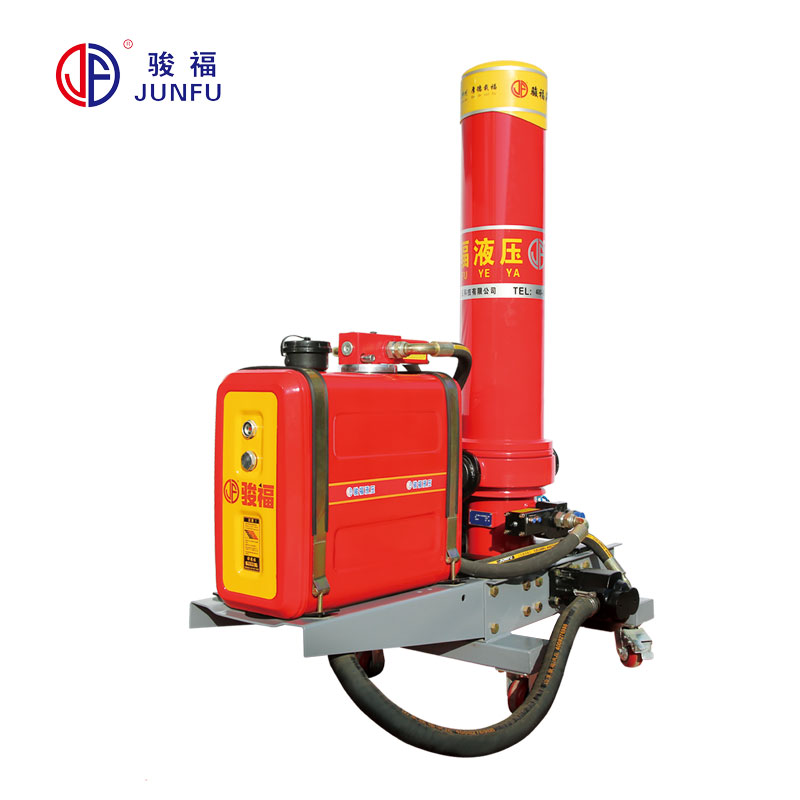

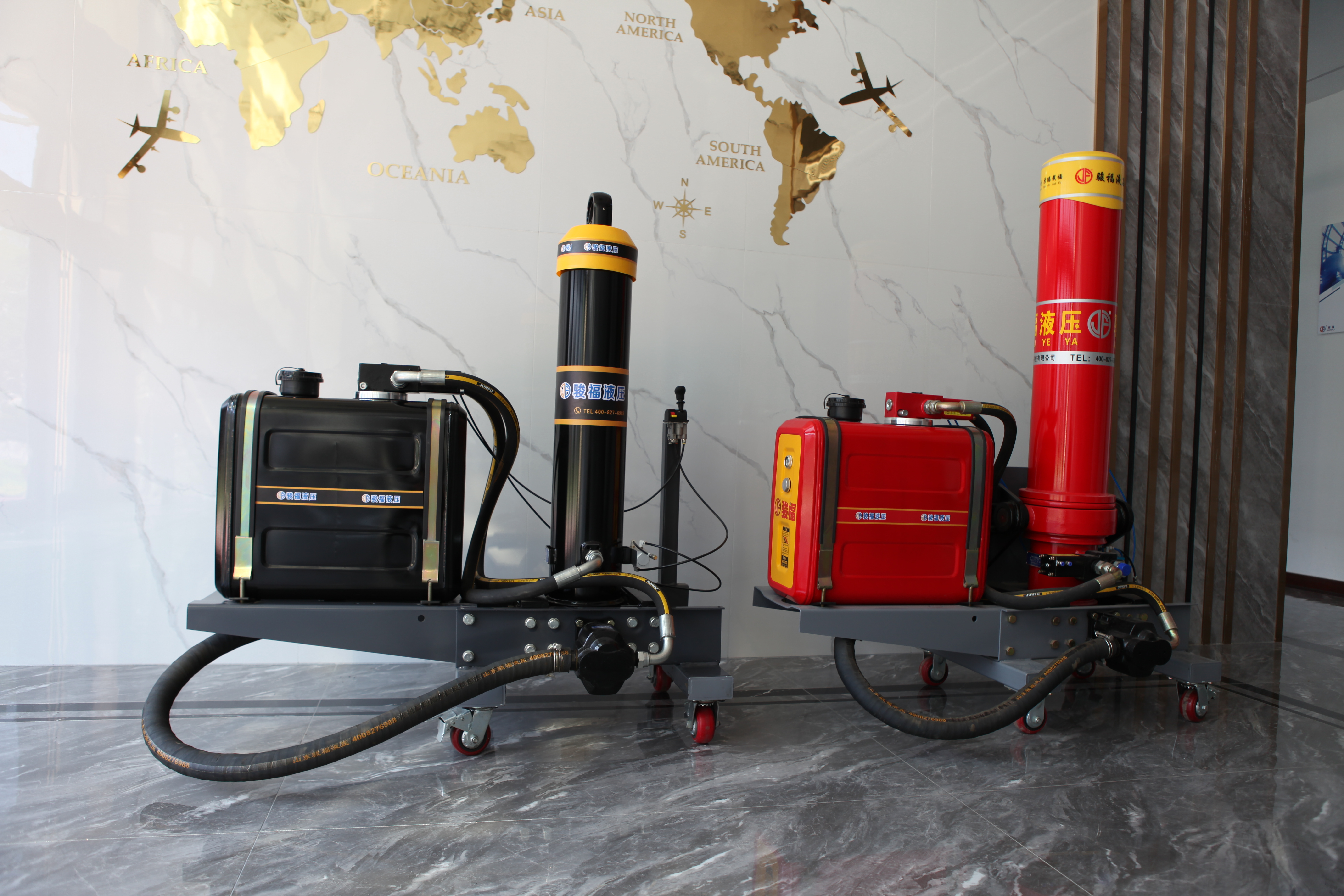

JUNFU Alpha Series is a complete kit– cylinder and wetkit – deliveringmaximum performance atminimum weight and with theshortest possible tipping cycle.JUNFU hydraulic systems are acollection of high-quality, durablecomponents that will work withevery type of truck and are able tomeet the toughest applications.All our systems go throughextensive lab testing on both,the component and completesolution levels before they leavethe factory
|
Product Packaging
|
Company Profile
Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.2）This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

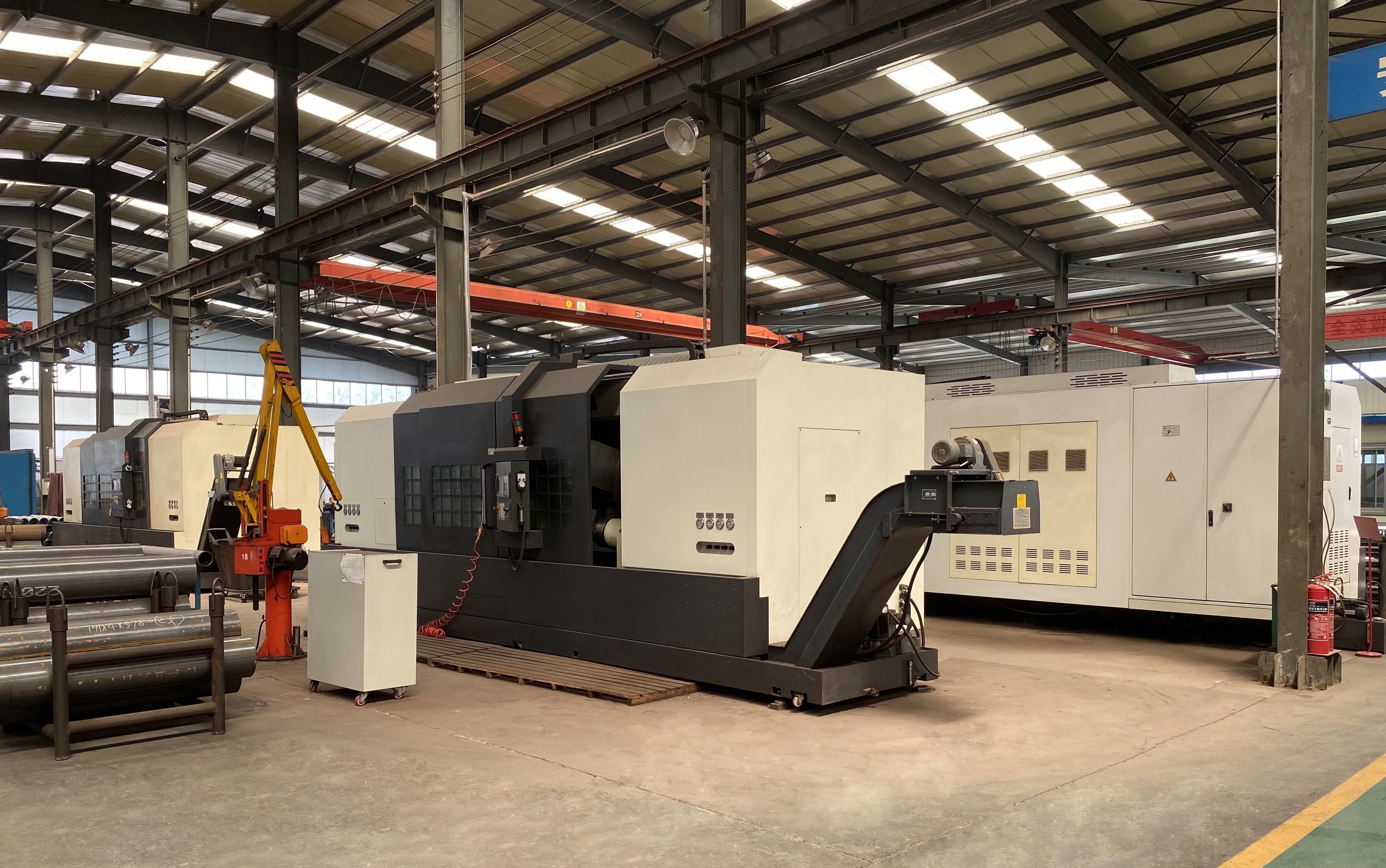

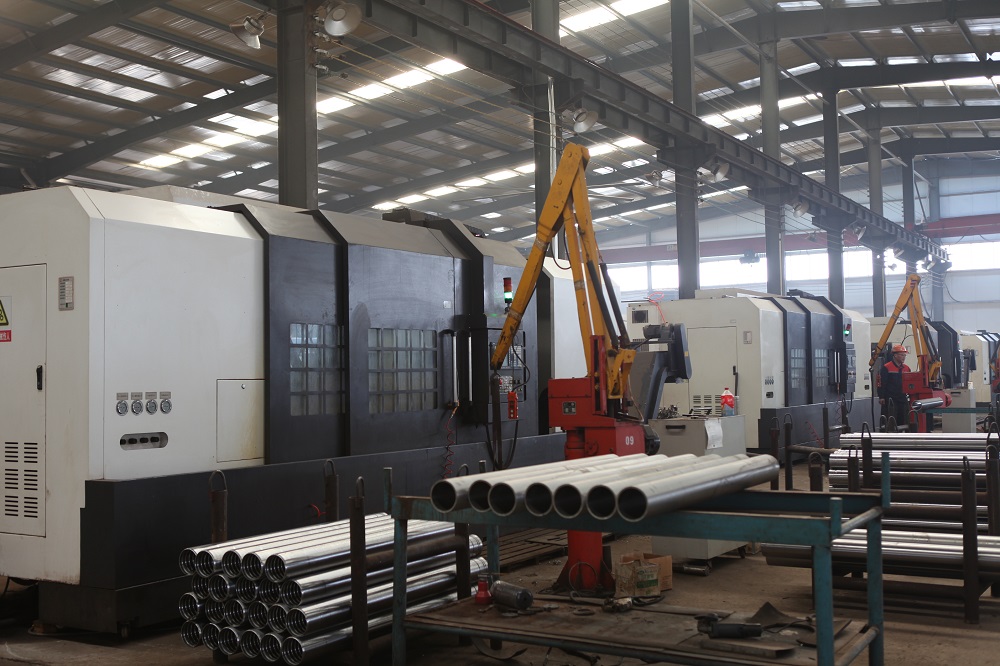

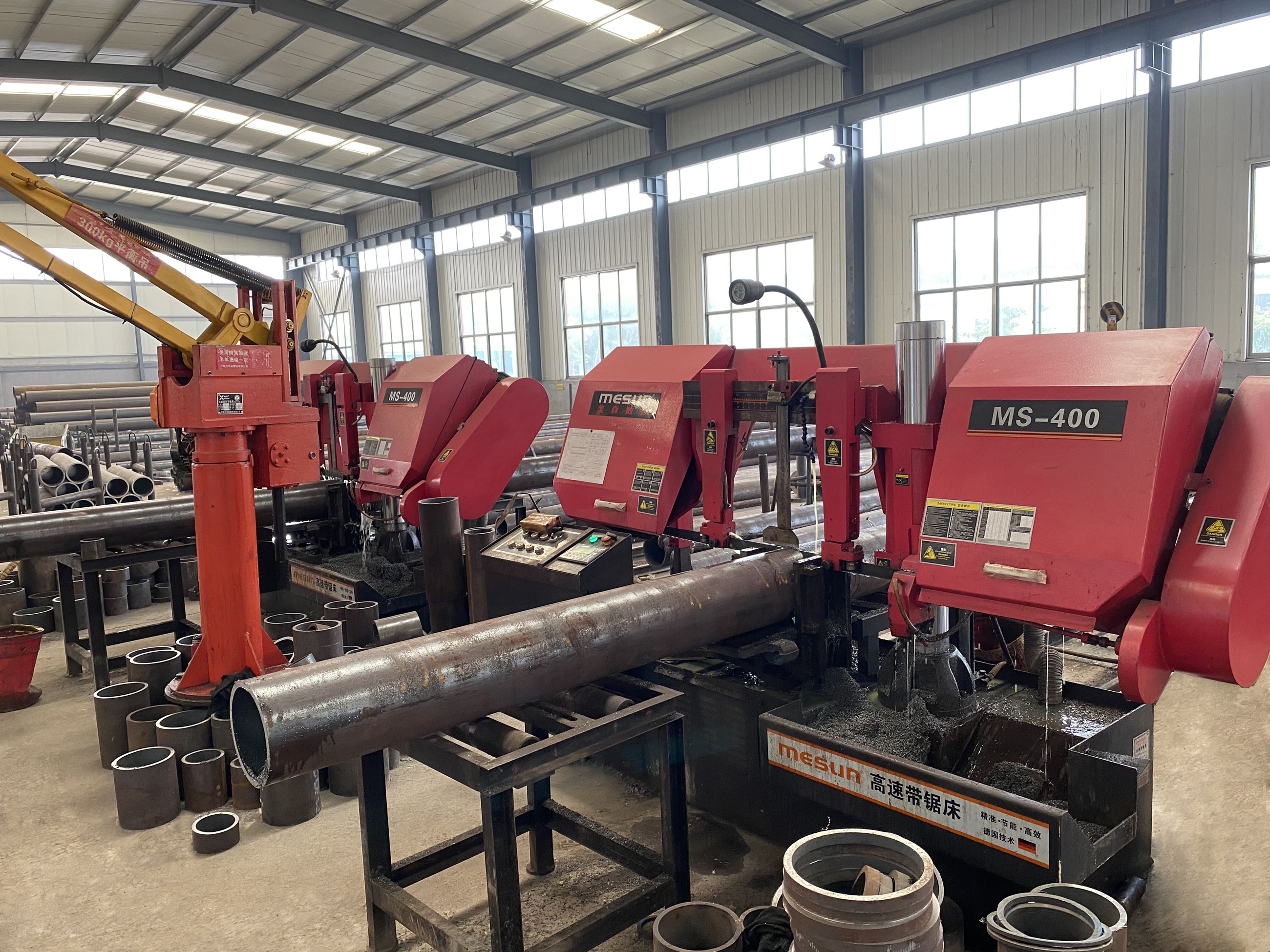

We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management.
|

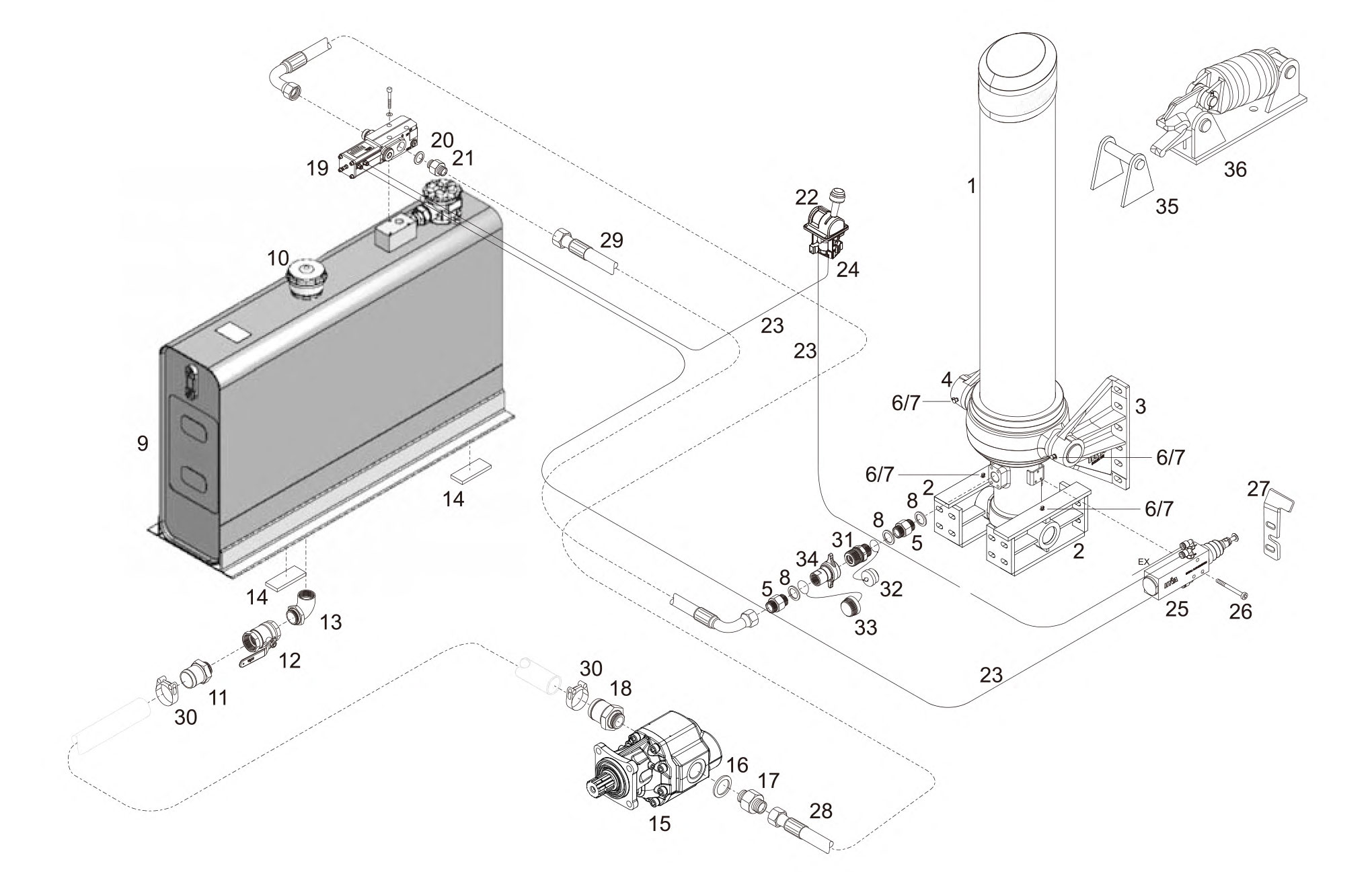

Data Sheet
Pos. | Description | Qty. | Pos. | Description | Qty. |
Cylinder kit consisting of | Tipping valve kit consisting of | ||||
1 | FC A202-5-06800-009-K0343-HC | 1 | 19 | Tip valve HT-TNK-1220-190-LC | 1 |
2 | Chassis bracket 202 | 2 | 20 | Bonded seal 1" | 1 |
3 | Lifting bracket L202 | 1 | 21 | Adapter HP 00 1"bspotc x 1"bspotc | 1 |
4 | Lifting bracket R202 | 1 | Tip control kit consisting of | ||
5 | Adapter HP00 1"bspotc x 1"bspotc | 2 | 22 | Tip control-AIR-TS/LF | 1 |
6 | Grease nipple M8x1 DIN 71412 | 4 | 23 | Air tube kit PTO/Valve ctrl - 6mm/25m | 1 |
7 | Greaser protection cap | 4 | 24 | air coupling 00 1/8"bspot 6mm push-in | 4 |
8 | Bondel seal 1" | 3 | 25 | HD-knock Off | 1 |
Oil tank kit consisting of: | 26 | Mounting kit HD-Knock Off | 1 | ||
9 | Oil tank 211L/181L-RM-MP-RF-LI | 1 | 27 | Stop Plate KO 14700575 brack. weld. | 1 |
10 | Filler/breather assembly complete | 1 | High pressure hoses | ||
11 | Hose pillar 00 1.50" - LP28 | 1 | 28 | Hose 1"-HP-16-2500-00-90 250 bar | 1 |
12 | Ball valve 1½" bsp LP lever operated | 1 | 29 | Hose 1"-HP-16-4000-00-90 250 bar | 1 |
13 | Suction adapter 90 1.5" - bspit | 1 | Low pressure hose part | ||
14 | Tank rubber single HTR 1006 | 4 | 30 | Hose clip LP28 Heavy duty 55-59mm | 2 |
Gear pump kit consisting of | Quick release coupling kit | ||||
15 | Gear pump105L-BI-4H3-2S-20bsp20-250 | 1 | 31 | QR coupling DN20 1" screw-on female | 1 |
16 | Bonded seal 1¼" | 1 | 32 | Quick release dustcap 1" for 01332630 | 1 |
17 | Adapter HP-00-1"bspotc-1¼"bspotc | 1 | 33 | Quick release dustcap 1" for 01332625 | 1 |
18 | Hose pillar 00 1¼"bspot - LP28 | 1 | 34 | QR coupling DN20 1" screw-on female | 1 |
Hyfix body lock parts consisiting of | |||||
35 | Hyfix bracket steel / special | 1 | 36 | Hyfix standard (excl. bracket spec.) | 1 |
|
Product Description
JUNFU Alpha Series is a complete kit– cylinder and wetkit – deliveringmaximum performance atminimum weight and with theshortest possible tipping cycle.JUNFU hydraulic systems are acollection of high-quality, durablecomponents that will work withevery type of truck and are able tomeet the toughest applications.All our systems go throughextensive lab testing on both,the component and completesolution levels before they leavethe factory
|
Product Packaging
|
Company Profile
Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.2）This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management.
|
Data Sheet
Pos. | Description | Qty. | Pos. | Description | Qty. |
Cylinder kit consisting of | Tipping valve kit consisting of | ||||
1 | FC A202-5-06800-009-K0343-HC | 1 | 19 | Tip valve HT-TNK-1220-190-LC | 1 |
2 | Chassis bracket 202 | 2 | 20 | Bonded seal 1" | 1 |
3 | Lifting bracket L202 | 1 | 21 | Adapter HP 00 1"bspotc x 1"bspotc | 1 |
4 | Lifting bracket R202 | 1 | Tip control kit consisting of | ||
5 | Adapter HP00 1"bspotc x 1"bspotc | 2 | 22 | Tip control-AIR-TS/LF | 1 |
6 | Grease nipple M8x1 DIN 71412 | 4 | 23 | Air tube kit PTO/Valve ctrl - 6mm/25m | 1 |
7 | Greaser protection cap | 4 | 24 | air coupling 00 1/8"bspot 6mm push-in | 4 |
8 | Bondel seal 1" | 3 | 25 | HD-knock Off | 1 |
Oil tank kit consisting of: | 26 | Mounting kit HD-Knock Off | 1 | ||
9 | Oil tank 211L/181L-RM-MP-RF-LI | 1 | 27 | Stop Plate KO 14700575 brack. weld. | 1 |
10 | Filler/breather assembly complete | 1 | High pressure hoses | ||
11 | Hose pillar 00 1.50" - LP28 | 1 | 28 | Hose 1"-HP-16-2500-00-90 250 bar | 1 |
12 | Ball valve 1½" bsp LP lever operated | 1 | 29 | Hose 1"-HP-16-4000-00-90 250 bar | 1 |
13 | Suction adapter 90 1.5" - bspit | 1 | Low pressure hose part | ||
14 | Tank rubber single HTR 1006 | 4 | 30 | Hose clip LP28 Heavy duty 55-59mm | 2 |
Gear pump kit consisting of | Quick release coupling kit | ||||
15 | Gear pump105L-BI-4H3-2S-20bsp20-250 | 1 | 31 | QR coupling DN20 1" screw-on female | 1 |
16 | Bonded seal 1¼" | 1 | 32 | Quick release dustcap 1" for 01332630 | 1 |
17 | Adapter HP-00-1"bspotc-1¼"bspotc | 1 | 33 | Quick release dustcap 1" for 01332625 | 1 |
18 | Hose pillar 00 1¼"bspot - LP28 | 1 | 34 | QR coupling DN20 1" screw-on female | 1 |
Hyfix body lock parts consisiting of | |||||
35 | Hyfix bracket steel / special | 1 | 36 | Hyfix standard (excl. bracket spec.) | 1 |
