Excavator cylinders play a pivotal role in the operation of construction machinery. They convert hydraulic fluid pressure into linear motion, enabling critical movements such as lifting, digging, and tilting. Choosing the right excavator cylinder is essential to ensure operational efficiency, longevity, and reliability of your machine. Whether you operate a small excavator for light construction or a heavy-duty excavator for mining applications, selecting a cylinder that matches your machine’s specifications and workload is crucial.
Hydraulic cylinders come in a variety of designs, sizes, and materials, each tailored for specific operational demands. A mismatch can lead to reduced performance, accelerated wear, or even system failure. Moreover, variations in environmental conditions, such as temperature extremes, humidity, and exposure to dust or corrosive materials, can further influence cylinder performance. In this guide, we will explore all the factors you need to consider when selecting the right excavator cylinder for your machine, covering types, materials, stroke, bore size, pressure ratings, integration, installation, and maintenance. Additionally, this article provides a comprehensive FAQ section to answer common questions related to excavator cylinders.
By understanding the engineering behind hydraulic cylinders and the specific requirements of your machinery, operators can make informed decisions that enhance both productivity and equipment longevity.

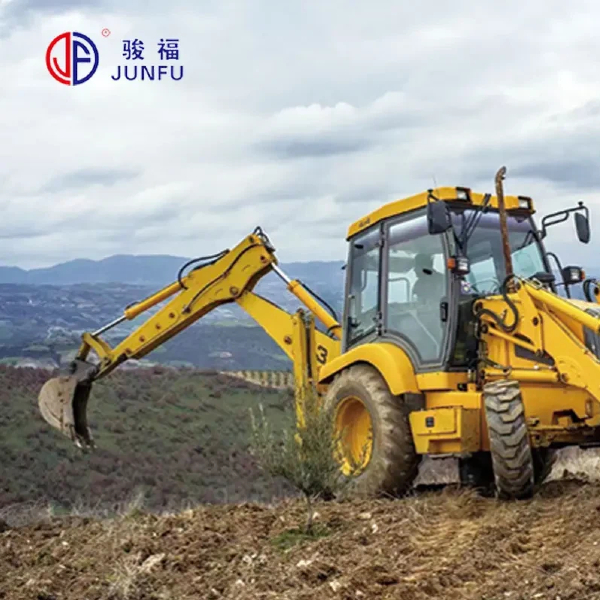

An excavator cylinder is a specialized hydraulic cylinder designed to provide linear motion for various components of an excavator, including the boom, arm, and bucket. By converting hydraulic pressure into mechanical force, the cylinder allows the machine to lift heavy loads, extend reach, and perform precise digging operations.
Excavator cylinders are engineered to withstand high stress, variable loads, and continuous operation in rugged environments. They are designed not only to deliver precise motion but also to maintain structural integrity under repeated high-pressure cycles. Proper selection ensures optimal energy transfer from the hydraulic system, minimizing energy loss and improving operational efficiency.
Understanding the components of an excavator cylinder is crucial for selecting the right one. The main components include:
⦁ Cylinder Tube – The main body that houses the piston and contains hydraulic fluid. It is typically made from high-strength alloy steel and precision-honed to reduce friction, prevent leakage, and enhance lifespan.
⦁ Piston and Rod – These convert hydraulic pressure into linear motion; the piston rod extends and retracts to move the boom or bucket. Rods are often hardened and chrome-plated to resist wear, corrosion, and bending under high loads.
⦁ End Caps – Seal the cylinder ends and provide mounting points for the machine. They are engineered to handle axial and radial loads, ensuring the cylinder maintains alignment and structural integrity.
⦁ Seals and Wipers – Prevent hydraulic leaks and protect internal components from contaminants like dirt and dust. Seals are usually made of premium synthetic materials such as polyurethane, nitrile, or fluorocarbon to withstand high pressure and temperature variations.
⦁ Mounting Hardware – Includes pins, brackets, and clevises for attachment to the excavator. Correct installation ensures smooth operation and minimizes stress on the cylinder during heavy-duty tasks.
High-quality materials and precise engineering of each component directly influence performance, reliability, and maintenance requirements. Attention to detail in the design phase, such as selecting the appropriate seal type for specific operating pressures, can dramatically extend the service life of the cylinder.
Excavator cylinders can be categorized based on their construction and operational mode:
⦁ Single-Acting Cylinders: Hydraulic pressure is applied in one direction only; typically used in lifting or tilting applications. These cylinders rely on external forces such as gravity or springs for the return stroke.
⦁ Double-Acting Cylinders: Hydraulic pressure is applied in both directions, allowing for controlled extension and retraction; commonly used in boom and arm operations. Double-acting cylinders provide precise motion and faster response for demanding tasks.
⦁ Tie-Rod Cylinders: Use external rods to hold the end caps; easier to service and often cost-effective. Ideal for moderate pressure applications where disassembly for maintenance is frequent.
⦁ Welded Cylinders: End caps are welded to the tube for maximum strength; ideal for heavy-duty and high-pressure applications. These cylinders offer superior load capacity and resistance to bending or misalignment under extreme operating conditions.
Selecting the type depends on the excavator model, intended application, and operational environment. Consider factors such as pressure rating, stroke frequency, and environmental exposure to choose the most appropriate design.
Choosing the right excavator cylinder involves more than picking a size or a brand. Several critical factors must be considered:
Ensure the cylinder matches your excavator’s specifications:
⦁ Mounting Dimensions: Pin-to-pin length and diameter must align with the machine’s frame and attachment points.
⦁ Stroke Length: Determines how far the cylinder can extend, which directly affects digging depth and lifting height.
⦁ Load Capacity: Must support the machine’s maximum operating load to prevent overstrain.
⦁ Hydraulic Pressure Requirements: Cylinder must handle the working pressure without leakage, deformation, or structural failure.
Using a cylinder incompatible with your machine can compromise performance, increase wear, and risk operator safety. Verifying compatibility with manufacturer specifications is crucial before selection.
The longevity and durability of an excavator cylinder heavily depend on the materials used:
⦁ Cylinder Tube: High-strength steel with precision grinding to prevent leaks and reduce friction. Tubes may be induction-hardened to resist abrasion.
⦁ Piston Rod: Chrome-plated for wear resistance, corrosion protection, and high load capacity. The rod’s hardness and smooth finish reduce seal wear and friction.
⦁ Seals: Premium polyurethane or nitrile materials ensure longevity under high-pressure conditions and temperature extremes.
⦁ End Caps: Forged steel or alloy end caps provide optimal strength, ensuring the cylinder withstands both axial and radial loads.
High-quality materials ensure smooth operation, minimize downtime, and extend service life. Detailed attention to metallurgy, heat treatment, and surface finishing directly influences cylinder reliability.
The stroke and bore diameter of an excavator cylinder determine its mechanical output:
⦁ Bore Size: Larger bores provide greater lifting or pushing force but may slow response speed slightly due to hydraulic flow requirements.
⦁ Stroke Length: Longer strokes allow more reach or travel distance for the boom or bucket, increasing operational flexibility.
⦁ Rod Diameter: Larger rods resist bending under load, improving durability for heavy-duty applications.
Specification | Effect on Performance | Recommended Use |
Bore Size (mm) | Higher push/pull force | Heavy lifting and large excavators |
Stroke Length (mm) | Increased travel distance | Deep digging or extended reach |
Rod Diameter (mm) | Strength and durability | High-pressure or continuous-duty applications |
Mounting Type | Machine fit and ease of replacement | Compatibility with OEM excavators |
This table provides a quick reference to match cylinder specifications with operational requirements and ensures users understand how dimensions impact performance.
The cylinder must operate safely within your machine’s hydraulic system:
⦁ Working Pressure: Should align with pump output to avoid seal failure or rod bending.
⦁ Push/Pull Force: Must match the required lifting or digging load to prevent overloading.
⦁ Safety Margins: High-quality cylinders are designed with pressure and force ratings above the expected operational requirements to account for sudden load spikes.
High-quality cylinders are tested under rated pressure conditions to ensure consistent performance. Selecting a cylinder with adequate pressure tolerance ensures durability and minimizes maintenance frequency.
An excavator cylinder must seamlessly integrate with the existing hydraulic system:
Compatible with pumps, valves, and hoses, ensuring smooth fluid flow.
Correct flow rates and pressure settings maintain efficiency and reduce wear.
Proper integration reduces the risk of hydraulic surges or system stress, improving safety and operational control.
Some cylinders come pre-designed for OEM hydraulic systems, simplifying installation and reducing the risk of mismatch.
Integration considerations also extend to alignment, connection types, and ease of maintenance for long-term operational stability.
Correct installation is critical for long-term cylinder performance:
Align the cylinder precisely with the mounting points to prevent lateral stress.
Use proper torque settings for all bolts and pins to avoid premature loosening or failure.
Verify that hydraulic connections are secure, leak-free, and correctly sized for pressure and flow.
Inspect mounting brackets, pins, and bushings to ensure compatibility and reduce vibration.
Correct installation minimizes wear on the piston rod, seals, and cylinder tube, maintaining hydraulic efficiency.
Maintaining an excavator cylinder extends its service life and ensures consistent performance:
⦁ Inspect Seals and Rods: Check for wear, cracks, or leaks; replace as needed.
⦁ Lubrication: Apply appropriate hydraulic grease or oil to moving components to minimize friction.
⦁ Cleanliness: Keep the cylinder and surrounding area free from dirt, dust, or debris to prevent contamination.
⦁ Scheduled Checks: Monitor pressure and stroke performance regularly, ensuring alignment and hydraulic flow meet specifications.
⦁ Documentation: Keep a maintenance log to track inspections, lubrication schedules, and replacements.
Routine maintenance reduces unexpected downtime, prevents damage to the hydraulic system, and enhances safety for operators.
Choosing the right cylinder also depends on the machine’s usage:
⦁ Light-Duty Excavators: Smaller bore cylinders with shorter strokes for low-intensity operations, such as landscaping or residential construction.
⦁ Medium-Duty Excavators: Balanced stroke and bore for construction, road work, or material handling.
⦁ Heavy-Duty Excavators: Large bore, long-stroke cylinders with reinforced components for mining, demolition, and continuous heavy load operations.
By matching cylinder specifications with application intensity, operators can optimize performance, reduce wear, and ensure operational safety across different working conditions.
Choosing the right excavator cylinder requires careful consideration of key factors such as machine compatibility, material quality, stroke and bore size, pressure and force ratings, system integration, proper installation, and ongoing maintenance. By evaluating these elements thoroughly, we can ensure machinery operates with maximum efficiency and long-term reliability. A high-quality cylinder not only improves operational smoothness but also minimizes downtime and reduces overall maintenance costs across the lifecycle of your equipment.
At Shandong Junfu Hydraulic Technology Co., Ltd., we specialize in precision-engineered excavator cylinders and comprehensive hydraulic solutions designed to meet diverse industrial needs. Our team is committed to providing expert guidance tailored to your specific specifications and performance requirements. Whether you are upgrading existing equipment or selecting components for new machinery, consulting with us can help you make an informed decision that enhances performance and extends equipment life.
To explore our range of products and receive professional support on choosing the right excavator cylinder for your machine, we encourage you to contact Shandong Junfu Hydraulic Technology Co., Ltd. Our expertise and quality products are here to support your operational success and keep your projects running smoothly.
Q1: What makes an excavator cylinder compatible with a machine?
Compatibility depends on cylinder dimensions, mounting points, stroke length, and hydraulic pressure ratings.
Q2: How does bore size affect cylinder performance?
Larger bore sizes increase push/pull force, enabling the cylinder to handle heavier loads, while smaller bores allow faster response times for precision operations.
Q3: Why is material quality important for excavator cylinders?
Materials affect durability, wear resistance, and operational lifespan under heavy workloads. High-quality steel, heat-treated rods, and premium seals are essential.
Q4: Can I use a double-acting cylinder for all excavator applications?
Generally yes for boom, arm, and bucket operations, but always verify machine specifications. Double-acting cylinders offer controlled extension and retraction for demanding tasks.
Q5: How often should I maintain my excavator cylinder?
Regularly inspect seals, lubricate moving parts, and monitor pressure based on operational frequency. Scheduled maintenance reduces downtime and prevents system failure.
