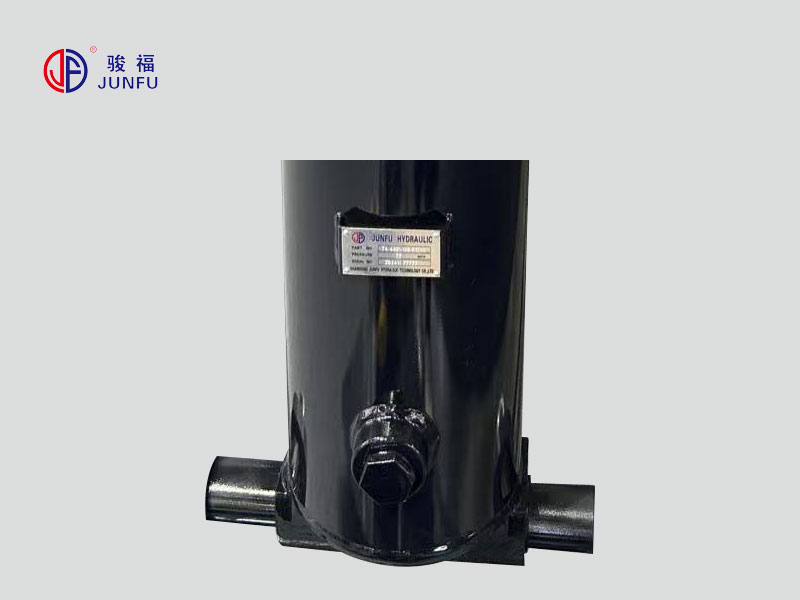

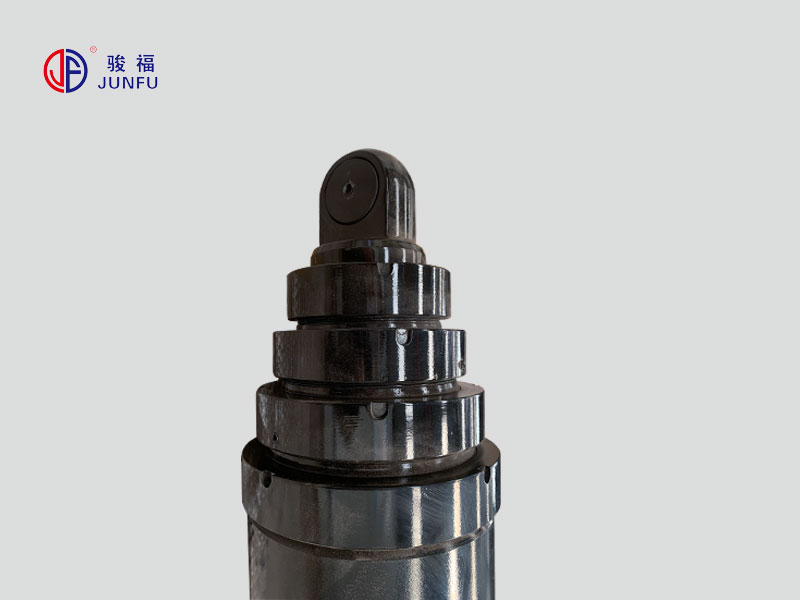

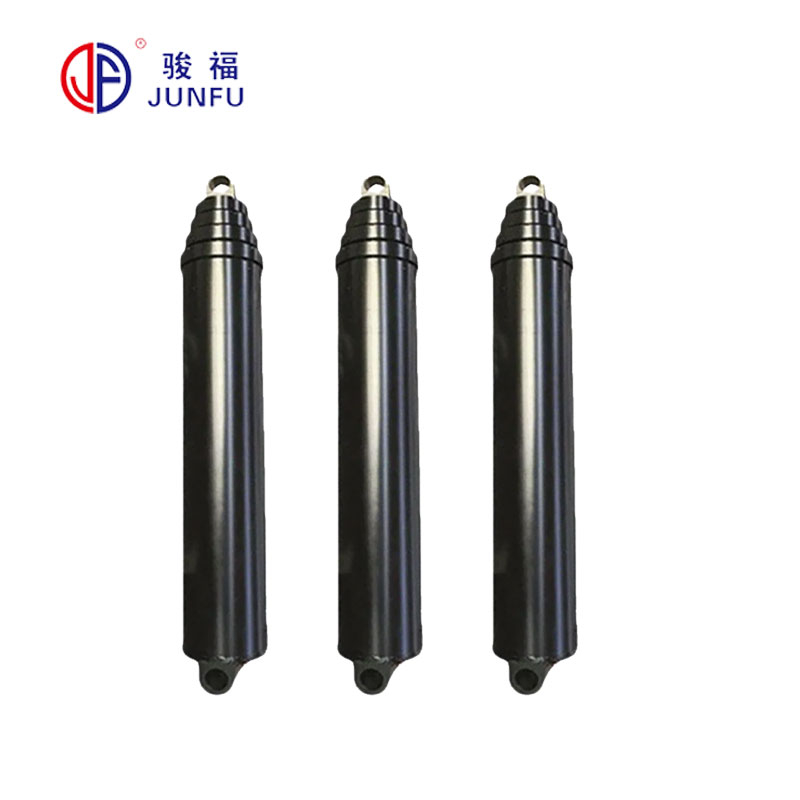

Park Type Customized Telescopic Hydraulic Cylinder For Trailerer

Name: Park Type Customized Telescopic Hydraulic Cylinder For Trailerer
Brand: JUNFU
Rating: 5.0 (78 reviews)

Company enjoys a reputation for quality custom built cylinders that demonstrate engineering know how and adept manufacturing. JUNFU manufacturer of hydraulic cylinders.

Availability:

Quantity:



Inquire Add to Basket

Model:
PK
Brand:
JUNFU

Product Description

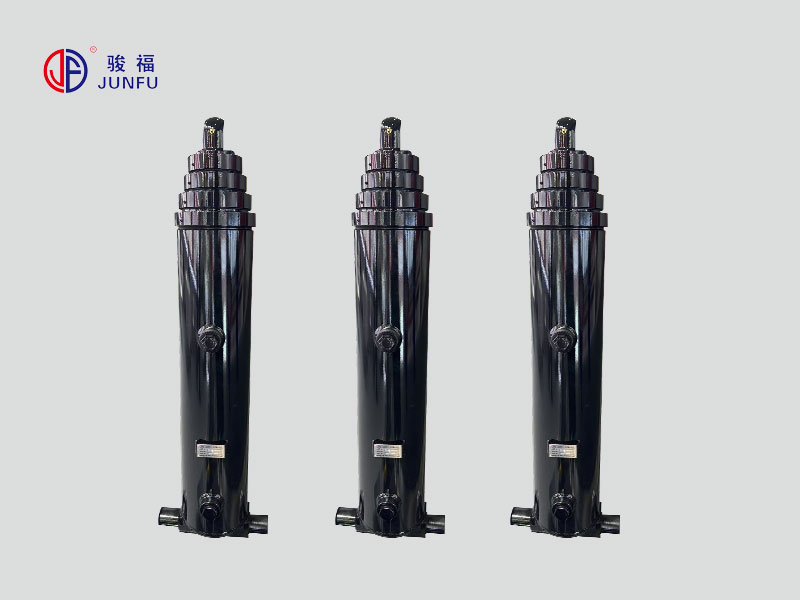

Pk Type Customized Telescopic Hydraulic Cylinde

It's our goal to provide our customers with the highest quality cylinders. If the need arises for a cylinder not listed in this guide, please furnish us the following information and we'll do our best to provide a new or replacement.

Product Description

1）Weighs less than most cylinders of similar design

2）Chrome-plated LPA

3) Optional self-aligning bearing

4) Lifting capacity comparable to other brands

5) Dual-lip wiper prevent contamination entry6) Fits a variety of dump body and trailer applications

7) 2800–3500 psi operating pressure

8) Self-bleeding design

9) State-of-the-art u-cups

Company Profile

Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.

We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management.

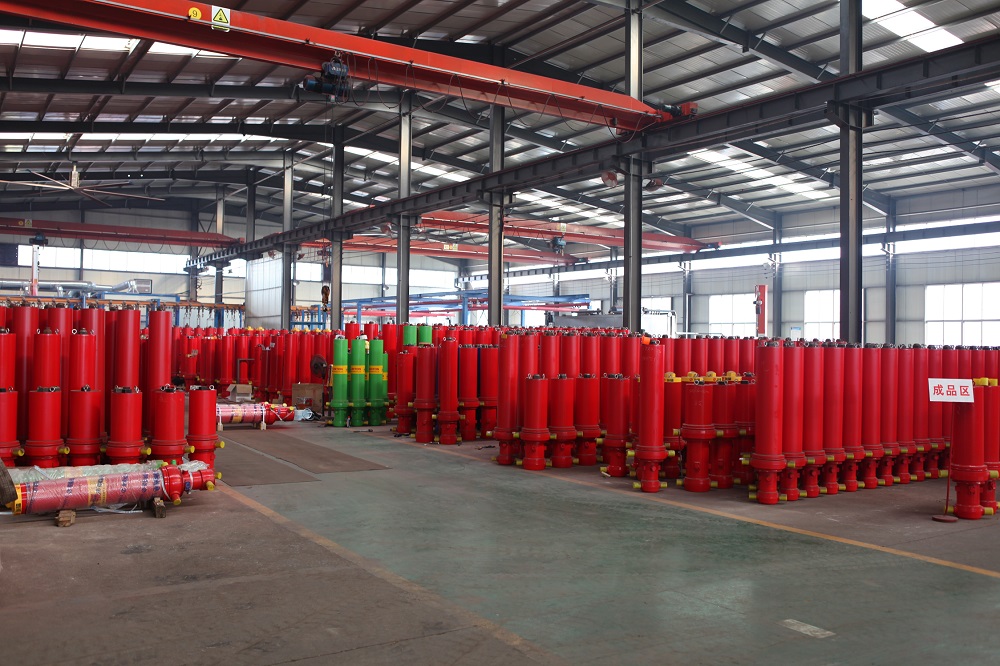

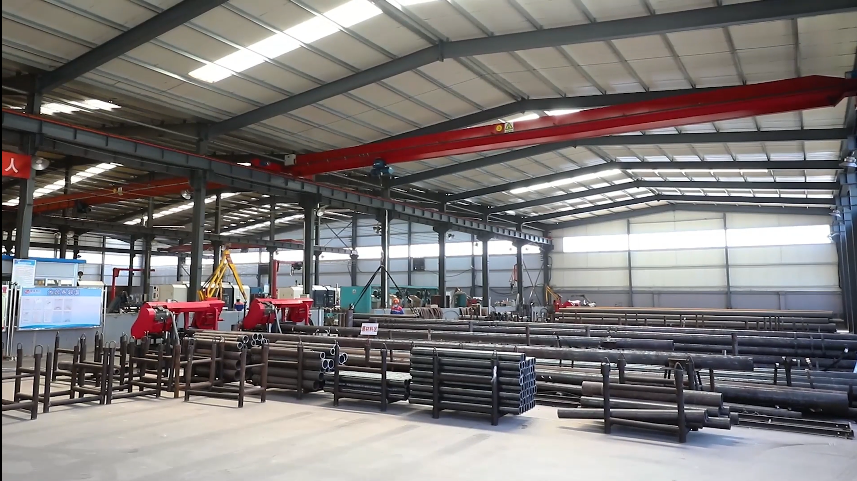

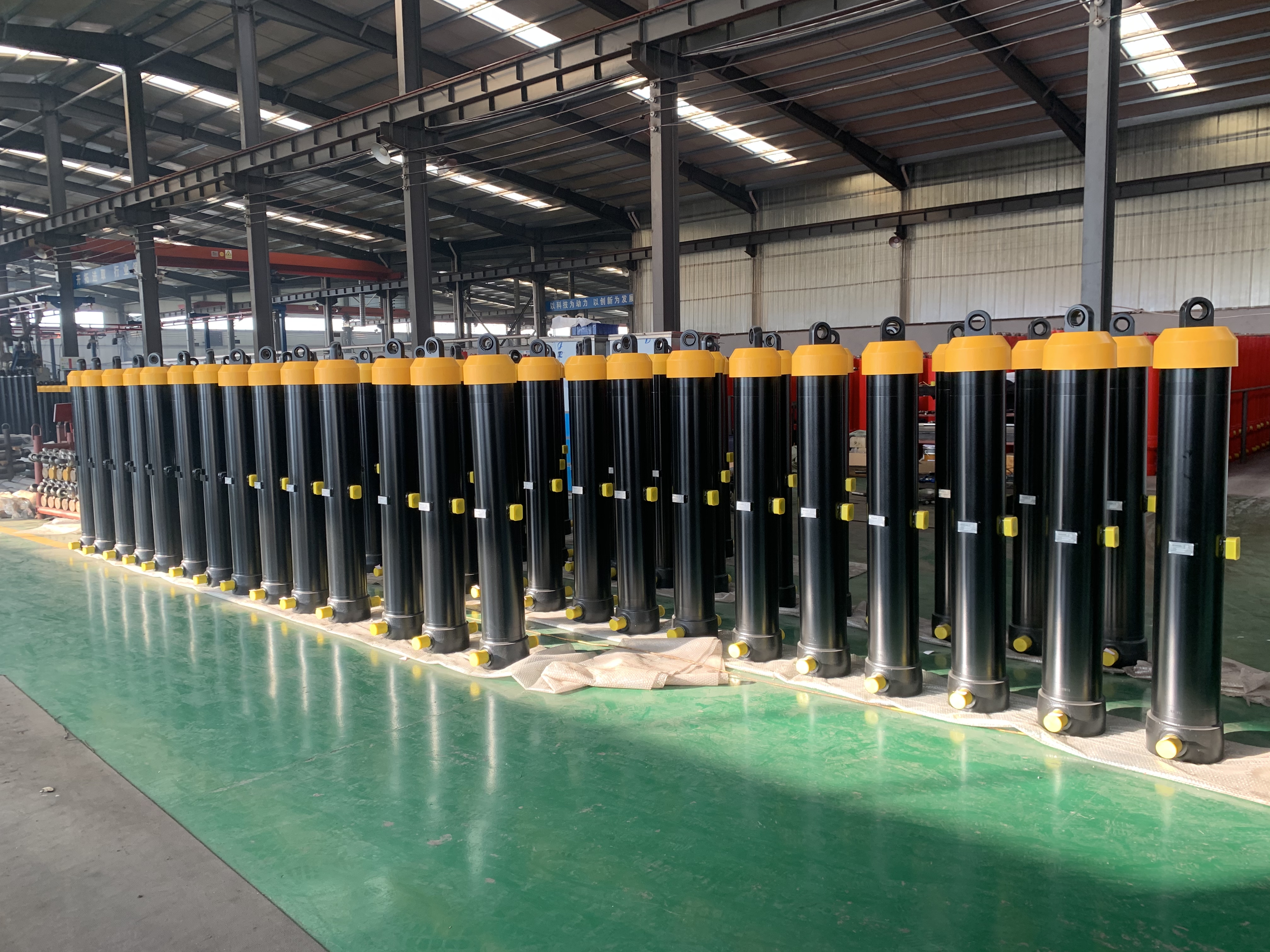

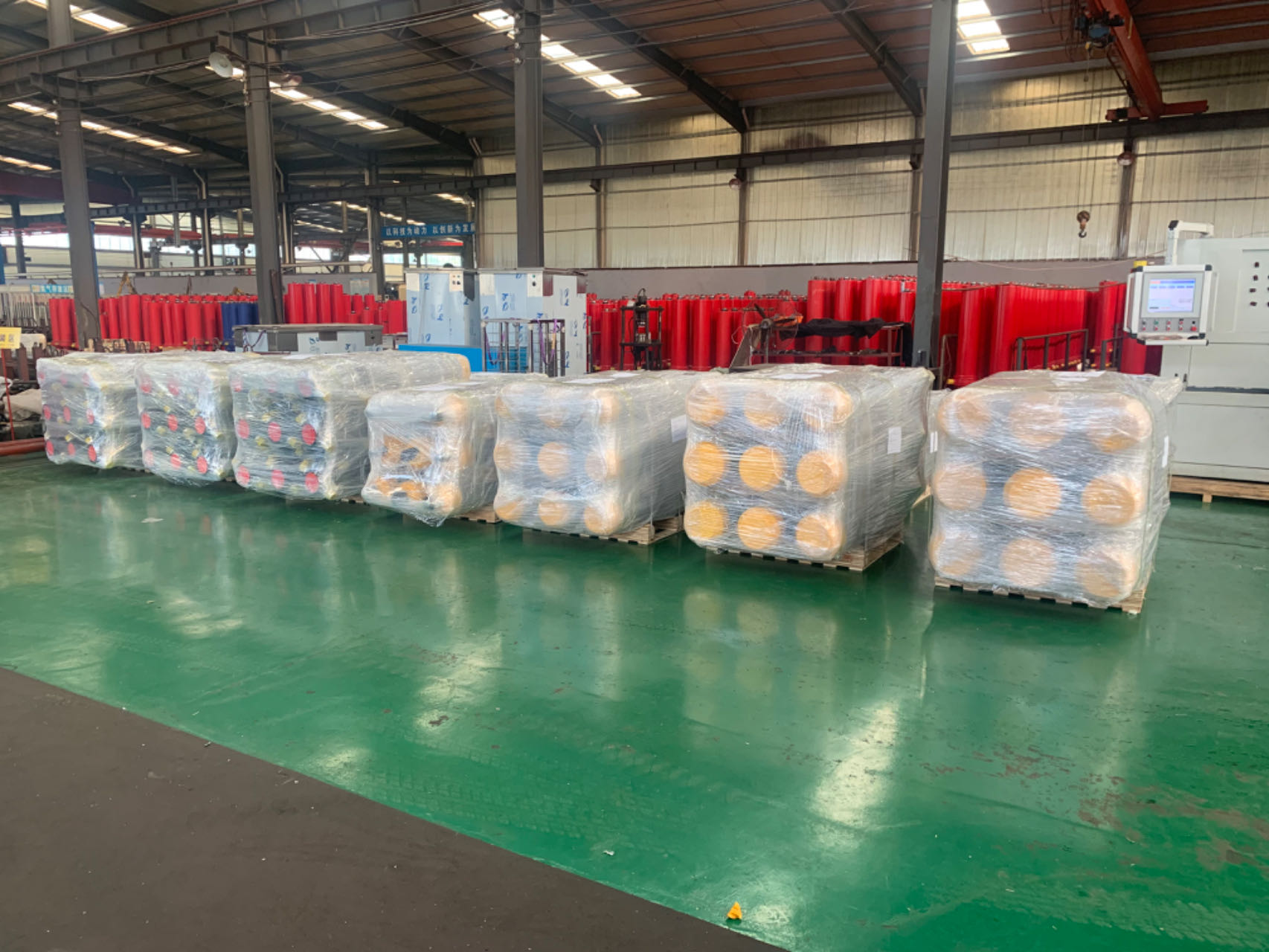

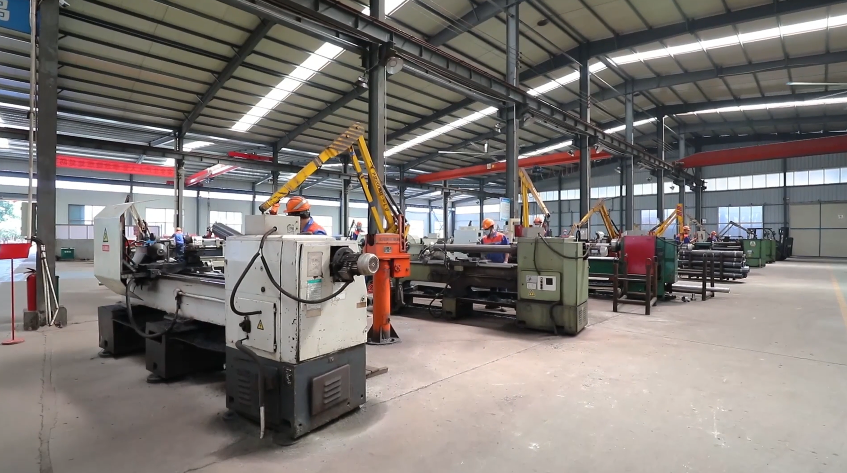

Production Process

Certifications

液压缸-1_08

Data Sheet

4000 Series
4000 Series	A		B		C		D		E		F		G		J		K		L	M		GAL of OIL		WEIGHT
MODEL NUMBER	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	PORT	in	mm	FILL	EXT	lbs
53-4459-128	125.94	3199	54.50	1384	180.44	4583	1.50	38	1.78	45	2.00	51	7.00	178	2.06	52	26.50	673	SAE #16	N/A	N/A	2.0	7.1	227
53-4531-130	126.13	3204	54.56	1386	180.69	4590	2.00	51	1.78	45	1.88	48	7.00	178	2.06	52	33.50	851	1" NPTF	N/A	N/A	2.0	7.1	234
53-4592-72	71.94	1827	36.62	930	108.56	2757	1.50	38	2.06	52	2.00	51	7.00	178	2.06	52	19.50	495	3/4" NPTF	N/A	N/A	1.3	4.0	155
53-4592-84	84.19	2138	41.12	1044	125.31	3183	1.50	38	2.06	52	2.00	51	7.00	178	2.06	52	19.50	495	3/4" NPTF	N/A	N/A	1.4	4.7	171
53-4592-106	106.06	2694	48.00	1219	154.06	3913	1.50	38	2.06	52	2.00	51	7.00	178	2.06	52	19.50	495	3/4" NPTF	N/A	N/A	1.7	6.0	208
63-4402-84	84.38	2143	41.00	1041	125.38	3185	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	1.8	7.3	208
63-4402-104	103.75	2635	47.62	1210	151.37	3845	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	2.1	9.0	241
63-4402-108	108.38	2753	49.00	1245	157.38	3997	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	2.2	9.4	250
63-4402-120	120.38	3058	53.00	1346	173.38	4404	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	2.4	10.4	278
63-4402-126	126.38	3210	55.00	1397	181.38	4607	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	2.5	11.0	286
63-4402-132	132.38	3362	57.00	1448	189.38	4810	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	2.7	11.5	290
63-4402-140	140.62	3572	59.75	1518	200.37	5089	2.00	51	2.06	52	1.75	44	7.00	178	2.13	54	19.50	495	1" NPTF	N/A	N/A	2.8	12.2	307
64-4435-135	134.75	3423	47.13	1197	181.88	4620	2.69	68	1.56	40	1.63	41	8.00	203	1.88	48	N/A	N/A	1" NPTF	4.50	114	2.5	9.7	272
64-4435-156	155.75	3956	52.38	1330	208.13	5286	2.69	68	1.56	40	1.63	41	8.00	203	1.88	48	N/A	N/A	1" NPTF	4.50	114	2.8	11.2	302
64-4467-156	155.75	3956	52.63	1337	208.38	5293	1.75	44	2.03	52	1.88	48	7.25	184	2.06	52	6.38	162	1" NPTF	5.00	127	2.8	11.2	300
73-4500-110	108.94	2767	49.88	1267	158.81	4034	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	2.7	13.5	318
73-4500-118	117.19	2977	52.13	1324	169.31	4301	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	2.8	14.5	332
73-4500-127	126.19	3205	55.13	1400	181.31	4605	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.0	15.7	352
73-4500-142	141.19	3586	60.13	1527	201.31	5113	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.3	17.5	380
73-4500-151	150.19	3815	63.13	1603	213.31	5418	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.5	18.7	407
74-4401-120	119.94	3046	44.75	1137	164.69	4183	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	2.8	12.6	309
74-4401-135	134.69	3421	48.25	1226	182.94	4647	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.1	14.2	330
74-4401-140	139.69	3548	49.50	1257	189.19	4805	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.2	14.8	346
74-4401-156	154.56	3926	53.38	1356	207.94	5282	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.5	16.2	373
74-4401-161	159.56	4053	54.63	1387	214.19	5440	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.6	16.8	384
74-4401-167	166.06	4218	56.25	1429	222.31	5647	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	3.7	17.5	395
74-4401-180	179.06	4548	59.50	1511	238.56	6059	2.00	51	2.06	52	1.75	44	8.63	219	2.13	54	6.50	165	1" NPTF	12.00	305	4.0	18.9	415
84-4466-148	145.00	3683	51.50	1308	196.50	4991	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.50	165	1" NPTF	12.75	324	3.9	21.2	451
84-4466-156	153.00	3886	53.50	1359	206.50	5245	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.50	165	1" NPTF	12.75	324	4.1	22.4	474
84-4466-161	157.50	4001	54.88	1394	212.38	5394	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.50	165	1" NPTF	12.75	324	4.2	23.1	483
84-4466-170	167.00	4242	57.00	1448	224.00	5690	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.50	165	1" NPTF	12.75	324	4.4	24.5	504
84-4466-180	176.50	4483	59.50	1511	236.00	5994	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.50	165	1" NPTF	12.75	324	4.6	25.9	527
85-4402-170	168.63	4283	49.88	1267	218.50	5550	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	4.2	21.3	462
85-4402-190	188.63	4791	53.88	1368	242.50	6160	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	4.6	23.8	500
85-4402-200	198.62	5045	55.88	1419	254.50	6464	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	4.9	25.3	519
85-4402-220	218.63	5553	59.88	1521	278.50	7074	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	5.2	27.7	554
85-4402-235	234.25	5950	65.00	1651	299.25	7601	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	5.8	29.7	611
85-4402-250	249.25	6331	68.00	1727	317.25	8058	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	6.1	31.7	655
85-4453-265	263.63	6696	70.88	1800	334.50	8496	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	5.6	33.9	664
85-4466-265	264.25	6712	74.38	1889	338.63	8601	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	6.8	33.7	710
85-4466-280	279.25	7093	77.50	1969	356.75	9061	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	7.1	35.7	746
85-4466-285	284.25	7220	78.50	1994	362.75	9214	2.00	51	2.06	52	1.75	44	9.50	241	2.13	54	6.63	168	1" NPTF	12.75	324	7.2	36.4	758
95-4461-220	219.63	5578	60.88	1546	280.50	7125	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	13.50	343	1" NPTF	12.75	324	6.6	38.0	723
95-4461-235	232.75	5912	65.00	1651	297.75	7563	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	6.50	165	1" NPTF	12.75	324	7.2	40.1	783
95-4461-250	249.88	6347	72.63	1845	322.50	8192	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	6.50	165	1" NPTF	12.75	324	8.2	43.6	891
95-4461-265	264.88	6728	75.63	1921	340.50	8649	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	6.50	165	1" NPTF	12.75	324	8.6	46.3	934
95-4461-280	279.88	7109	78.63	1997	358.50	9106	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	6.50	165	1" NPTF	12.75	324	8.9	48.9	956
95-4461-300	299.88	7617	82.63	2099	382.50	9716	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	6.50	165	1" NPTF	12.75	324	9.5	52.4	1002
95-4509-340	338.94	8609	87.00	2210	425.94	10819	2.00	51	2.06	52	1.75	44	10.69	271	2.13	54	6.50	165	1" NPTF	N/A	N/A	8.9	59.3	1078
