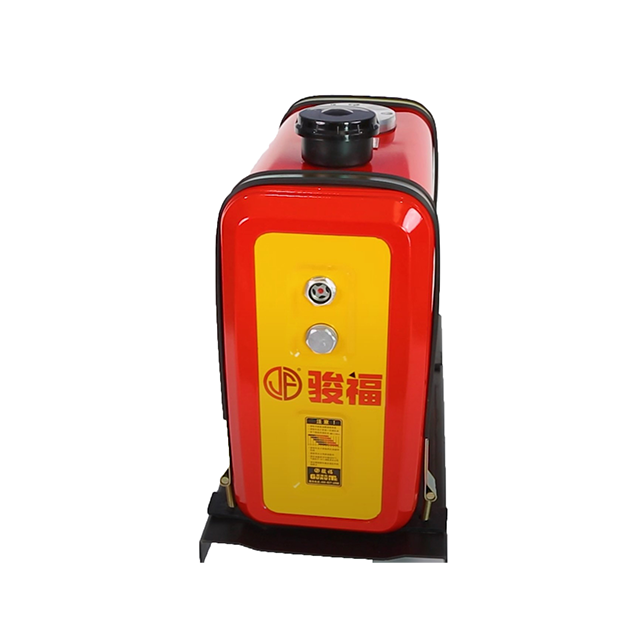

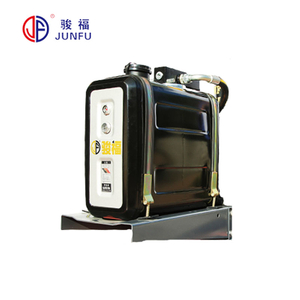

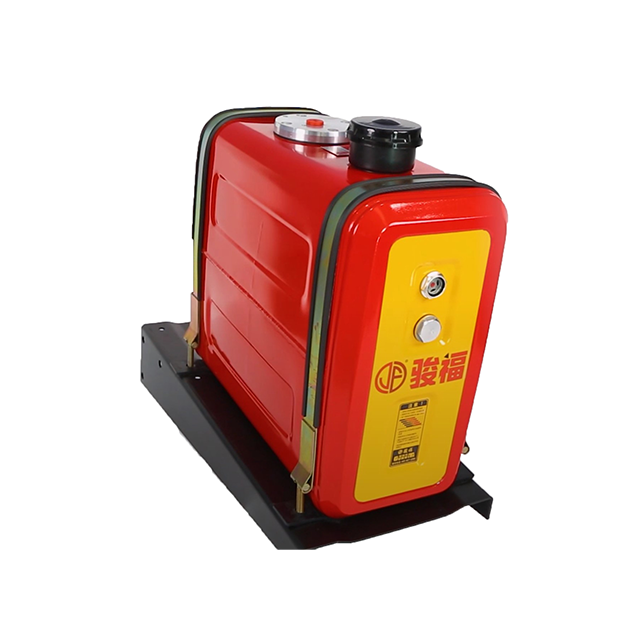

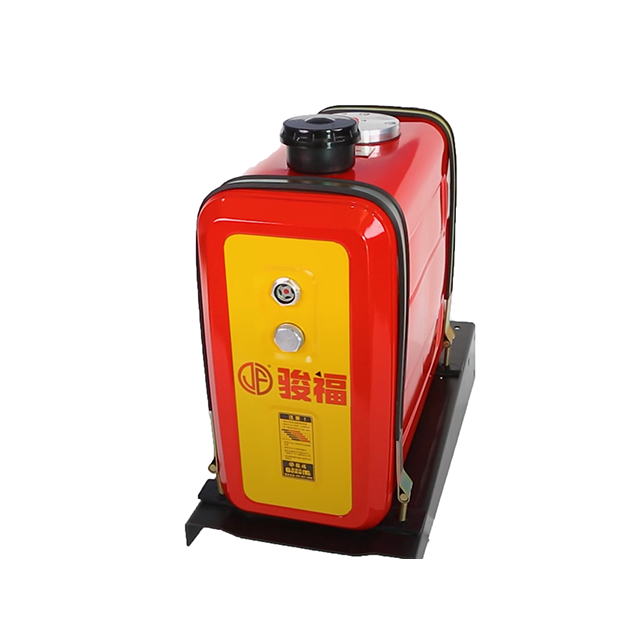

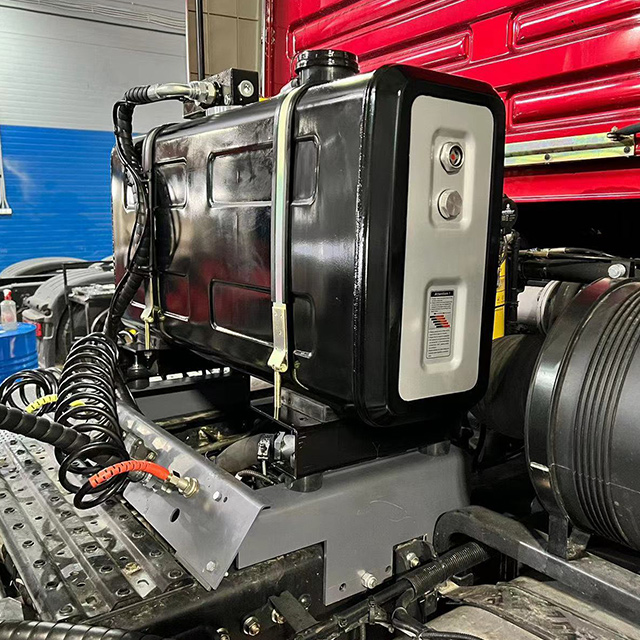

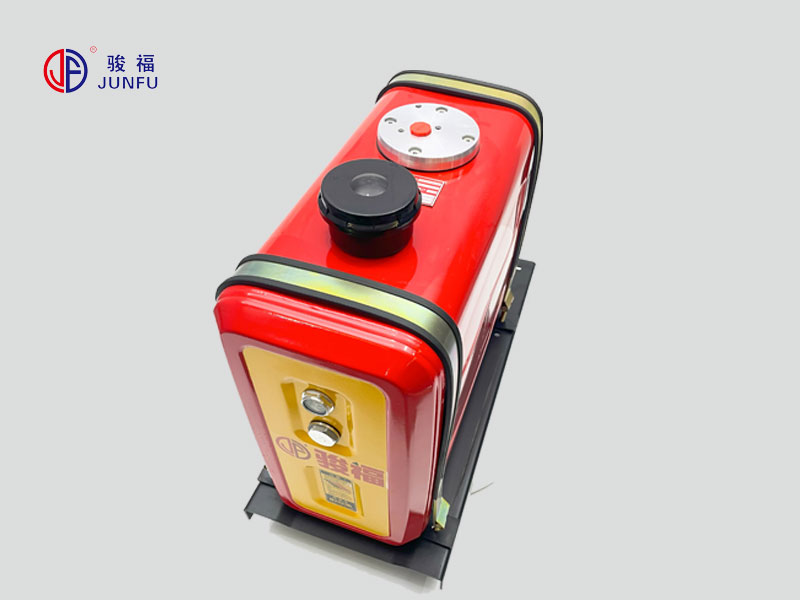

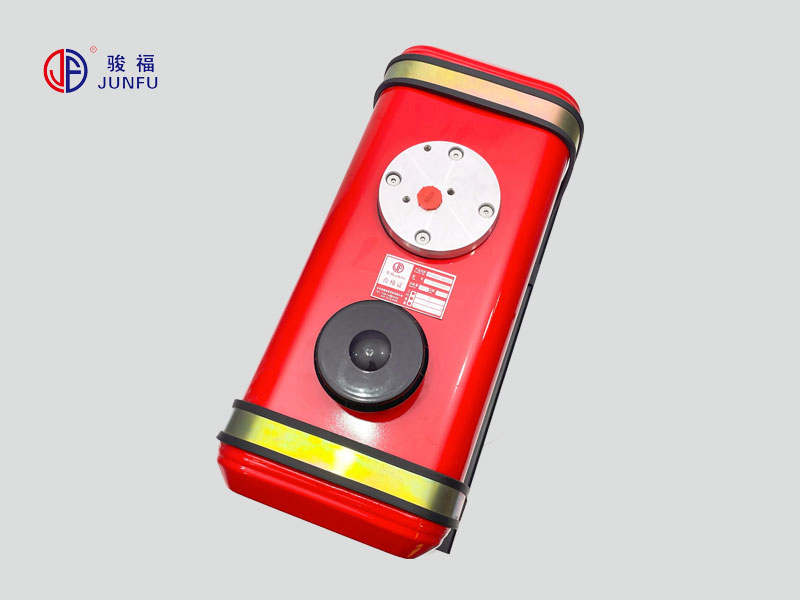

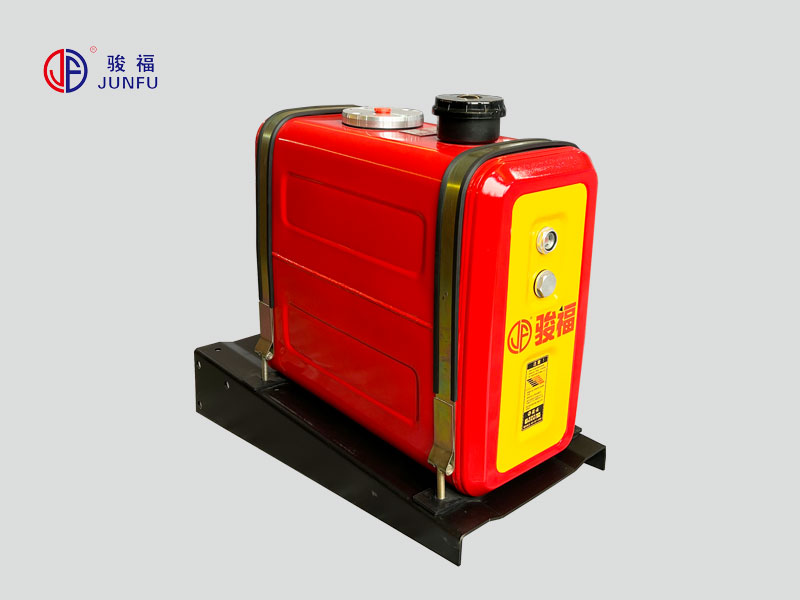

Rear Mount Hydraulic Oil Tank

Designed to support heavy-duty machinery, our Rear Mount Hydraulic Oil Tank is built with high-strength materials and advanced leak-proof sealing for top-tier durability and performance. The innovative rear-mount design saves space, simplifies maintenance, and accommodates various capacity options to suit different equipment needs. This tank is engineered for resistance to extreme temperatures and meets industry standards, including ISO and CE certifications, ensuring reliable performance in demanding environments. Choose our hydraulic oil tank to enhance the efficiency, safety, and lifespan of your hydraulic systems.

Availability:

Quantity:



Inquire Add to Basket

Model:
JF-RM

Type

Rear Mounted Tanks

|

Product Description

1) Cleanliness inside the tank: clean and dry, with no residual particles larger than 50 microns;

2) factory air tightness test: test pressure >50KPa test, no leakage, no permanent deformation box;

3) The tank is filled with compressed air with a relative pressure of 30KPa, and each part under test is immersed in water depth <100mm, and the pressure is kept for 2min, without leakage;

4) The bottom of the oil tank: the drain port is equipped with permanent magnet thread plug;

5) Oil return filter: reliable operation, filtration accuracy <1mm, flow >200L/min;

6) The lower outlet of the filter is shown in the figure, with a 45° cut and a distance of 10-20mm from the bottom plate；

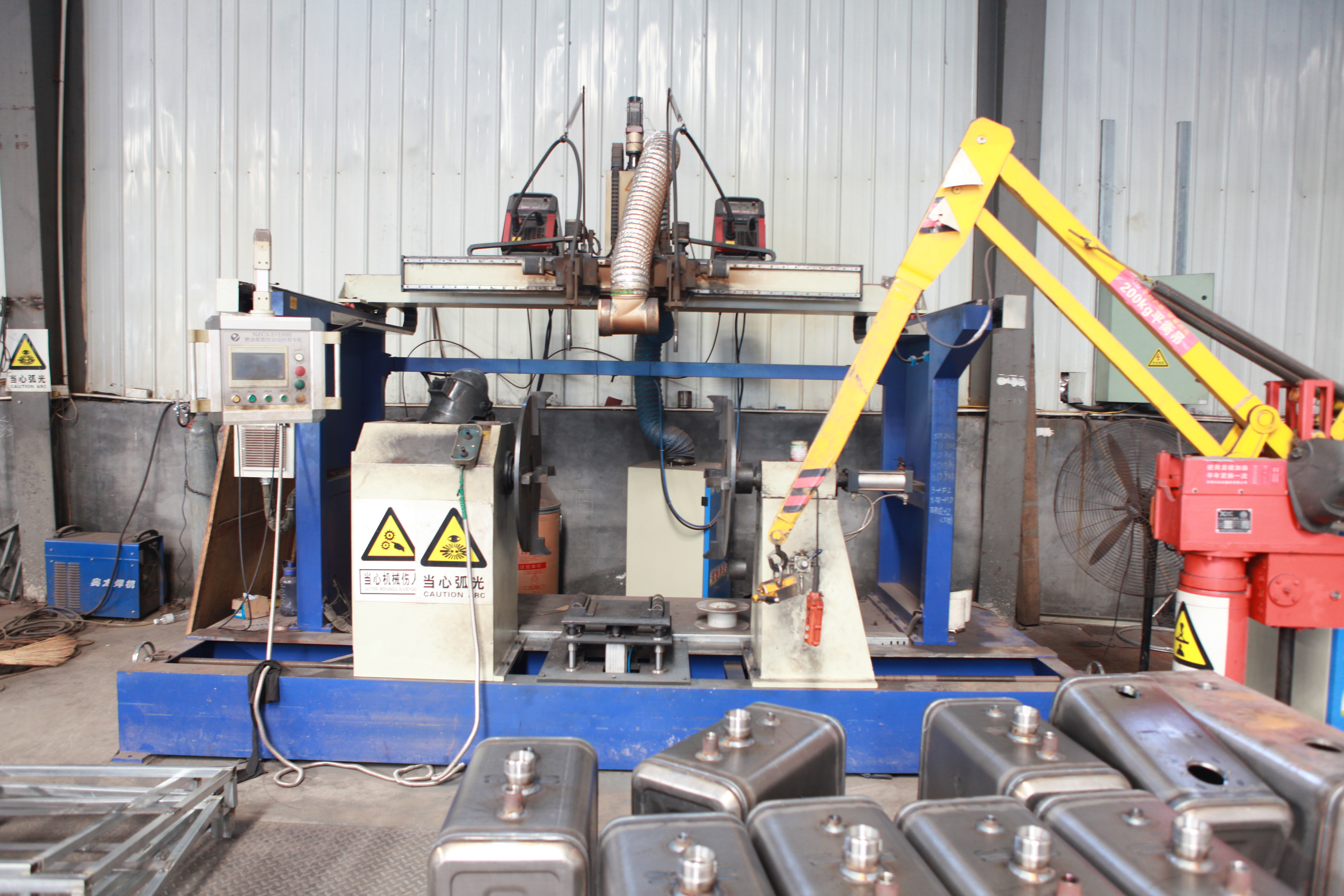

7) The fuel tank adopts pulse gas welding, welding width >8mm, material thickness 2.5mm.

|

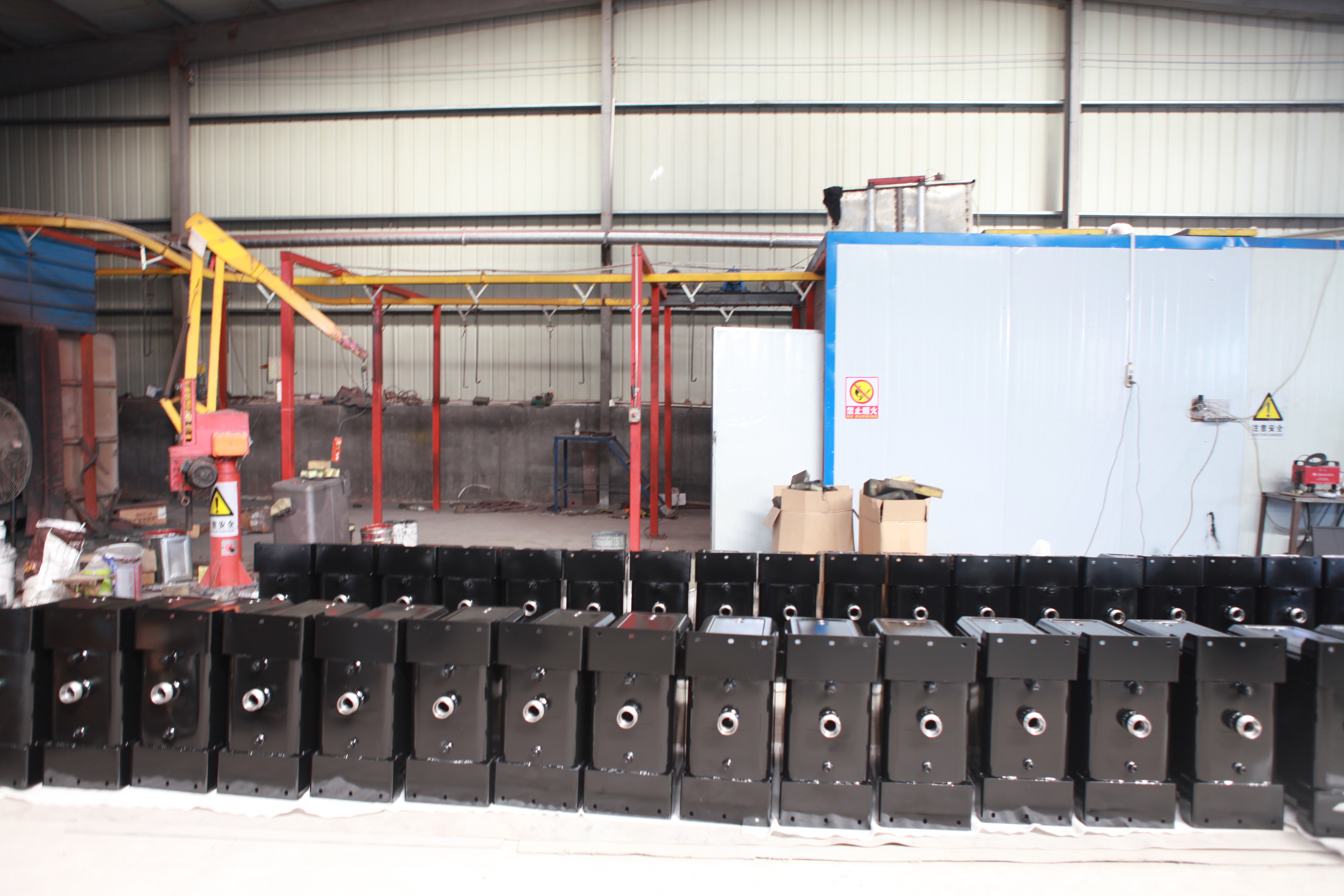

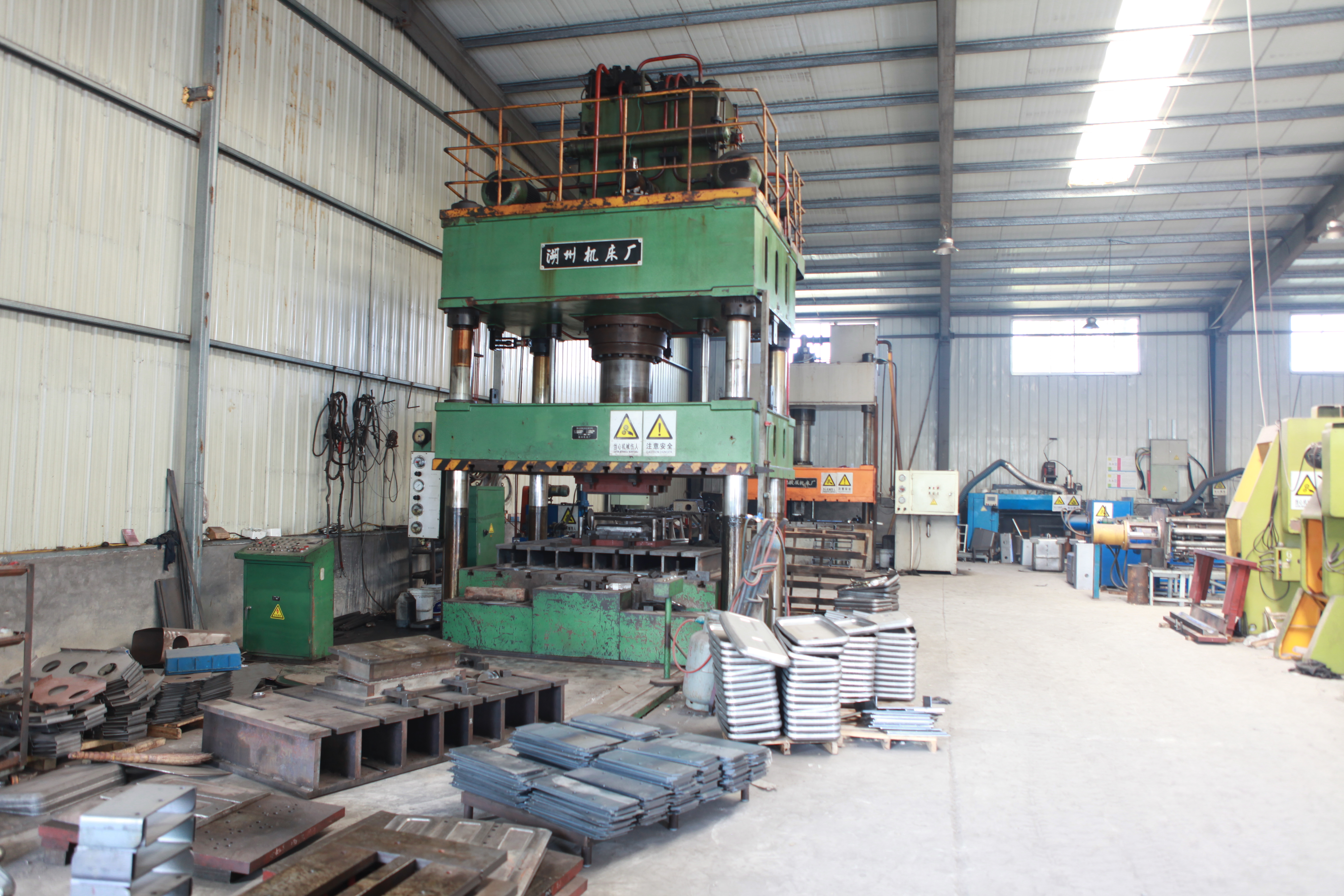

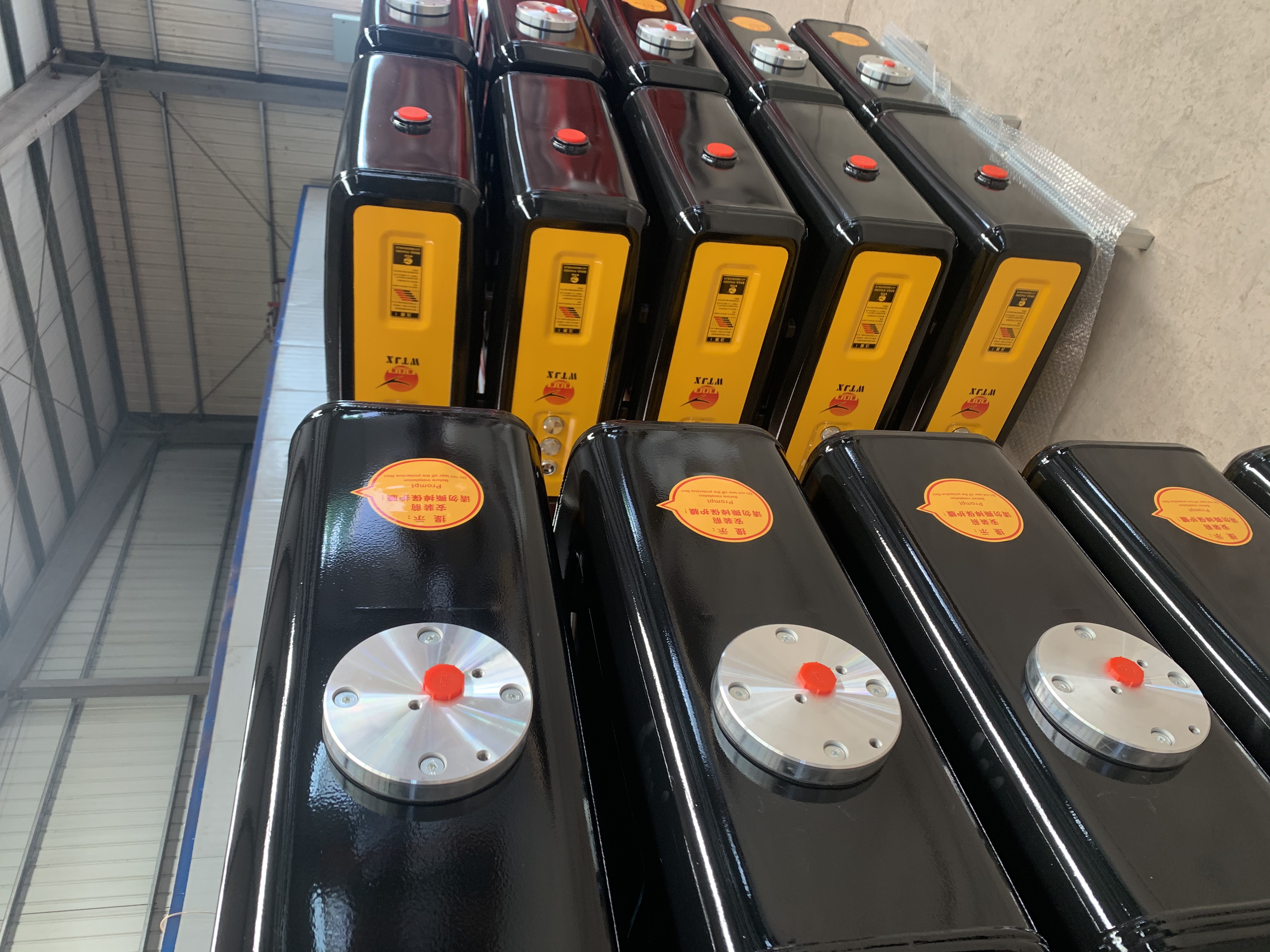

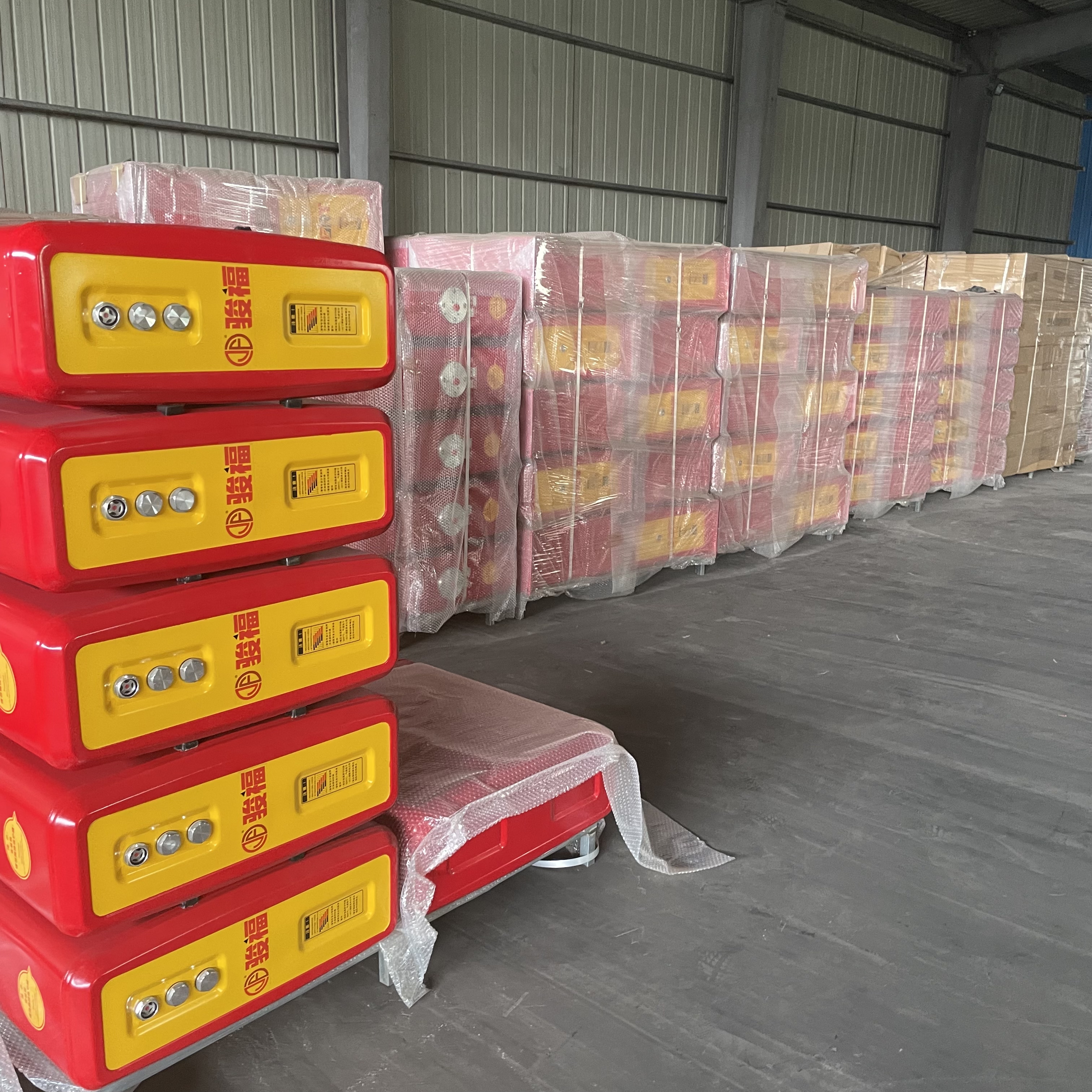

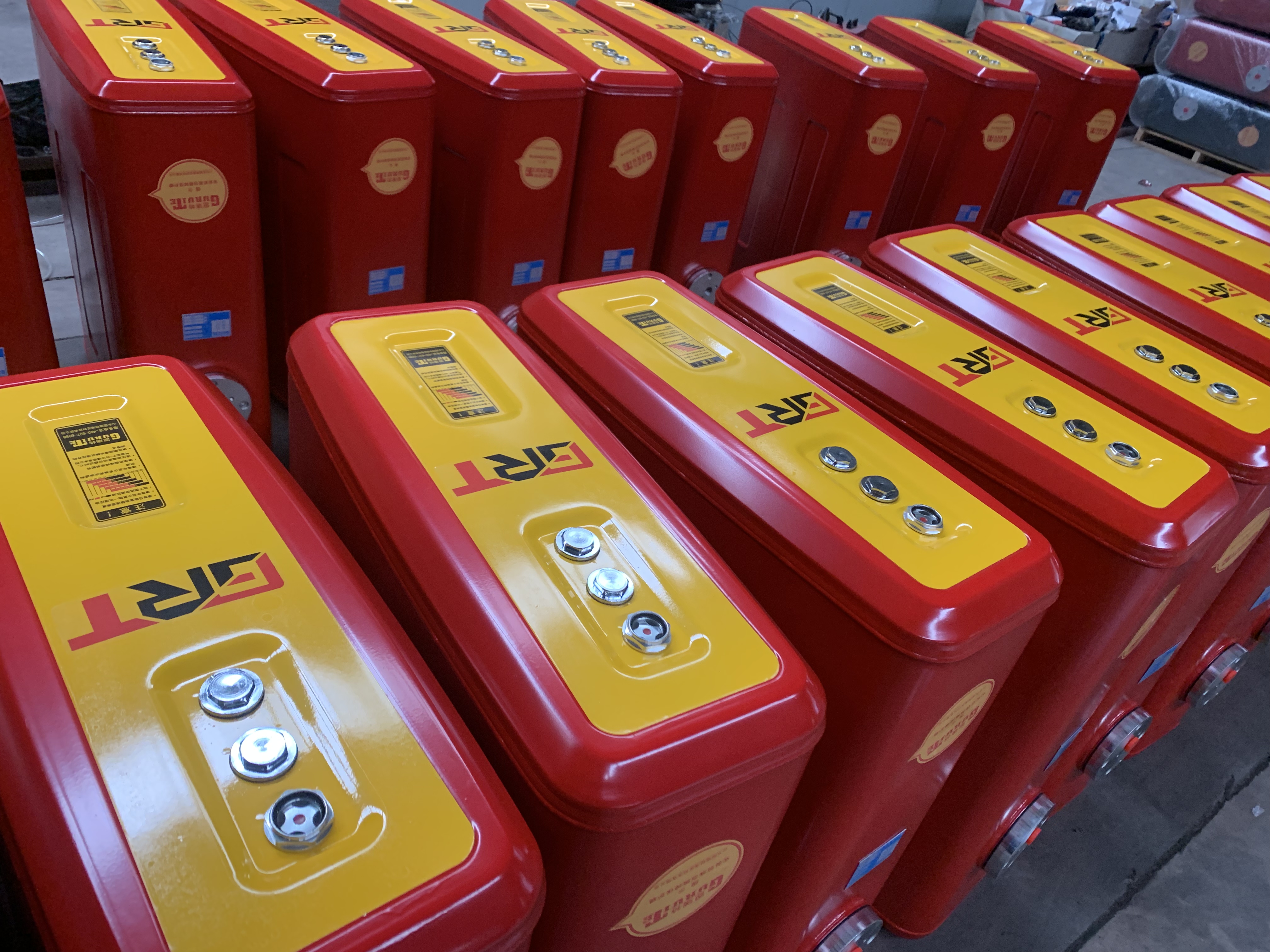

Production Process

|

Certifications

|

Data Sheet

NO	Part no	Volume (L)	Size (mm)	Thickness (mm)	Feature
1	JFF0380600	80	280500600	2.0	1、Equipped with the filter house. 2、Fixed by the strap&rubber 3、Oil port is G11/2’’ 4、Returm oil filter is integrated 5、Color:Customized
2	JFF03100630	100	280700630	2.0
3	JFF03120670	120	280700670	2.0
4	JFF03150860	150	280700860	2.0
5	JFF03180840	180	340700840	2.5
