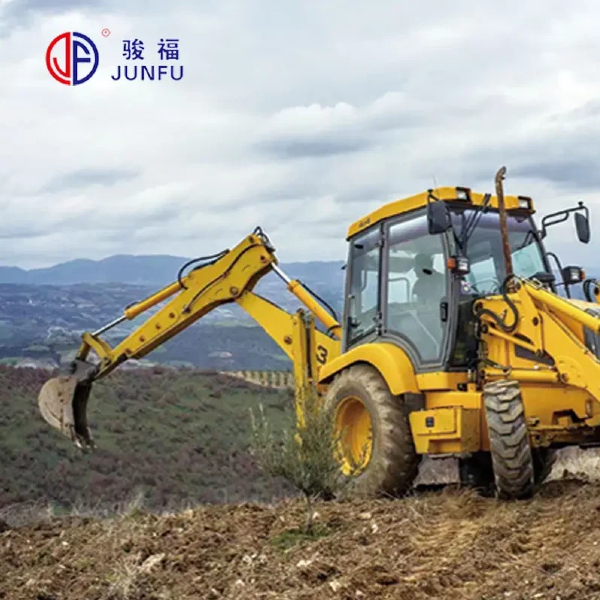

Excavators are indispensable machines in construction, mining, and civil engineering projects due to their versatility and power. At the heart of these machines lies a sophisticated hydraulic system, with the excavator cylinder playing a pivotal role in executing precise and powerful movements. An excavator cylinder is a type of hydraulic actuator designed to convert pressurized hydraulic fluid into linear mechanical force. This force enables lifting, digging, and various other movements that are critical for excavator operation. Without these cylinders, an excavator would lack the precision, strength, and stability required for heavy-duty tasks.
Excavator cylinders are engineered for durability, performance, and reliability. They are capable of operating under extreme conditions such as high loads, fluctuating pressures, and continuous use for extended periods. These cylinders work seamlessly within a complex hydraulic system, responding to operator inputs and maintaining smooth, controlled motion. They are essential not only for the efficiency of the machine but also for the safety of both the operator and the surrounding work environment. This article explores the components, types, working principles, specifications, and applications of excavator cylinders, offering a comprehensive guide for engineers, equipment operators, and procurement professionals seeking a technical understanding of these components.
Understanding the components of an excavator cylinder is crucial to appreciate how it works and why it can withstand the rigorous demands of heavy machinery operations. Each component plays a distinct role in ensuring precision, strength, and durability.
The cylinder tube, often referred to as the barrel, forms the main body of the cylinder. It is usually made of high-strength alloy steel to withstand internal hydraulic pressure and external mechanical stresses. The internal surface is finely machined and polished to reduce friction and allow smooth piston movement. This precision machining not only enhances performance but also reduces wear on the seals and the piston itself, contributing to longer operational life. The cylinder tube is often treated with anti-corrosion coatings or surface hardening processes to ensure consistent performance in harsh environments, including high humidity, dirt, and dust commonly encountered on construction sites.
The piston is located inside the cylinder tube and divides it into two chambers. Pressurized hydraulic fluid acts on the piston to generate linear motion. The piston rod is connected to the piston and extends out of the cylinder to transmit mechanical force to the excavator arm, boom, or bucket. Rods are typically induction-hardened and chrome-plated, providing excellent resistance to corrosion, scratches, and abrasion. The piston itself is precision-machined and fitted with high-quality seals to prevent hydraulic fluid leakage. Advanced piston designs may include multiple seal types, such as U-cups and wipers, to maintain performance under high pressure and rapid cycling conditions.
Seals prevent hydraulic fluid from leaking between the piston, rod, and cylinder body. Excavator cylinders often use urethane or rubber U-cups, wiper seals, and rod seals, each selected for high durability and resistance to temperature variations. Bushings support the piston rod and help minimize lateral movement, ensuring precise alignment. High-quality bushings reduce friction and wear, which is particularly important when cylinders are subjected to high-frequency operations or side loads. Together, seals and bushings contribute to the long-term stability and reliability of the cylinder under heavy operational loads.
The end caps close the cylinder at each end, providing structural integrity and precise mounting points for attachment to the excavator. These components are precision-machined and often reinforced to handle dynamic and static loads. Proper mounting ensures the cylinder aligns correctly with mechanical arms, preventing misalignment that could result in premature wear or failure. The end cap design also influences the cylinder’s resistance to bending and twisting forces, making it a critical factor in overall performance.
Excavators typically use three main types of cylinders, each serving a specialized purpose within the machine’s hydraulic system. Each cylinder is engineered to deliver the appropriate force and precision for its designated task.
The boom cylinder controls the lifting and lowering of the boom, which is the main arm extending from the excavator chassis. This cylinder must bear significant loads, as it handles the weight of the boom itself as well as the dynamic forces during operation. Materials, bore size, and piston design are carefully engineered to ensure both strength and reliability. High-quality boom cylinders minimize deflection under heavy loads, providing precise control over boom motion.
The arm cylinder regulates the movement of the excavator arm, providing precise control for digging, lifting, and positioning tasks. Arm cylinders typically have slightly smaller bore diameters than boom cylinders but must still withstand considerable pressure and stress. Stroke length and rod diameter are selected based on the arm's size, ensuring efficient force transmission and stability during operation.
The bucket cylinder facilitates the tilting and lifting of the bucket, allowing the excavator to scoop, carry, and release materials effectively. Bucket cylinders experience frequent directional changes and high impact forces. They are designed with enhanced wear-resistant rods and reinforced seals to handle repetitive motion and pressure surges.
Some excavators use multi-stage telescopic cylinders for extended reach or specialized functions. These cylinders consist of nested stages that extend sequentially, allowing long strokes without increasing the overall cylinder length. Telescopic designs are particularly useful in compact machinery, where space constraints require more flexible solutions while maintaining lifting power and precision.
An excavator cylinder operates on fundamental hydraulic principles, transforming the energy of pressurized fluid into controlled mechanical motion. Understanding this process is key to appreciating the role and efficiency of the cylinder.
The cylinder functions by directing hydraulic fluid into one side of the piston, creating pressure that pushes the piston outward. When the fluid is routed to the opposite chamber, the piston retracts. This process generates linear force, controlling the movement of the boom, arm, or bucket. Because hydraulic fluid is essentially incompressible, energy transfer is highly efficient, and motion is precise. The cylinder is part of a closed hydraulic circuit that includes pumps, control valves, and reservoirs, all coordinated to maintain pressure and flow according to operator commands.
The force exerted by the cylinder is determined by the product of hydraulic pressure and piston area. Linear motion is then translated into mechanical work, such as lifting heavy loads or pushing earth. The correct selection of cylinder diameter and stroke length is essential to ensure the excavator can perform required tasks safely and efficiently without overloading the hydraulic system.
Modern excavators utilize advanced hydraulic circuits and electronic control systems. Cylinders respond directly to operator inputs via joystick controls, adjusting fluid flow and pressure in real time. This integration allows for precise control over speed, force, and trajectory, even under varying load conditions. Sensors and feedback mechanisms may also be incorporated to monitor cylinder position and detect potential issues, ensuring safe and efficient operation.
Selecting the right excavator cylinder requires careful evaluation of technical specifications:
⦁ Bore Diameter: Determines the maximum lifting and pushing force.
⦁ Rod Diameter: Influences strength and resistance to bending under load.
⦁ Stroke Length: Defines the movement range of the cylinder.
⦁ Operating Pressure: Must match the excavator’s hydraulic system for optimal performance.
⦁ Mounting Type: Ensures correct alignment and load distribution.
⦁ Material Quality: Impacts longevity and corrosion resistance, particularly in harsh environments.
The following table provides typical ranges for excavator cylinders:
Component |
Typical Range |
Description |
Bore Diameter |
50mm – 200mm |
Determines lifting force |
Rod Diameter |
28mm – 90mm |
Strength and durability |
Stroke Length |
140mm – 1200mm |
Defines linear motion range |
Operating Pressure |
250 – 320 bar |
Hydraulic system compatibility |
Mounting Type |
Pin, clevis, or flange |
Ensures proper alignment |
Material |
High-strength alloy steel |
Durability, corrosion, and wear resistance |
Proper specification ensures compatibility with the machine, optimal performance, and long-term reliability under demanding operational conditions.
Excavator cylinders are versatile and essential for various heavy-duty tasks:
⦁ Earthmoving and Excavation: Lift and lower soil, rocks, and debris with precision.
⦁ Material Handling: Operate buckets and attachments for efficient transportation of materials.
⦁ Heavy Lifting: Provide controlled force for lifting structural elements or construction components.
⦁ Mining Operations: Work reliably under high loads and harsh environmental conditions.
⦁ Road and Infrastructure Projects: Assist in grading, leveling, and debris removal with precision.
By converting hydraulic energy into controlled mechanical force, excavator cylinders provide efficiency, reliability, and precision, which are critical in modern construction, mining, and civil engineering projects.
Proper maintenance ensures an excavator cylinder delivers optimal performance over its service life:
Inspect seals, rods, and bushings regularly for signs of wear or damage.
Check hydraulic fluid quality to avoid contamination and maintain viscosity.
Ensure the system operates within designated pressure limits to prevent stress-related failures.
Store equipment in clean, dry environments to prevent corrosion and contamination.
Implement preventive maintenance schedules to replace worn components proactively.
Routine maintenance reduces downtime, maximizes service life, and ensures safe and efficient operation under all conditions.
In conclusion, the excavator cylinder is an essential component that powers the lifting, digging, and precise movements of modern excavators. Its performance relies on high-quality materials, precision engineering, and seamless integration with hydraulic systems. Understanding the structure, types, and specifications of excavator cylinders can significantly improve operational efficiency and equipment reliability. For those seeking durable, reliable, and high-performance hydraulic solutions, we encourage you to explore the expertise and product offerings of Shandong Junfu Hydraulic Technology Co., Ltd. Our team can provide detailed guidance, technical support, and tailored solutions to meet your machinery requirements. Whether you are upgrading existing equipment or specifying new systems, we are ready to assist and ensure your operations achieve maximum productivity and longevity.
Q1: What is the main function of an excavator cylinder?
A: It converts hydraulic pressure into linear mechanical motion to control the excavator’s boom, arm, and bucket movements.
Q2: How does a cylinder generate force?
A: Pressurized hydraulic fluid pushes the piston inside the cylinder, creating linear motion and mechanical force.
Q3: What are the common types of excavator cylinders?
A: Boom cylinders, arm cylinders, bucket cylinders, and optional telescopic cylinders.
Q4: How do I select the right cylinder for my excavator?
A: Consider bore diameter, rod diameter, stroke length, operating pressure, and mounting type.
Q5: Can the cylinder be customized?
A: Yes, manufacturers like Junfu Hydraulics provide OEM/ODM solutions tailored to specifications.
Q6: What maintenance is required for excavator cylinders?
A: Inspect seals, rods, and bushings regularly; check hydraulic fluid; follow preventive maintenance routines.
Q7: Why is material quality important for excavator cylinders?
A: High-strength steel and corrosion-resistant treatments ensure the cylinder withstands heavy loads, abrasive materials, and harsh operating environments.
