Views: 0 Author: Site Editor Publish Time: 2025-05-16 Origin: Site
Pneumatic cylinders play a vital role in many industries, using compressed air to create linear motion. Their efficiency and versatility make them essential for automation, robotics, and manufacturing.In this post, we’ll explore the different types of pneumatic cylinders, their functions, and help you understand how to choose the right one for your application. By the end, you'll be equipped to select the best pneumatic cylinder for your needs.
A pneumatic cylinder is a device that converts compressed air into linear motion. By using air pressure, it generates force to move machinery and other objects. Pneumatic cylinders are a crucial part of automation systems and are used in various industries, from manufacturing to robotics.
Pneumatic cylinders work on a simple principle: compressed air creates force inside the cylinder, causing the piston to move. This motion is transferred through the piston rod to the attached load. When air is introduced, it pushes the piston, creating the desired linear movement.
Compressed air enters the cylinder through ports on one end. The pressure inside the cylinder forces the piston to move, which drives the piston rod. The movement can be in one direction (in single-acting cylinders) or both directions (in double-acting cylinders). This motion can then perform various tasks, such as lifting, pushing, or pulling.
A typical pneumatic cylinder consists of a few key components:
Piston: The internal disc that divides the cylinder into two chambers. It moves when air pressure is applied.
Piston Rod: A strong rod connected to the piston. It transmits the movement to external machinery.
Cylinder Body: The outer casing that holds all the components together and keeps the air pressure sealed.
End Caps: Located at both ends of the cylinder, these caps house the air inlet and outlet ports and help seal the cylinder.
Seals and Guide Rings: Seals prevent air leakage, and guide rings ensure smooth movement of the piston inside the cylinder.
These components work in unison to produce reliable and efficient motion for various industrial tasks.
Pneumatic cylinders are widely used across many industries because of their ability to generate reliable force with compressed air. Let’s explore how they play a key role in various sectors.
Pneumatic cylinders are essential in a variety of applications, including:
Manufacturing: Used in assembly lines for tasks like lifting, pushing, and clamping.
Robotics: Help robots move parts and materials with precision.
Automotive: Applied in car production for lifting, welding, and part handling.
Packaging: Assist in sealing, sorting, and positioning products on packaging lines.
These industries rely on pneumatic cylinders for efficient and powerful automation.
In automation, pneumatic cylinders speed up repetitive tasks. They enable precise movements in robotic arms, conveyors, and machinery. By reducing the need for manual labor, they improve efficiency, accuracy, and overall production time. Pneumatic cylinders also allow for flexible automation setups.
Pneumatic cylinders offer several advantages:
Cleanliness: Since they operate with air, they don’t introduce contaminants, making them ideal for clean environments like food processing and medical equipment.
Safety: Pneumatic systems are less likely to overheat or catch fire compared to hydraulic or electrical systems.
Low Maintenance: These cylinders have fewer moving parts, which means they require less maintenance than other types of actuators.
Their reliability, ease of use, and low maintenance make them highly valued in various industries.
Pneumatic cylinders come in various types, each designed for specific applications. Let's take a deeper look at the most common types and how they work.
Single-acting cylinders are simple devices that use air pressure to move the piston in one direction. They rely on a spring or external load to return the piston to its original position.
In single-acting cylinders, air pressure is applied on one side of the piston to cause movement. When the pressure is released, the piston returns either by spring force or an external load, like gravity.
Clamping: Holding workpieces in place
Punching: Used in machines that require forceful punches
Positioning: For accurate placement of components in automation
Pros:
Simple design, easy to use
Cost-effective for light-duty applications
Cons:
Limited force output compared to double-acting cylinders
Stroke length is also restricted by the spring
Ideal for light-duty tasks like clamping or simple automation. They are great for operations that don’t require significant force or complex movement.
These cylinders use air pressure to move the piston in both directions. Unlike single-acting cylinders, they operate on both sides of the piston.
Compressed air is introduced into either side of the piston, causing it to move in both directions. This design allows for both extension and retraction without relying on springs or external loads.
Pros:
Provides higher force output
Consistent performance with both extension and retraction
Cons:
Higher air consumption
More complex design compared to single-acting cylinders
Gate operations: Used for controlling gates or valves
Valve control: Helps operate valves in pipelines
Heavy-duty lifting: Suitable for lifting heavy materials
Double-acting cylinders are preferred when more force or precision is needed for complex tasks.

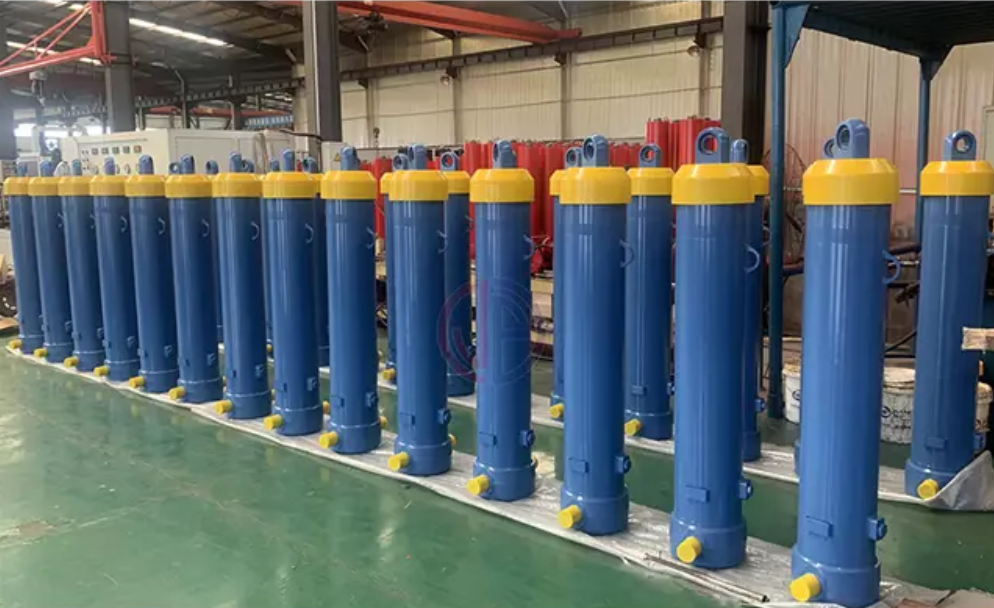

Telescoping cylinders are designed with segmented pistons that extend and retract to provide a greater reach. They can be single or double-acting.
Compact design, ideal for limited space
They allow for longer strokes in a smaller footprint
Crane operations: Lifting and extending
Material handling: Moving heavy items in tight spaces
Loading docks: Used in equipment for loading and unloading
Rodless cylinders move the piston and the load carrier in a linear path without an external piston rod. This design saves space and allows for greater stroke lengths.
More compact than traditional cylinders
Larger stroke lengths possible in smaller spaces
Suitable for high-speed motion tasks
Material handling: Moving goods along a conveyor
Positioning: Precisely positioning components in a machine
Cutting: For machines that require linear motion
These cylinders feature a piston rod that extends through both ends of the cylinder. They provide equal force during both extension and retraction strokes.
Balanced force for both directions
Perfect for precise positioning
Used in automation processes that require balanced force in both directions.
Rotary cylinders convert pneumatic energy into rotary motion. They have a piston rod designed to produce rotational force, making them different from linear motion cylinders.
Compact design: Perfect for turning mechanisms in tight spaces
Common uses: Robotics, packaging, and valve actuation
Rotary cylinders are an excellent choice when rotational movement is required in an industrial setup.
Choosing the right pneumatic cylinder for your application is essential for efficiency and performance. Let’s break down the key factors to consider when selecting a cylinder.
There are different types of pneumatic cylinders, each with its own purpose. Consider the following:
Single-acting: Used for light-duty tasks where movement in one direction is sufficient.
Double-acting: Ideal for applications requiring movement in both directions with more force.
Telescoping: Great for tasks where extended reach and compactness are important.
The bore size of the cylinder is essential for determining its force output. To calculate force, use this formula:Force = Pressure x Area of Piston
Larger bore sizes generate more force.
Always ensure the bore size is sufficient to handle the load in your application.
Stroke length refers to how far the piston can travel. Accurate stroke selection is crucial to ensure the cylinder can complete the required movement. Too short, and it won’t reach the target position; too long, and it could waste space and energy.
The speed of your cylinder impacts how quickly tasks are completed. For fast-paced automation, you'll need cylinders capable of high-speed operations. This can be controlled by adjusting air pressure or using flow control valves. Make sure your cylinder speed matches the requirements of your application.
There are different mounting styles, like **flange mounts**, **foot mounts**, and **clevis mounts**. Match the mounting style to the task at hand to ensure stability and correct alignment during operation. The right mount helps distribute forces evenly and prevents misalignment during the cylinder’s movement.
Consider the operating environment when selecting a cylinder. If the cylinder will be exposed to high temperatures, corrosion, or cleanliness issues, choose materials that can withstand those conditions, like stainless steel for high-temperature applications.
To ensure the cylinder performs as needed, you’ll need to calculate the required force. Here’s a step-by-step guide:
Identify the load: What is the weight of the object the cylinder needs to move?
Calculate the required force: Use the formula:Force = Pressure x Area of Piston
Factor in the speed: Ensure the cylinder can achieve the required speed for the task.
Select the cylinder: Based on the calculated force, choose a cylinder with the appropriate bore size.
If a cylinder needs to move a 100 kg load, and you need a force of 500 N, make sure the cylinder you select can generate that force. Multiply the pressure by the piston area to ensure the selected cylinder meets the required force for the task.By carefully considering these factors, you can choose the ideal pneumatic cylinder for your needs.
Choosing the wrong pneumatic cylinder can lead to inefficiencies or even damage. Here are some common errors and how to avoid them.
It's easy to overlook the specific requirements of your application. Not considering the load the cylinder must move, the required stroke length, or how it fits into the overall process can lead to underperformance.
Selecting a cylinder with too little force is a common mistake. If the cylinder can’t generate enough force for the task, it might not perform well or could fail entirely.
Failing to account for mounting style can lead to alignment issues. Also, if the cylinder isn’t suited for environmental conditions like heat, moisture, or contaminants, it can degrade faster.
To avoid these mistakes, start by carefully evaluating the load, stroke length, and specific task needs. Select a cylinder that meets these requirements and has the proper mounting style. Always match the cylinder’s material to the environment it will operate in.
There are many online tools and calculators to help determine the correct bore size, force, and stroke length. These tools help ensure you make precise selections based on your application needs, avoiding errors and improving performance.H2: ISO Standards for Pneumatic CylindersH3: What Are ISO Standards for Pneumatic Cylinders?Overview of ISO 15552, ISO 6432, and other relevant standardsThe importance of adhering to ISO standards for compatibility and interchangeabilityH3: How Do ISO Standards Affect the Selection of Pneumatic Cylinders?Ensuring a smooth integration into systemsBenefits of using standardized pneumatic cylinders in international manufacturing
In this article, we covered the main types of pneumatic cylinders: Single-Acting, Double-Acting, Telescoping, Rodless, Through Rod, and Rotary. Each type serves a unique purpose depending on your application needs.To select the best cylinder, consider factors like load, stroke length, and speed. Understanding technical specifications ensures optimal performance for your system.By choosing the right cylinder, you’ll improve efficiency, reduce maintenance, and ensure smoother operations.
Q: What is the main difference between a single-acting and double-acting pneumatic cylinder?
A: Single-acting cylinders use air pressure in one direction and rely on a spring or external load for retraction. Double-acting cylinders use air pressure for both extension and retraction, providing more force and precision.
Q: How do you calculate the force needed for a pneumatic cylinder?
A: Force is calculated using the formula: Force = Pressure x Area of Piston. Ensure the bore size matches the force needed for your application.
Q: Can a pneumatic cylinder be used in high-temperature environments?
A: Yes, but you must choose materials and seals that can withstand high temperatures, such as stainless steel or heat-resistant elastomers.
Q: What are the benefits of using telescoping cylinders over standard pneumatic cylinders?
A: Telescoping cylinders provide extended reach in a compact design, making them ideal for applications with limited space while offering longer strokes.
