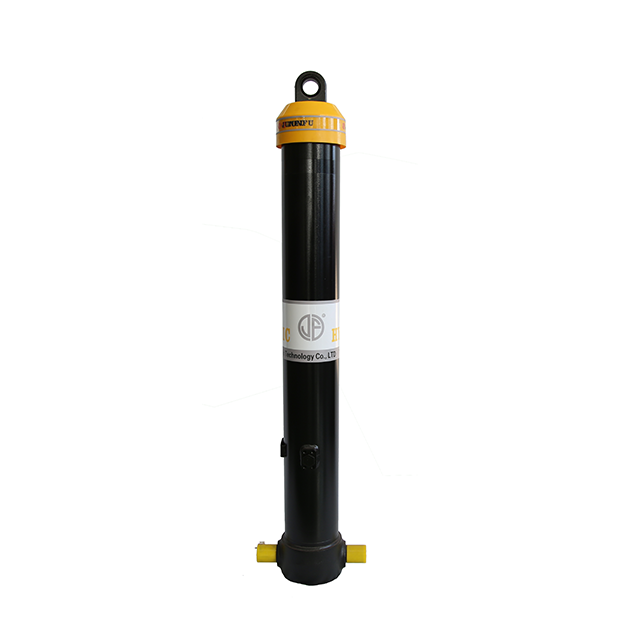

FE Front End Telescopic Hydraulic Cylinder

Material: hot rolled 27 simn seamless steel with hard chrome
The standard FC-range consists of cylinders with a first stage diameter of 110 to 240mm and a stroke ranging from 3100 to 9530,Tipping capacity ranges up to 100 tons
Usage: dump truck hydraulic lifting system

Availability:

Quantity:



Inquire Add to Basket

Model:
FE
Brand:
JUNFU

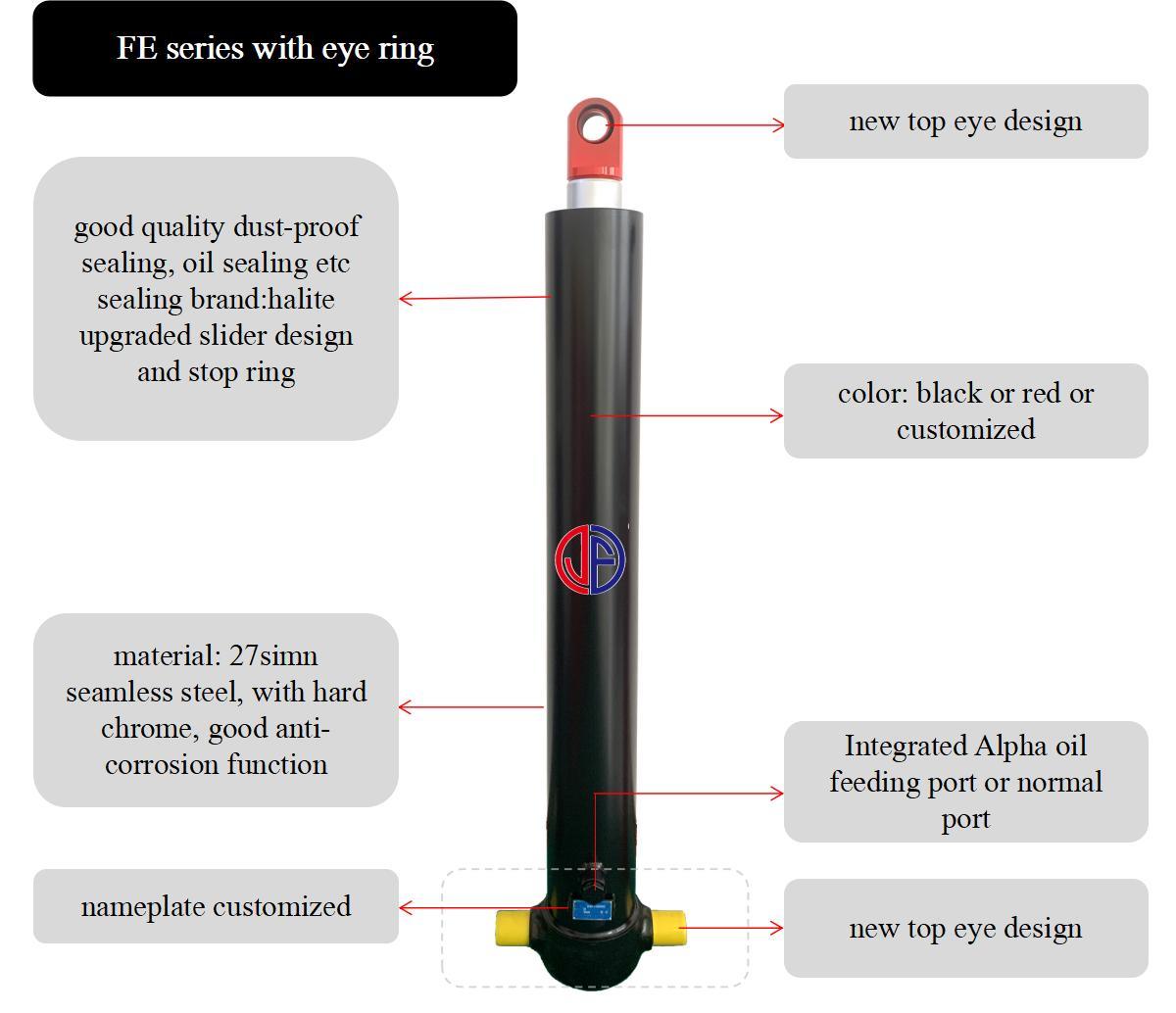

Product Advantage

Related Products

FE149-4-04940 Dump Truck Front-END hydraulic cylinders manufacturers

FE Dump Truck Front-END hydraulic cylinders

FE dump truck single acting 3-stages telescopic hydraulic cylinder

FEA129-4-4320 Dump Truck Front-END Telescopic Hydraulic Cylinder

FEE - Front-end Cylinder with Piston Eye And Bottom Eye with Pin

FEE front-end telescopic hydraulic cylinder

FC Front End Hydraulic Cylinder

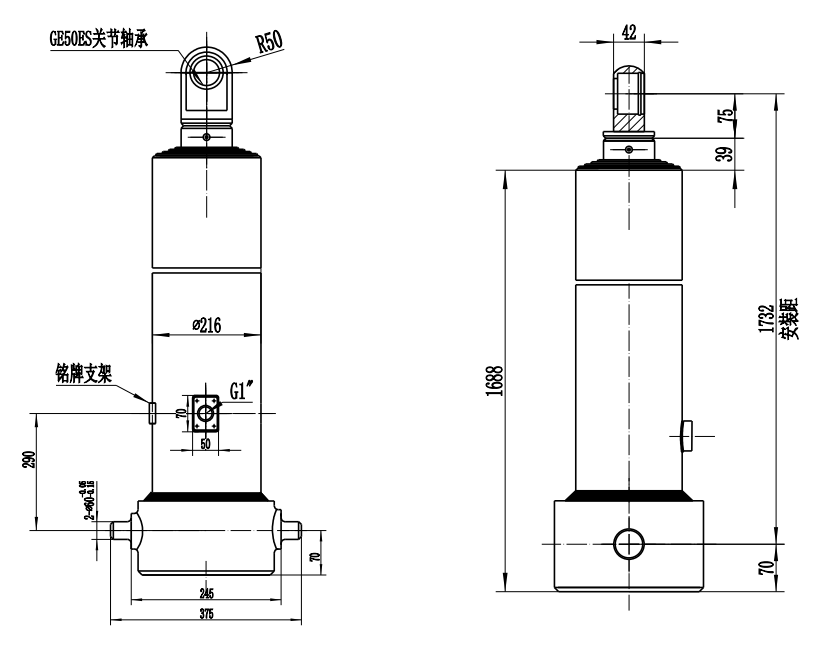

NO	type	cylinder dia (mm)	Rated pressure Mpa	stroke (mm)	mounting distance K	total length H	downside trunnion distance B1/B	shaft dia φ	weight（kg)	sleeve dia D	oil port M
1	FEA129-4-4320	129	20	4320	1365	1482	201/331	60	144	171	G1"
2	FE149-4-04940	149	20	4940	1529	1639	201/331	60	184	171	G1"
3	FEA157-4-5540	157	20	5540	1649	1764	245/375	60	223	181	G1"
4	FE169-5-5355	169	20	5355	1365	1480	245/375	60		193	G1"
5	FE169-5-5780	169	20	5780	1559	1674	245/375	60	250	193	G1"
6	FE169-5-6180	169	20	6180	1559	1674	245/375	60	244	193	G1"
7	FE169-5-6380	169	20	6380	1612	1727	245/375	60		193	G1"
8	FE179-5-5550	179	20	5550	1427	1542	245/375	60	249	203	G1"
9	FE179-5-5881	179	20	5881	1550	1690	245/375	60	255	203	G1"
10	FE191-5-06180	191	20	6180	1527	1647	245/375	60	290	216	G1"
11	FEA191-5-7130	191	20	7130	1732	1852	245/375	60	323	216	G1"
12	FE191-5-06134	191	20	6134	1555	1675	245/375	70		216	G1"

NO	type	cylinder dia (mm)	Rated pressure Mpa	stroke (mm)	mounting distance K	total length H	downside trunnion distance B1/B	shaft dia φ	weight（kg)	sleeve dia D	oil port M
1	FEA129-4-4320	129	20	4320	1365	1482	201/331	60	144	171	G1"
2	FE149-4-04940	149	20	4940	1529	1639	201/331	60	184	171	G1"
3	FEA157-4-5540	157	20	5540	1649	1764	245/375	60	223	181	G1"
4	FE169-5-5355	169	20	5355	1365	1480	245/375	60		193	G1"
5	FE169-5-5780	169	20	5780	1559	1674	245/375	60	250	193	G1"
6	FE169-5-6180	169	20	6180	1559	1674	245/375	60	244	193	G1"
7	FE169-5-6380	169	20	6380	1612	1727	245/375	60		193	G1"
8	FE179-5-5550	179	20	5550	1427	1542	245/375	60	249	203	G1"
9	FE179-5-5881	179	20	5881	1550	1690	245/375	60	255	203	G1"
10	FE191-5-06180	191	20	6180	1527	1647	245/375	60	290	216	G1"
11	FEA191-5-7130	191	20	7130	1732	1852	245/375	60	323	216	G1"
12	FE191-5-06134	191	20	6134	1555	1675	245/375	70		216	G1"
