FEE - Front-end Cylinder with Piston Eye And Bottom Eye with Pin

Share to:

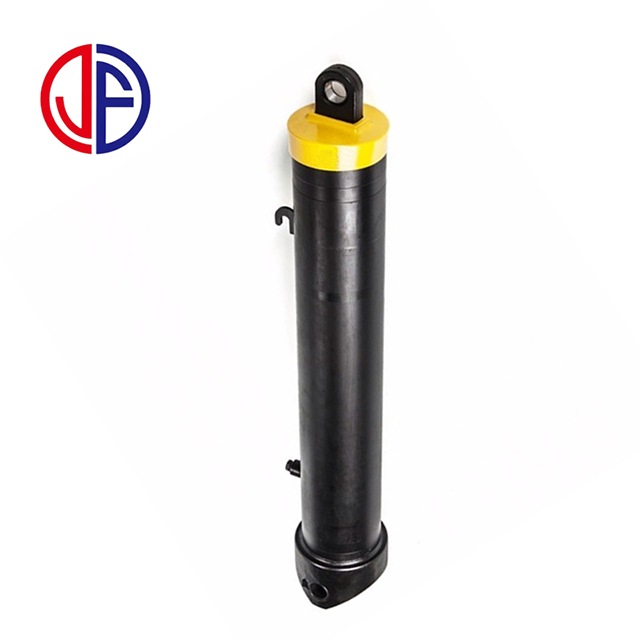

FEE front-end telescopic hydraulic cylinder

FEE (Front Elevator with Ears at Both Ends) uses a pin-connected mounting method that simplifies the cylinder's installation and provides adequate anti-eccentric load capability at working pressures up to 250 bar. The standard range includes cylinders with first-stage diameters from 110 mm to 226 mm and strokes from 2785 mm to 9030 mm.

Availability:

Quantity:



Inquire Add to Basket

Model:
FEE
Brand:
JUNFU

Product Description

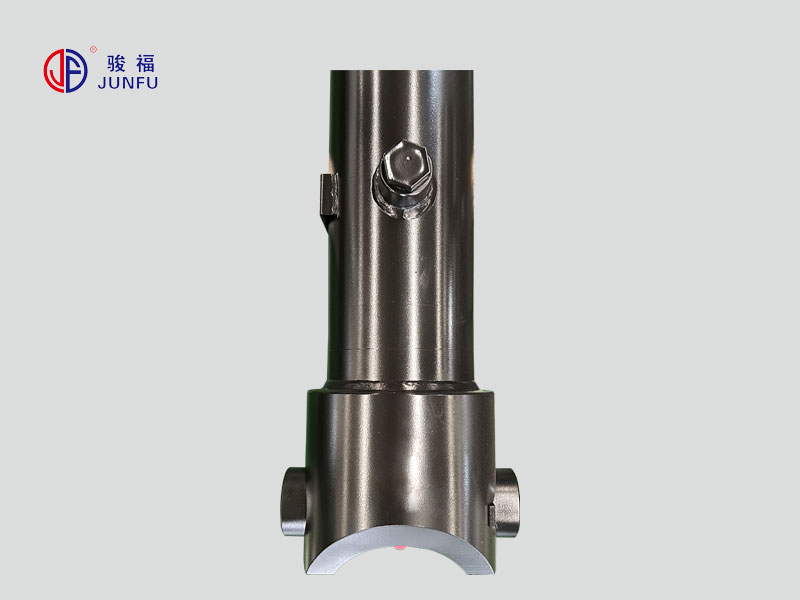

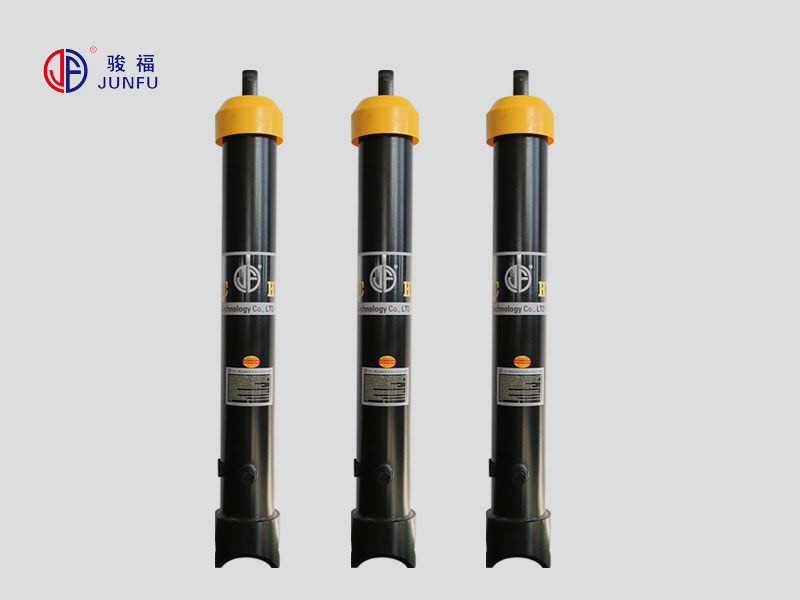

FEE front-end telescopic hydraulic cylinder

Our FEE Front-End Telescopic Hydraulic Cylinder is specifically engineered to provide high-performance lifting power for heavy-duty applications across various industries, including construction, mining, and transportation. This hydraulic cylinder’s front-end telescopic design delivers impressive strength while offering space efficiency and smooth operation, making it ideal for machinery where high force and compact installation are essential.

|

Product Description

1）good quality dust-proofsealing, oil sealing etcsealing brand:haliteupgraded slider design and stop ring

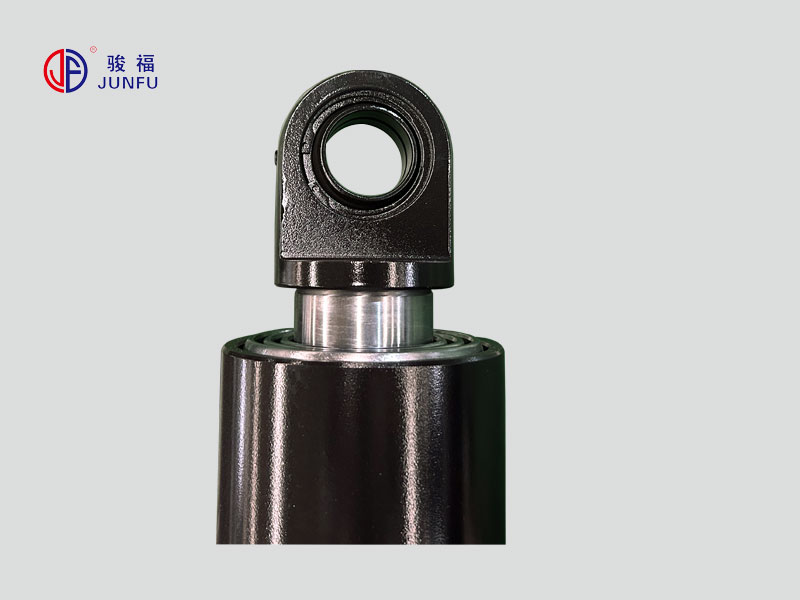

2）top eye design

3) material:27simn seamlesssteel. with hard chrome, goodanti-corrosion function

4)Integrated Alpha oil feedingport or noral port

5)color: black or red or customized

|

Company Profile

We mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.

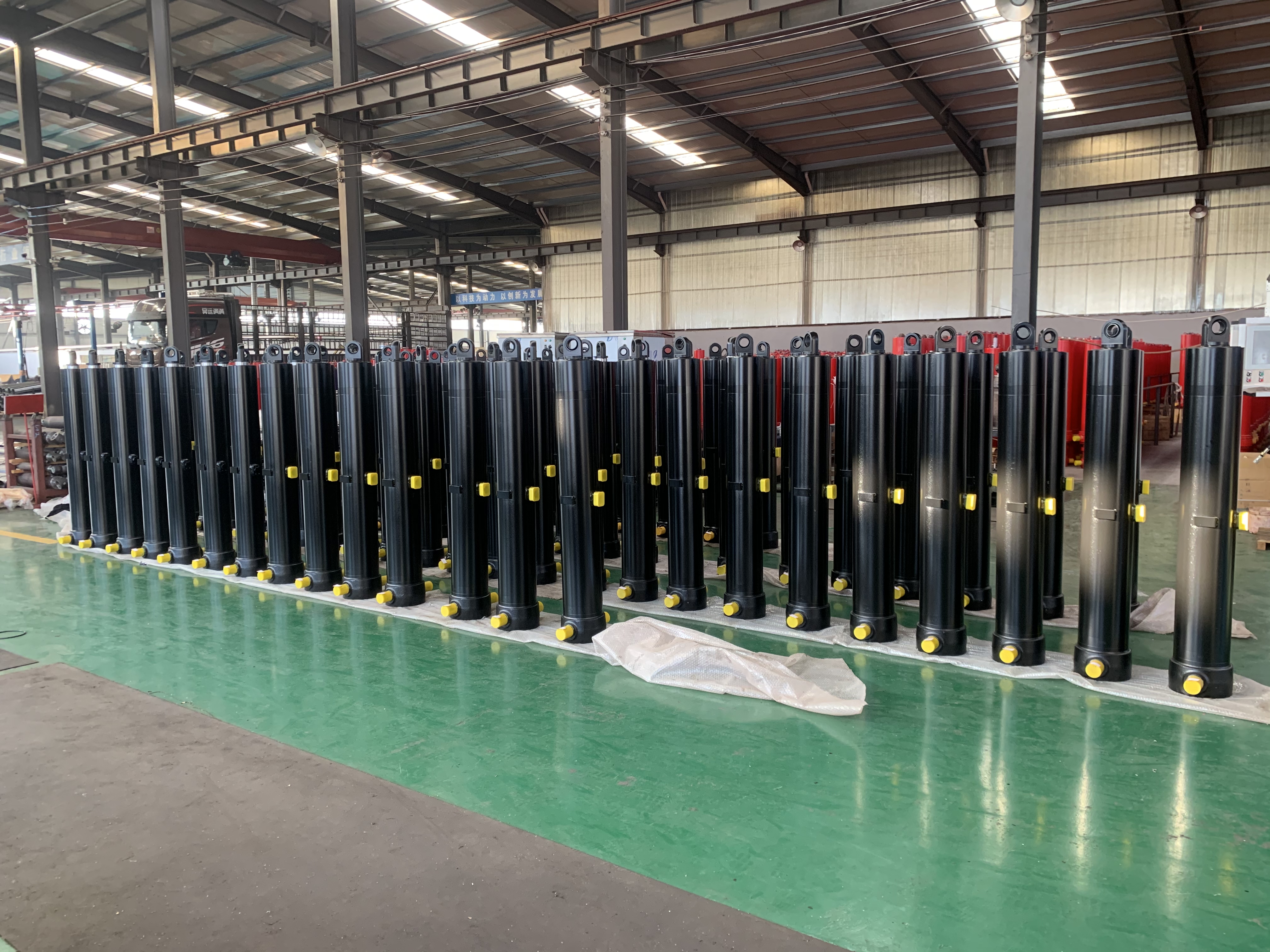

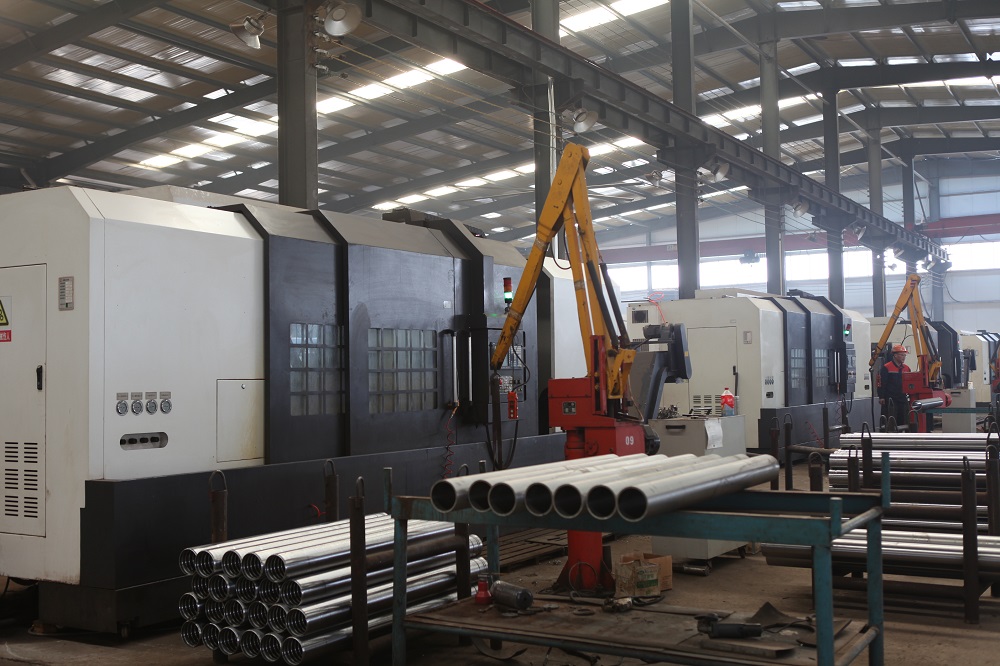

We with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery.

We have obtained CE, ISO9001,IAFT16949 etc certificates.

|

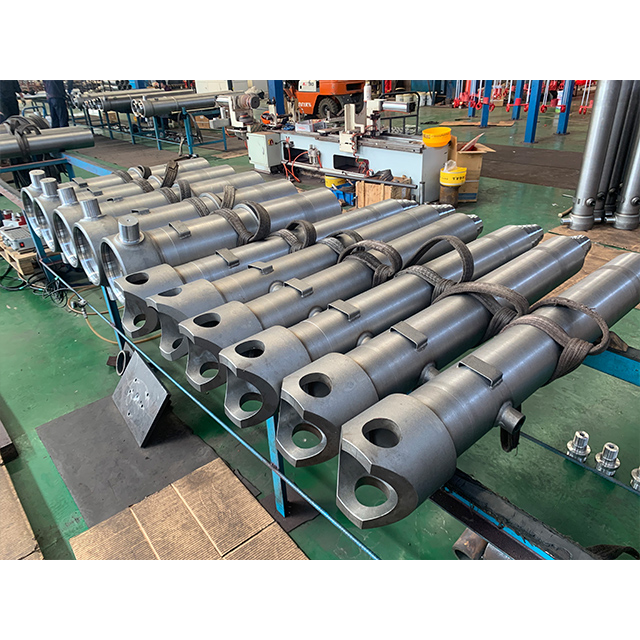

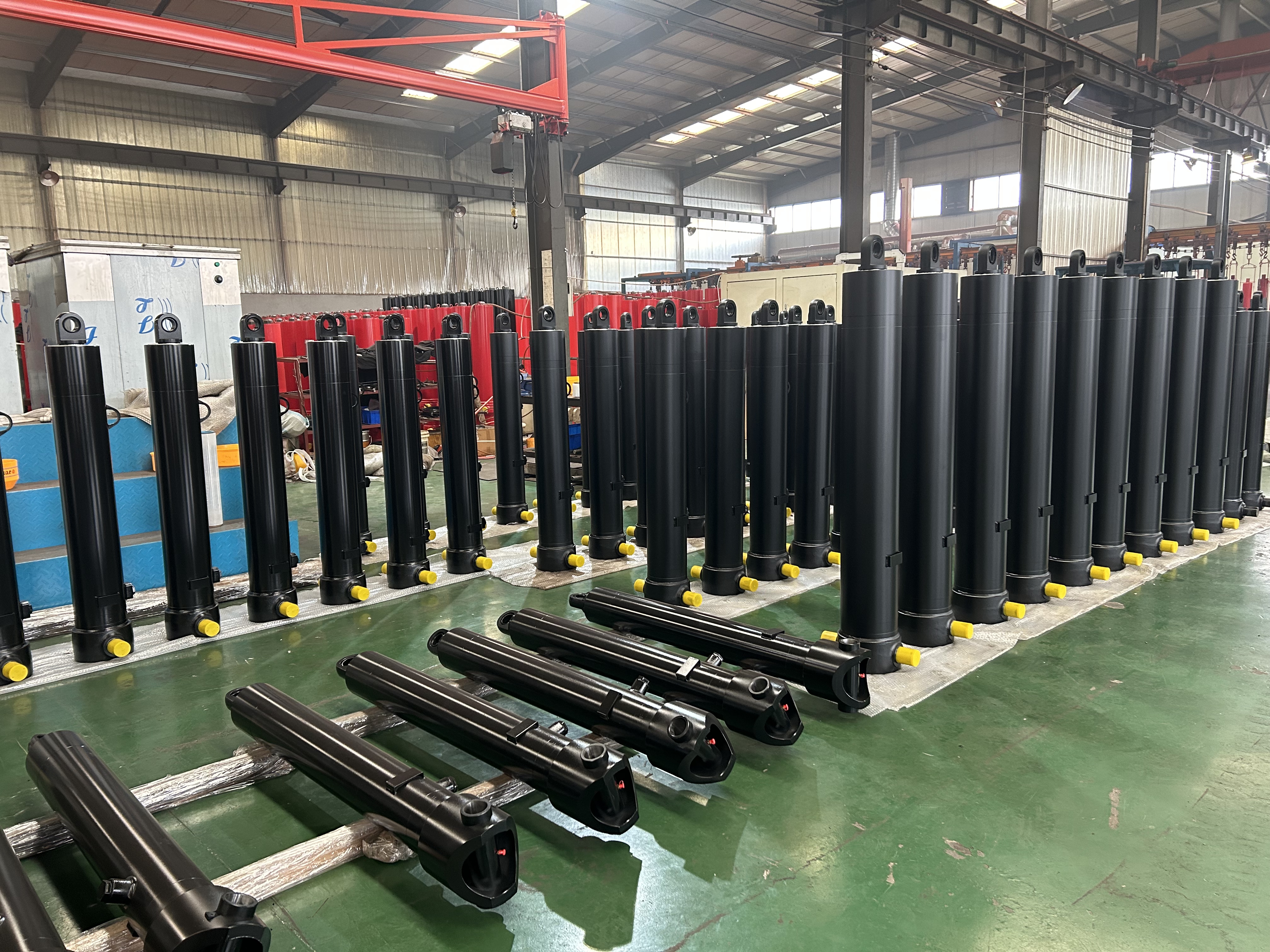

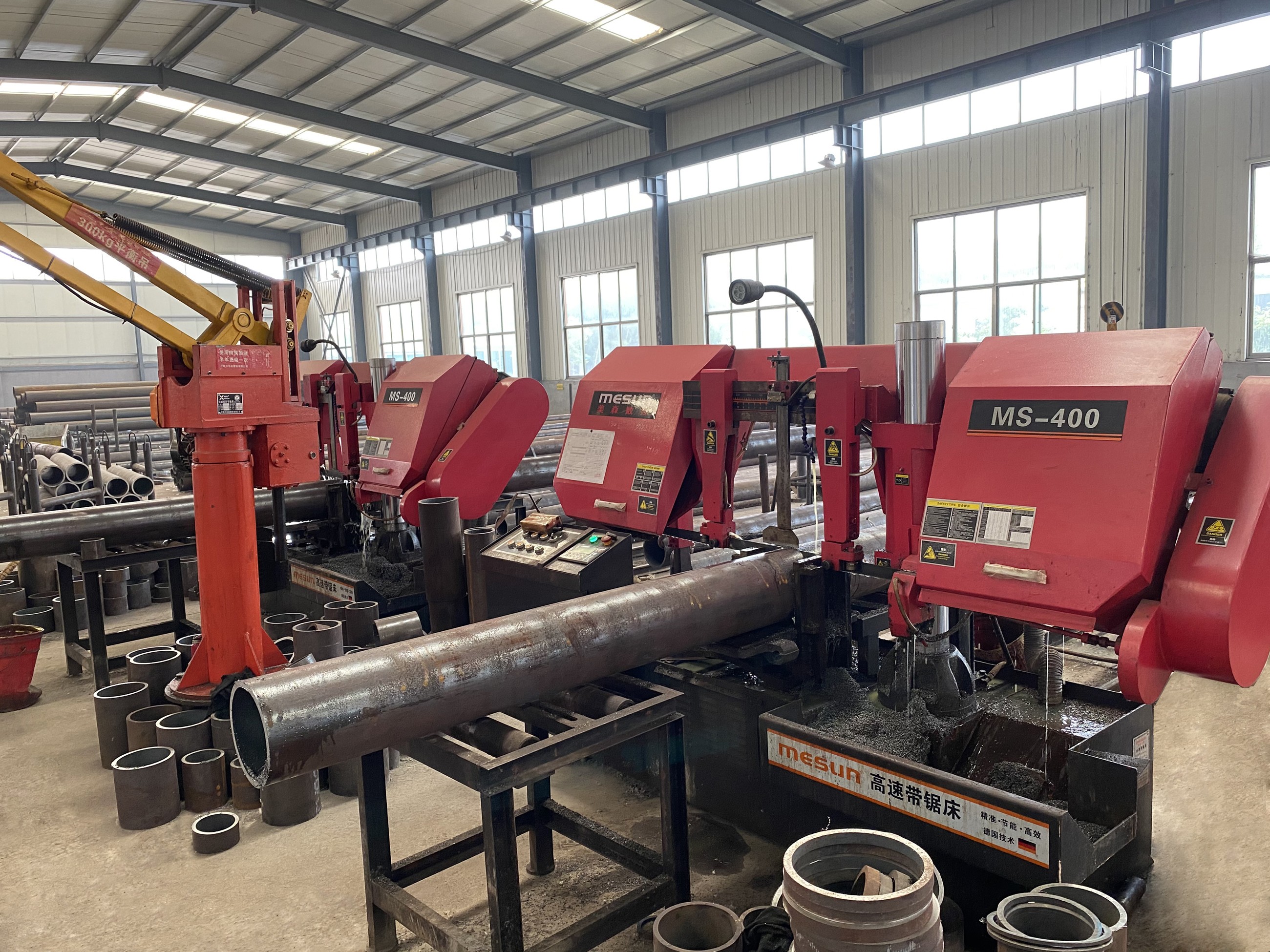

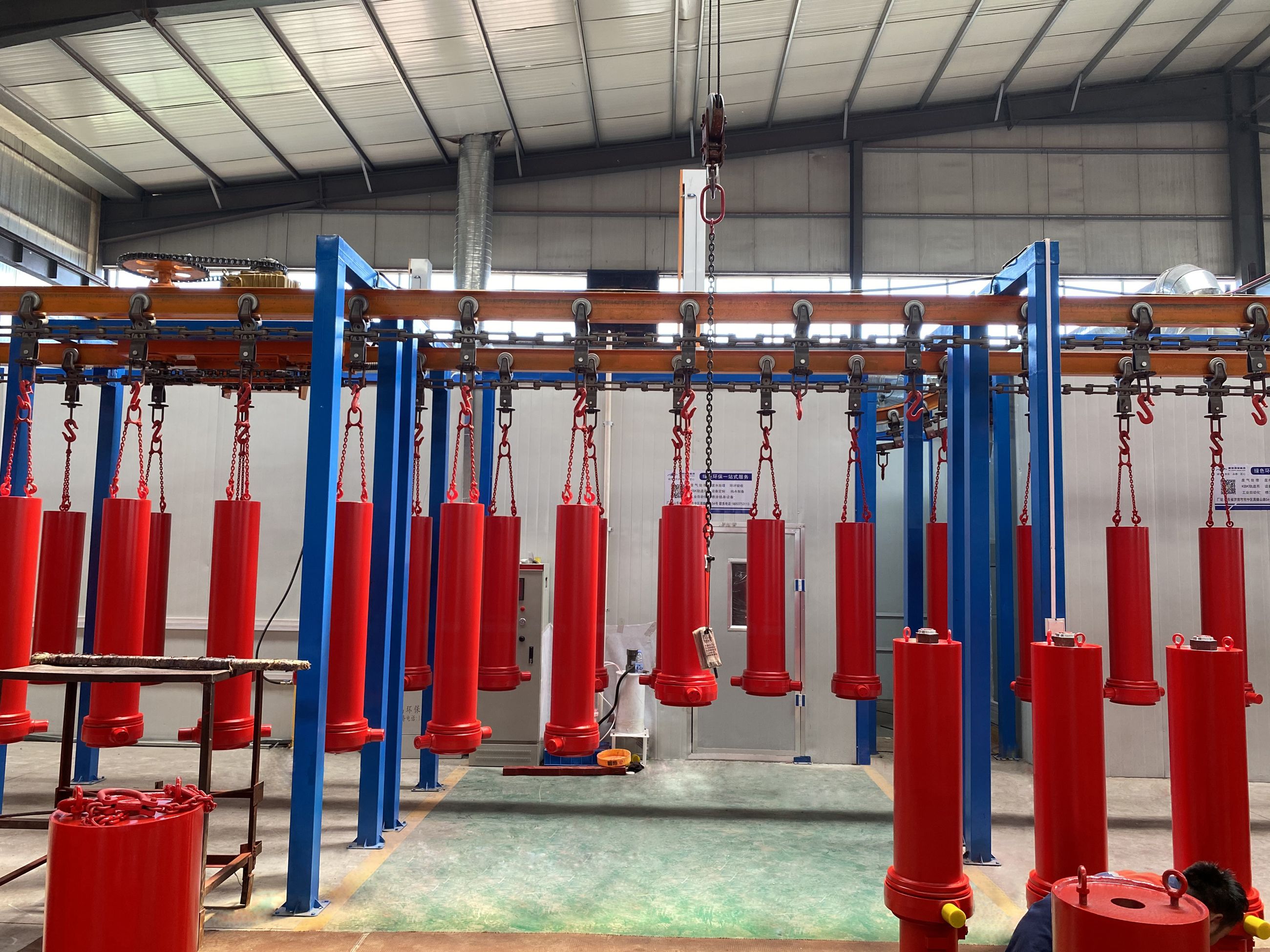

Production Process

|

Certifications

|

Data Sheet

type	Cylinder Dia (mm)	Press(bar)	Stroke (mm)	Mounting distance K	Total length H	Tipping weight(ton)	Weight (kg)	Oil port M
FEE A149-4-4020	221	250	4020	1375	1428	47-57	151	G1’’
FEE A149-4-4660	209	250	4660	1615	1668	46-61	170	G1’’
FEE A191-5-5830	221	250	5830	1552	1605	66-78	265	G1’’
FEE A191-5-6230	201	220	6230	1632	1685	57-78	279	G1’’
FEE A191-5-5830	221	220	5830	1552	1614	80-100	315	G1’’
FEE A214-5-6230	211	220	6230	1632	1694	79-102	332	G1’’
FEE A214-5-7130	211	190	7130	1832	1894	67-94	373	G1’’
