JFISO04100
JUNFU
8413602290

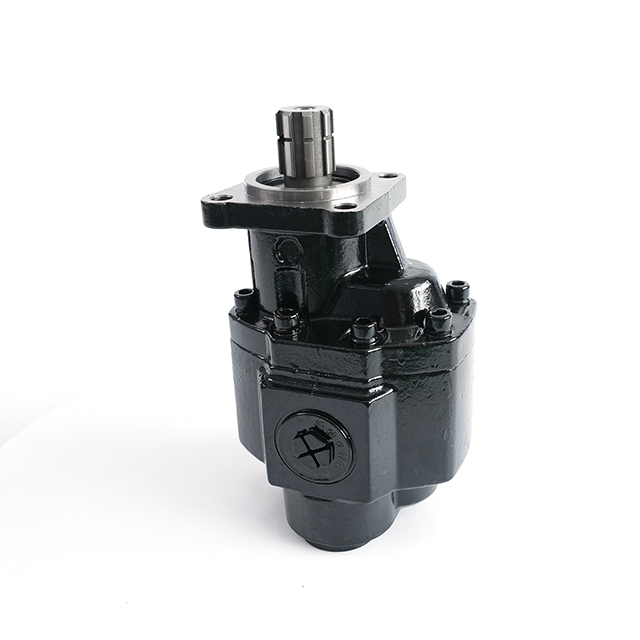

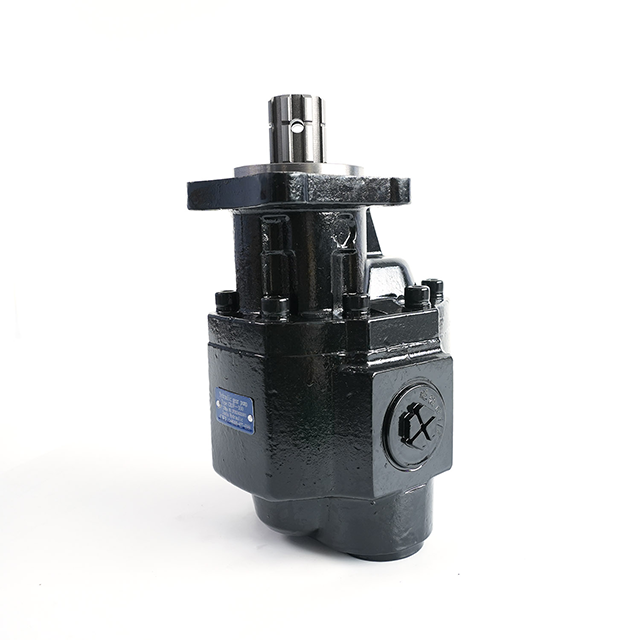

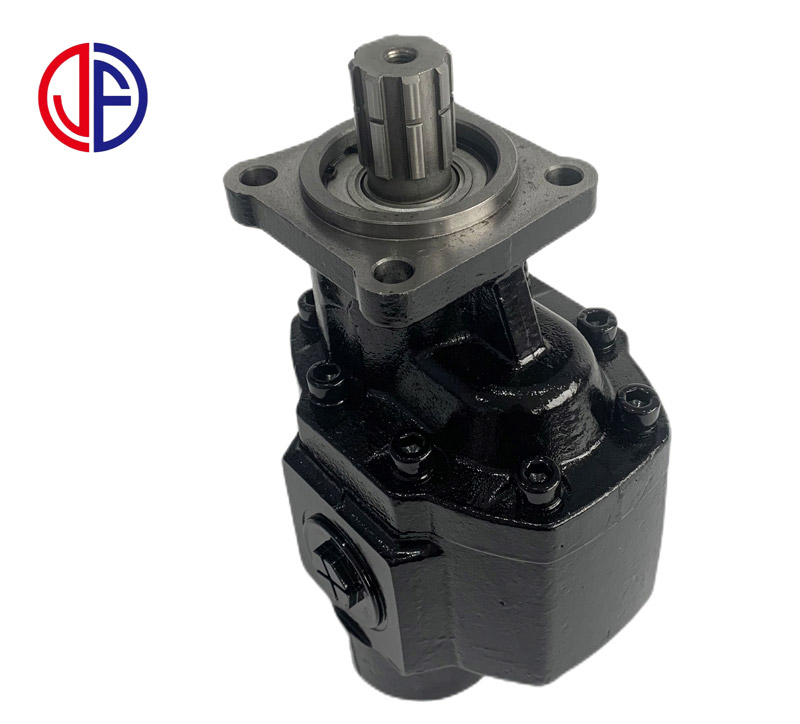

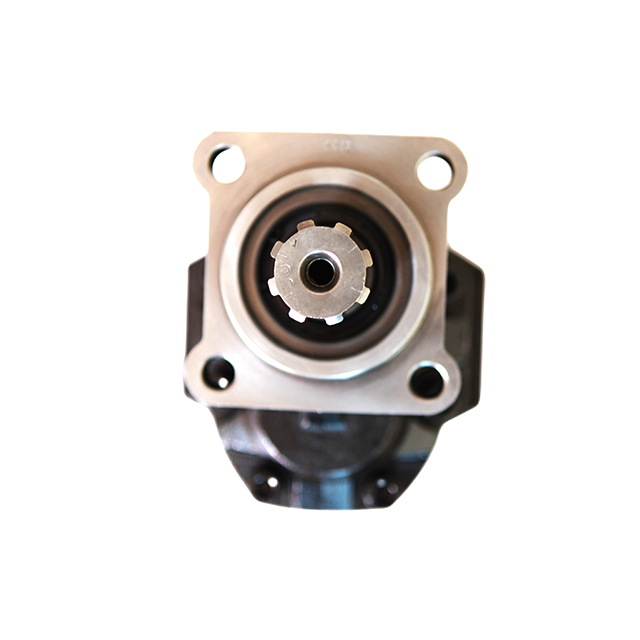

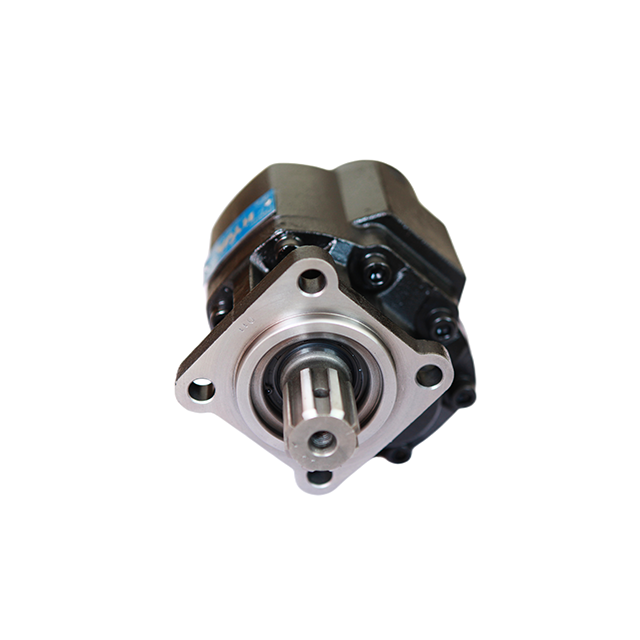

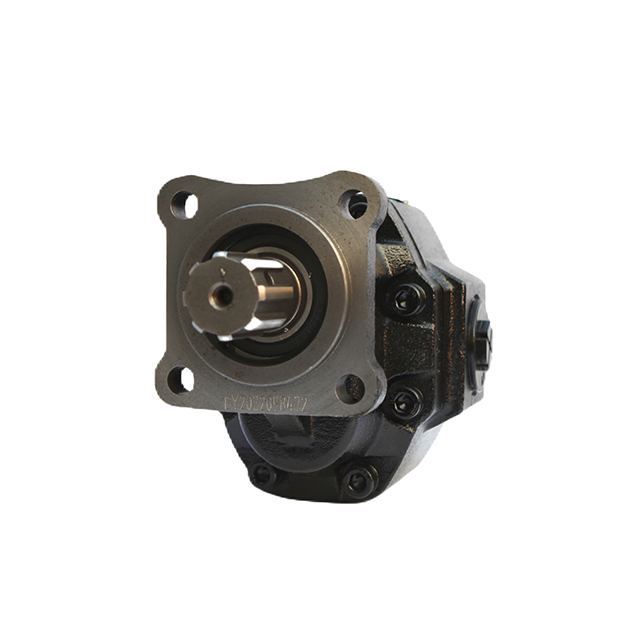

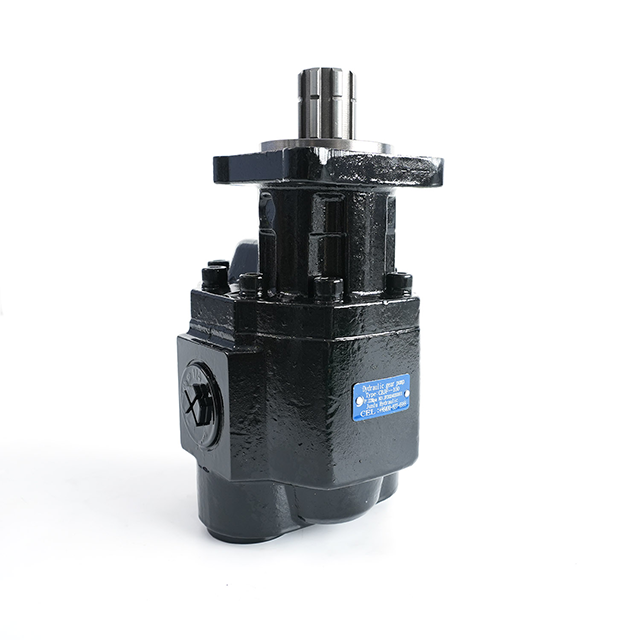

Our hydraulic pump is designed to efficiently convert mechanical energy from the prime mover into hydraulic pressure. This essential component is crucial for various industrial applications where the transfer of power through fluid is required. With a robust construction and reliable performance, our hydraulic pump ensures smooth and consistent operation. Whether used in manufacturing, construction, or automotive industries, our hydraulic pump delivers the power and precision needed to get the job done. Trust in our product to provide the hydraulic pressure necessary for your equipment to function at its best.

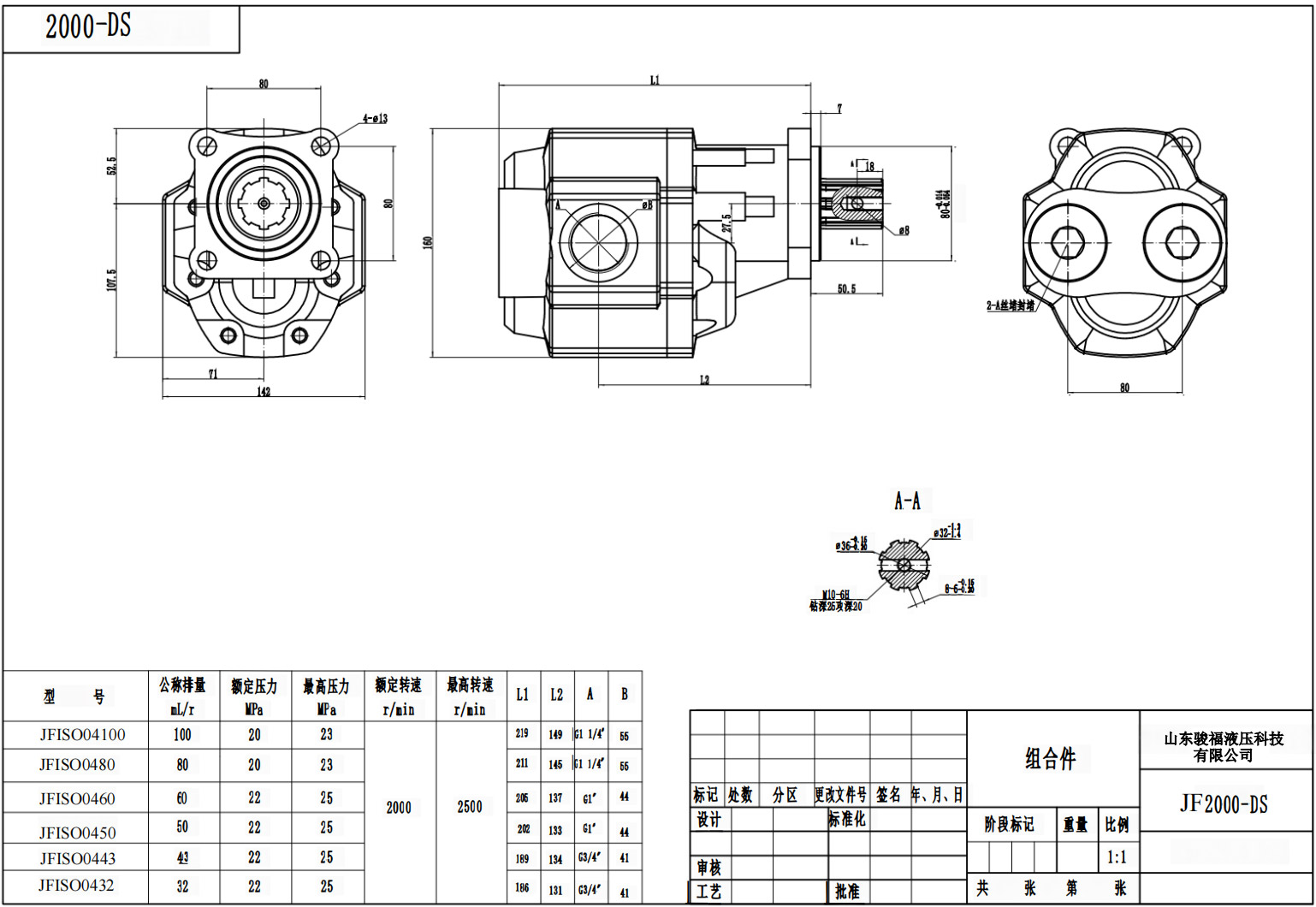

| No | part no | flow (ml/r) | rated pressure （MPA) | Max Pressure (MPA) | rated speed (rpm) | max speed （rpm) | volumertic efficiency | oil port | oil temperature (℃） |
| 1 | JFISO04120 | 120 | 20 | 25 | 2000 | 2500 | ≥92% | G1 1/2" | -40℃ to 80℃ |
| 2 | JFISO04110 | 110 | 20 | 25 | 2000 | 2500 | |||
| 3 | JFISO04100 | 100 | 20 | 25 | 2000 | 2500 | G 1 1/4" | ||
| 4 | JFISO0490 | 90 | 20 | 25 | 2000 | 2500 | |||
| 5 | JFISO0480 | 80 | 20 | 25 | 2000 | 2500 | |||
| 6 | JFISO0460 | 60 | 20 | 25 | 2000 | 2500 | G 1" | ||
| 7 | JFISO0450 | 50 | 20 | 25 | 2000 | 2500 | |||
| 8 | JFISO0440 | 40 | 20 | 25 | 2000 | 2500 | G 3/4" |
| Feature: 1. material: cast iron 2. copper thrust plate, abrasive-proof 3. 4 oil port design, flexible 4. bi-directional,L & R 5.4 flange connection, 8 spline, standard hyva design 6. PTO driven, specially for tipper |
Our hydraulic pump is designed to efficiently convert mechanical energy from the prime mover into hydraulic pressure. This essential component is crucial for various industrial applications where the transfer of power through fluid is required. With a robust construction and reliable performance, our hydraulic pump ensures smooth and consistent operation. Whether used in manufacturing, construction, or automotive industries, our hydraulic pump delivers the power and precision needed to get the job done. Trust in our product to provide the hydraulic pressure necessary for your equipment to function at its best.
| No | part no | flow (ml/r) | rated pressure （MPA) | Max Pressure (MPA) | rated speed (rpm) | max speed （rpm) | volumertic efficiency | oil port | oil temperature (℃） |
| 1 | JFISO04120 | 120 | 20 | 25 | 2000 | 2500 | ≥92% | G1 1/2" | -40℃ to 80℃ |
| 2 | JFISO04110 | 110 | 20 | 25 | 2000 | 2500 | |||
| 3 | JFISO04100 | 100 | 20 | 25 | 2000 | 2500 | G 1 1/4" | ||
| 4 | JFISO0490 | 90 | 20 | 25 | 2000 | 2500 | |||
| 5 | JFISO0480 | 80 | 20 | 25 | 2000 | 2500 | |||
| 6 | JFISO0460 | 60 | 20 | 25 | 2000 | 2500 | G 1" | ||
| 7 | JFISO0450 | 50 | 20 | 25 | 2000 | 2500 | |||
| 8 | JFISO0440 | 40 | 20 | 25 | 2000 | 2500 | G 3/4" |
| Feature: 1. material: cast iron 2. copper thrust plate, abrasive-proof 3. 4 oil port design, flexible 4. bi-directional,L & R 5.4 flange connection, 8 spline, standard hyva design 6. PTO driven, specially for tipper |
