Hydraulic cylinders are essential in many industries, powering everything from construction machinery to industrial presses. But do you know the difference between single-acting and double-acting cylinders?A double-acting cylinder allows for precise control of both extension and retraction, making it ideal for complex tasks.In this post, we’ll explain how double-acting cylinders work, their advantages, and why they’re preferred for specific applications.

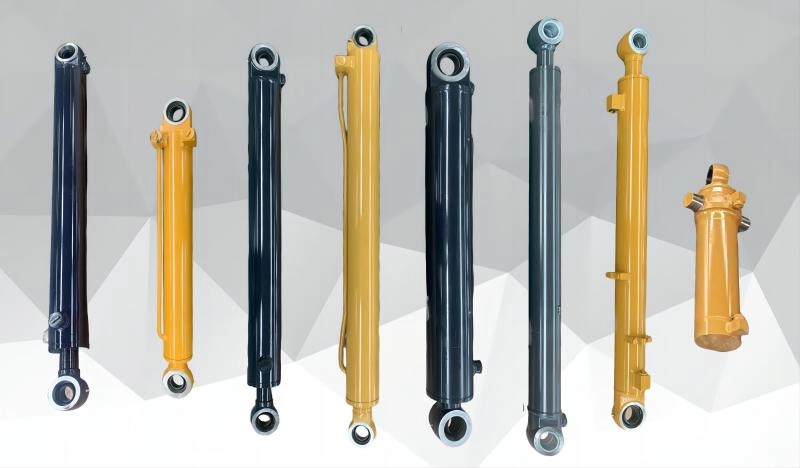

A double-acting hydraulic cylinder is designed to move a piston in both directions using hydraulic power. Unlike a single-acting cylinder, which only pushes in one direction, a double-acting cylinder can both extend and retract its piston using hydraulic fluid.The hydraulic fluid enters through two separate ports. When the fluid flows into one port, it pushes the piston rod out. Conversely, when fluid is pumped into the opposite port, the piston retracts back to its starting position. This back-and-forth movement is essential for precise control in applications needing constant motion.Key components of a double-acting cylinder include:
Ports: These allow hydraulic fluid to enter and exit, controlling the direction of movement.
Piston: The central component that divides the cylinder into two chambers and moves with the fluid pressure.
Rod: Attached to the piston, it transmits force and carries out the mechanical work.
Seals: They prevent hydraulic fluid leaks and maintain the required pressure within the cylinder.
The primary difference between a single-acting and a double-acting cylinder lies in the direction of movement. A single-acting cylinder can only extend, relying on external forces (like gravity or a spring) to retract. In contrast, a double-acting cylinder offers complete control, moving in both directions through hydraulic pressure.
Precision: Double-acting cylinders offer better control of both extension and retraction.
Push and Pull Forces: These cylinders can apply force in both directions, which is critical for complex tasks.
Faster Retraction: Unlike single-acting cylinders, which rely on springs or gravity, double-acting cylinders retract quickly and precisely.
Double-acting cylinders are preferred in applications where controlled and fast retraction is necessary. They are ideal for tasks like lifting, pushing, and pulling with consistent force, such as operating industrial presses, backhoes, or hydraulic lifts.
A double-acting hydraulic cylinder features two distinct ports: one for fluid entry and the other for fluid return. The hydraulic fluid enters one port to extend the piston and enters the opposite port to retract it. This design allows for efficient and precise control of both actions, making it ideal for applications requiring constant and controlled movement.Inside the cylinder, the key components include:
Piston: The piston divides the cylinder into two chambers. It moves when hydraulic fluid is applied, controlling the movement of the rod.
Rod: The rod is connected to the piston, transferring force and allowing the piston to perform mechanical work.
Seals: Seals ensure no hydraulic fluid leaks out, maintaining pressure within the cylinder to perform tasks efficiently.
These components work together to enable smooth extension and retraction. The dual-port design allows for quick and controlled movements, ideal for complex machinery or equipment.
Double-acting cylinders are typically made from high-strength materials to ensure durability and longevity under pressure. Common materials include:
Steel: Offers strength and durability. It’s commonly used in general-purpose applications.
Stainless Steel: More resistant to corrosion, making it suitable for harsh environments like offshore or chemical industries.
Alloys: Special alloys may be used for unique applications requiring higher strength or resistance to wear and tear.
The material choice impacts the cylinder's weight, strength, and resistance to corrosion. Steel is strong and affordable, while stainless steel provides added durability in tough conditions. The right material ensures the cylinder can handle the forces and environment it operates in, whether it’s a heavy-duty industrial press or a delicate lifting mechanism.
Double-acting cylinders are known for their precise control over both extension and retraction. Unlike single-acting cylinders, which rely on external forces like gravity or springs for retraction, double-acting cylinders use hydraulic fluid to control the movement in both directions. This allows for more consistent and accurate positioning, which is critical for applications that require repeatable accuracy.Industries like robotics and material handling rely on this precise control. For instance, robotic arms need exact and repeatable movements to perform tasks like assembly or welding. Similarly, material handling systems benefit from the fast, controlled retraction and extension, ensuring smooth operation and reducing the risk of errors.
In heavy-duty industries like construction, automotive, and manufacturing, double-acting cylinders are invaluable. These cylinders can handle high forces while maintaining precision. They’re perfect for tasks such as lifting, pressing, and repetitive movements.For example, in the automotive industry, double-acting cylinders control the lifting arms on vehicles or move heavy equipment. In construction, they help control the motion of cranes and heavy machinery. Their ability to perform these tasks without failure, even under repeated use, makes them essential for these high-demand environments.

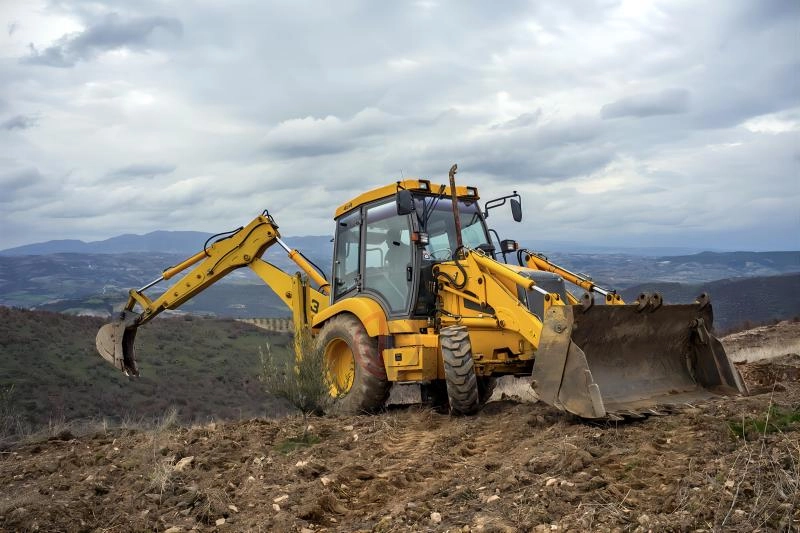

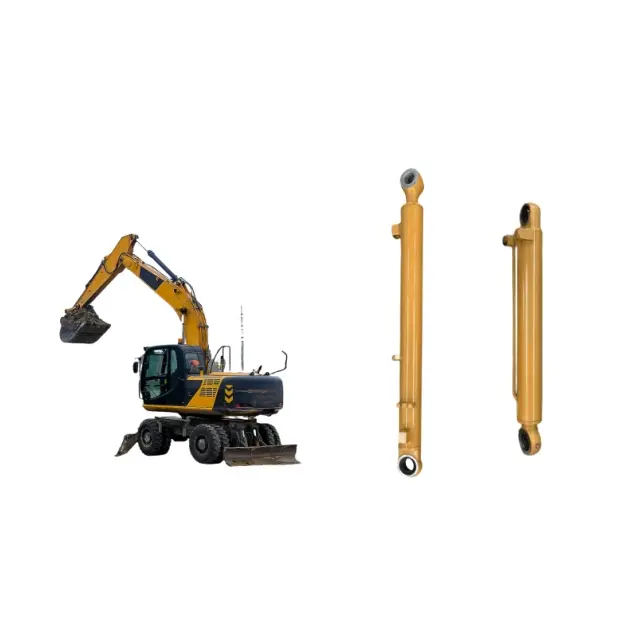

Double-acting cylinders are used in various industries to power machinery and enable precise movement. For instance, in construction machinery, they help control the lifting and lowering of heavy equipment, such as cranes and bulldozers. Dump trucks also rely on double-acting cylinders to lift and unload materials efficiently.In industrial presses, these cylinders are crucial for controlling the force and movement of the press, ensuring accurate and consistent results. Excavators use double-acting cylinders to move their arms, allowing for precise digging and lifting.A practical example is the use of double-acting cylinders in hydraulic arms. These arms can extend and retract smoothly, enabling heavy machinery to perform complex tasks with ease.
Several industries depend on double-acting cylinders for their operations:
Construction: Double-acting cylinders are used in machinery like cranes, excavators, and bulldozers to lift, push, or dig with precision.
Manufacturing: These cylinders are used in automated processes, presses, and machinery to handle heavy materials and components.
Material Handling: In warehouses and factories, double-acting cylinders help move, lift, and load products quickly and safely.
Automotive: In vehicle lifts and assembly lines, these cylinders control movement, lifting parts, and adjusting machinery.
Each of these industries benefits from the precise control, faster retraction, and heavy-duty performance offered by double-acting cylinders. Their reliability and efficiency are key to maintaining smooth operations in high-demand environments.
Like all hydraulic equipment, double-acting cylinders can experience issues over time. Some common problems include:
Hydraulic Fluid Leaks: Leaks can occur around the seals or ports. This reduces efficiency and may cause damage to other components.
Seal Wear: Over time, seals can wear down, leading to fluid loss or contamination, which can affect performance.
Port Blockages: Dirt or debris can block the ports, preventing smooth fluid flow and affecting the cylinder’s movement.
To troubleshoot these issues, regularly check the seals and hydraulic fluid levels. If you notice a decrease in performance or leaking, inspect the seals for wear. If fluid leakage is persistent, cleaning or replacing the seals may be necessary. Blockages in the ports can often be cleared by flushing the system or using compressed air.
Proper maintenance is essential to keep double-acting cylinders running smoothly. Regular checks can help prevent major issues. Here are a few key practices:
Inspect Seals Regularly: Ensure seals are intact and not worn out. Replace them when necessary to prevent leaks.
Clean Ports: Periodically clean the ports to ensure smooth fluid flow. Blockages can cause inefficiency or damage.
Monitor Hydraulic Fluid Levels: Low or dirty fluid can lead to poor cylinder performance. Keep an eye on fluid levels and replace it when needed.
Timely maintenance helps to prevent unexpected breakdowns, keeping equipment running efficiently and avoiding costly repairs.
Double-acting cylinders are ideal when you need full control over both extension and retraction. These cylinders are best for tasks requiring precise and repeatable movements, where you need the piston to extend and retract smoothly. For example, in robotics, where exact positioning is crucial, or in material handling for moving heavy loads.If your application involves lifting or pushing and requires the piston to retract on command—rather than relying on gravity or springs—a double-acting cylinder is your best choice. Consider the task's requirements to decide if this type of cylinder will deliver the precision and control you need.
Choosing the right double-acting cylinder depends on several factors:
Size: Ensure the cylinder’s size matches the scope of your application. Larger cylinders are used for heavy-duty tasks, while smaller ones fit compact machinery.
Pressure Ratings: Make sure the cylinder’s pressure rating aligns with your system’s operating pressure. This ensures efficient and safe operation.
Material: Select the right material based on the environment. Stainless steel may be needed for corrosive environments, while regular steel works well for standard tasks.
Application: Think about how the cylinder will be used. Whether it’s for lifting, pushing, or precise control, the application dictates the required features.
Additionally, understand how your hydraulic system works and ensure the cylinder is compatible. For example, a system requiring quick retraction may benefit from a cylinder designed for high-speed performance.
Double-acting cylinders use hydraulic pressure to extend and retract the piston in both directions. This offers precise control, making them ideal for tasks needing repeatable movements.Key advantages include faster retraction, more control, and the ability to apply both push and pull forces. They are widely used in construction, robotics, and material handling.Understanding how double-acting cylinders work is essential when choosing the right equipment for your hydraulic system to ensure efficiency and performance.
A: A single-acting cylinder extends in one direction and relies on external forces for retraction. A double-acting cylinder uses hydraulic pressure to both extend and retract the piston, offering more control and flexibility.
A: Yes, double-acting cylinders apply hydraulic pressure to both sides of the piston, allowing for controlled extension and retraction, enabling both push and pull forces.
A: Check for leaks around seals, ensure fluid flow isn't blocked, and monitor hydraulic fluid levels. Clean or replace seals and ports as necessary.
A: Regularly inspect seals for wear, clean ports to prevent blockages, and check hydraulic fluid levels. Replace seals and fluid as needed.
