What Is a Single Acting Hydraulic Cylinder and How Does It Work?

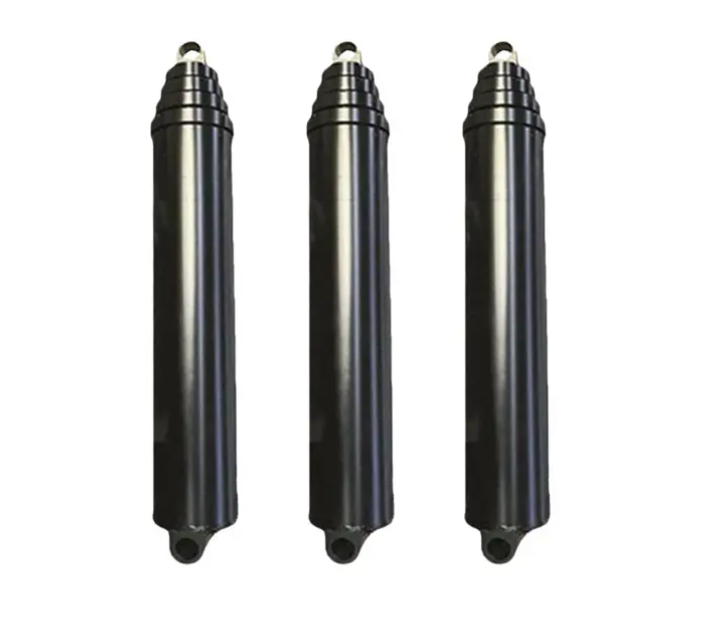

A single acting hydraulic cylinder moves in a straight line. It uses hydraulic pressure to do this. When fluid goes in, the rod pushes out. The rod goes back when a spring or gravity pushes it. Sometimes another force can push it back too. This cylinder is good for jobs that need to move one way only.

You can find single acting hydraulic cylinders in many industries. These include construction, manufacturing, and farming.

• Dump trucks

• Presses

• Tractors

• Car lifts

Key Takeaways

• A single acting hydraulic cylinder moves one way with hydraulic pressure. It goes back by a spring or gravity. This makes it simple and dependable.

• It has only one port, so it has fewer parts. This lowers the cost and makes it easier to fix than double acting cylinders.

• These cylinders are good for lifting, pushing, or clamping. They work best when you only need to move one way. You can find them in dump trucks, car lifts, and tractors.

• You should keep the fluid clean and check the seals often. This helps stop leaks and makes the cylinder last longer.

• Use a single acting cylinder for easy and cheap jobs. Use a double acting cylinder if you need more control and movement both ways.

Working Principle

Extension

You control a single acting hydraulic cylinder by using hydraulic pressure. First, hydraulic oil goes into the cylinder’s inlet port. The oil pushes on the piston inside the cylinder. This makes the piston rod move outward. The rod can lift or push things when it extends. The force depends on the oil pressure and piston size. Most cylinders work at 3,000 to 5,000 PSI in factories. High pressure lets the cylinder do tough jobs. Pascal’s law says pressure spreads out evenly inside the cylinder. This pushes the piston with the same force everywhere.

Tip: Only the extension stroke uses power in a single acting hydraulic cylinder. You can change the force and speed by changing the hydraulic pressure.

How extension works:

1. Hydraulic oil goes in through the single port.

2. Oil pressure pushes the piston, so the rod comes out.

3. The rod does work, like lifting or pressing.

Retraction

After the rod comes out, it needs to go back in. Retraction does not use hydraulic pressure in a single acting hydraulic cylinder. Instead, a spring or outside force like gravity helps. When you stop the hydraulic pressure, the oil goes back to the tank. The spring inside or the weight of the load pulls the piston back.

This design makes the single acting hydraulic cylinder easy and strong. You do not need extra hydraulic lines or valves to pull the rod back. The spring or gravity does that job. This also makes the cylinder smaller and simple to fix.

• Spring retraction lets the rod move one way only.

• Fewer parts mean less chance of leaks.

• The system is strong and saves money for many uses.

Single Port Design

A single acting hydraulic cylinder has just one port for hydraulic fluid. This single port design makes the system much easier than a double acting cylinder. You only need one valve to control the rod coming out. You do not need extra valves or hoses to pull the rod back. The hydraulic fluid pushes the piston one way, and the spring or gravity brings it back.

• The single port design makes the system less complicated.

• Fewer parts mean it costs less and is easier to fix.

• You can set up and adjust the system more easily.

Note: The simple design of a single acting hydraulic cylinder makes it a good choice when you only need movement in one direction.

Features

Simplicity

You will notice the simple design right away. The cylinder has a tube, a piston rod, and a piston fixed at the end. One end closes with a cap, and the other uses a gland with seals to keep fluid inside and dirt out. You only need one port for hydraulic fluid. This means fewer hoses and valves.

• You save time during installation because there are fewer parts.

• You spend less money since the design uses less material.

• You can fit the cylinder into tight spaces because of its compact size.

Tip: The simple construction helps you avoid many common problems found in more complex hydraulic systems.

Reliability

You can count on these cylinders to work for long hours. In mining, one cylinder reached a mean time between failures (MTBF) of almost 7,000 hours. That means you get steady performance before you need repairs.
A simple design with fewer seals and moving parts means less can go wrong. The guide elements in the gland help the rod stay straight and absorb side forces. This keeps the cylinder working smoothly.

• You reduce the risk of leaks.

• You avoid many breakdowns that stop your work.

Note: Plan your maintenance before the cylinder reaches its MTBF. This helps you avoid sudden failures and costly downtime.

Maintenance

You will find maintenance easy and quick. The simple design means you have fewer seals and parts to check. Most problems come from things like dirty fluid, worn seals, or side loading.
Here are the most common issues and how you can prevent them:

1. Keep hydraulic fluid clean to stop scratches and seal damage.

2. Use the right seals and fluids for the temperature.

3. Install the cylinder straight to avoid side loads.

4. Check for leaks and worn parts during regular inspections.

5. Do not overload the cylinder.

Regular checks and good installation help you avoid most failures. You save money and keep your equipment running longer.

Advantages and Limitations

Benefits

You will find many benefits when you use this type of hydraulic cylinder. The design is simple, so you save money and time. You do not need many parts, which means fewer things can break. You can use these cylinders in places where you only need to push or lift in one direction.

• You pay less because the cylinder has fewer components than other types.

• Maintenance is easier, and you spend less time fixing problems.

• The cylinder works well in jobs like lifting dump trailers or pressing parts, where gravity or a spring can return the rod.

• You use less energy because the cylinder only needs power to extend, not to retract.

• The spring return gives you a fail-safe way to bring the rod back without extra power.

• You can use these cylinders for clamping, ejecting, or lifting tasks where you do not need fast or powered retraction.

Tip: If you want a cost-effective and reliable solution for simple lifting or pushing jobs, this cylinder is a smart choice.

You also benefit from lower prices compared to double acting cylinders. For example, budget models can start at $100, while high-end ones may reach $2,000. In most cases, you pay about 20-30% less than you would for a double acting cylinder with similar features.

Drawbacks

You should also know about the drawbacks before choosing this cylinder. The main limit is that it only pushes or lifts in one direction. The rod comes back by spring or gravity, so you cannot control the retraction force or speed as well as with other cylinders.

• The cylinder cannot pull or retract with hydraulic power, so retraction is slower and less precise.

• You get less versatility because you cannot use it for tasks that need force in both directions.

• The cylinder needs venting on the side without pressure. If you do not use the right materials, moisture can get inside and cause rust.

• You must watch for leaks. Fluid leaks can let in dirt, water, or chemicals, which can damage the cylinder and harm the environment.

• If you use the cylinder in a dirty or wet place, you need to check seals and fluid often to prevent failure.

Note: Always keep the cylinder clean and check for leaks. This helps you avoid rust, fluid loss, and damage to the environment.

You should also remember that leaking hydraulic fluid can pollute soil and water. This can hurt plants, animals, and even people. Regular maintenance and good seals help you avoid these problems.

Applications

Industrial

You can find these cylinders in many factories. They are used in automation and manufacturing. They can handle hard jobs and heavy loads. Most work at 2,500 to 3,000 psi. This helps them lift or move things easily. Bridge cranes use them to move booms up and down. On assembly lines, they lift car doors or other parts. The single port design makes them simple to set up. It is also easy to keep them working well. You can order special cylinders for unique jobs. This helps you get the best results for your needs.

Note: These cylinders usually cost about 30% less than double acting types. They often have warranties that last around 7 years.

Common Industrial Uses:

• Bridge cranes for moving booms

• Lifting on assembly lines

• Presses for shaping materials

Automotive

These cylinders are common in car lifts. They help raise cars or equipment for repairs or display. You might see them in SESM or LESM lifts. Showrooms use them to show off cars safely. Their simple design makes them small and dependable. This is important in busy shops. Hydraulic cylinders are used in brakes, but single acting types are mostly for lifting, not braking.

Tip: Pick these cylinders for car lifts if you want something cheap and easy to care for.

Other Uses

Farmers use these cylinders on tractors to lift tools. Construction workers use them in dump trucks to raise and lower beds. You can also see them in car lifts at parking garages. They work well with gravity or springs to pull the rod back. This makes them great for jobs that only need movement one way.

These cylinders give you a simple and steady way to move, lift, or press in one direction.

Single Acting Hydraulic Cylinder vs Double Acting

Key Differences

There are some big differences between these two cylinders. The main difference is how they move the piston rod. A single acting hydraulic cylinder uses hydraulic pressure to push the rod out. It only has one port for fluid. The rod goes back in by spring or gravity. This makes it simple and easy to fix. It costs less money and is good for jobs that only need to move one way. You do not get much control over how the rod comes back. It is best for simple jobs like lifting or pressing.

A double acting hydraulic cylinder uses hydraulic pressure to move the rod both ways. It has two ports, one at each end. You can control the rod going out and coming back in. This gives you more control and makes it work faster. The design is more complex and has more parts. It costs more money and needs more care. It is good for jobs that need force in both directions, like forklifts or robots.

If you want something simple, pick a single acting hydraulic cylinder. It is easy to use and fix. If you need to move the rod both ways, pick a double acting cylinder. It gives you more control and works for harder jobs.

Tip: Pick a single acting hydraulic cylinder for easy jobs. Pick a double acting cylinder for more control and two-way movement.

Choosing the Right Type

Think about what you need before you choose a cylinder. Here are some things to help you decide:

• Use a single acting hydraulic cylinder if:

• You only need to push or lift in one direction.

• Gravity or a spring can bring the rod back.

• You want something simple and cheap.

• You use it for dump trailers, car lifts, or presses.

• Choose a double acting cylinder if:

• You need to move the rod both out and in.

• You want fast or very exact movement.

• You use it with forklifts, cranes, or robots.

• You need high safety and control both ways.

Note: Always check your job and what you need to move. Pick the cylinder that fits your force and control needs. For simple, one-way jobs, a single acting hydraulic cylinder is often the best pick.

A Single Acting Hydraulic Cylinder moves things in just one direction. It is simple and works well. You spend less money and it is easy to take care of. The design is small, so it fits in tight spaces. But you do not get as much control or force as other types.

When you pick a cylinder, think about your job. Decide if you need to lift, push, or hold something. Make sure the cylinder fits your space and can handle the weight. Choose a single acting type for jobs that only need to move one way.

FAQ

What is the main difference between single acting and double acting hydraulic cylinders?

You use a single acting cylinder for one-way movement. It has one port. A double acting cylinder moves both ways with two ports. You get more control with double acting types.

Can you use a single acting hydraulic cylinder upside down?

Yes, you can use it upside down. Make sure gravity or a spring can still return the rod. Always check the cylinder’s design and your application needs.

How do you know if your cylinder needs maintenance?

You should look for leaks, slow movement, or strange noises. Check the seals and fluid often. Clean fluid and regular checks help your cylinder last longer.

What type of fluid should you use in a single acting hydraulic cylinder?

You should use clean hydraulic oil that matches your cylinder’s requirements. Always check the manufacturer’s guide. Using the wrong fluid can damage seals and parts.

Can you repair a single acting hydraulic cylinder yourself?

You can fix simple problems like changing seals or cleaning parts. For bigger issues, you should ask a professional. Always follow safety rules when working on hydraulic equipment.
