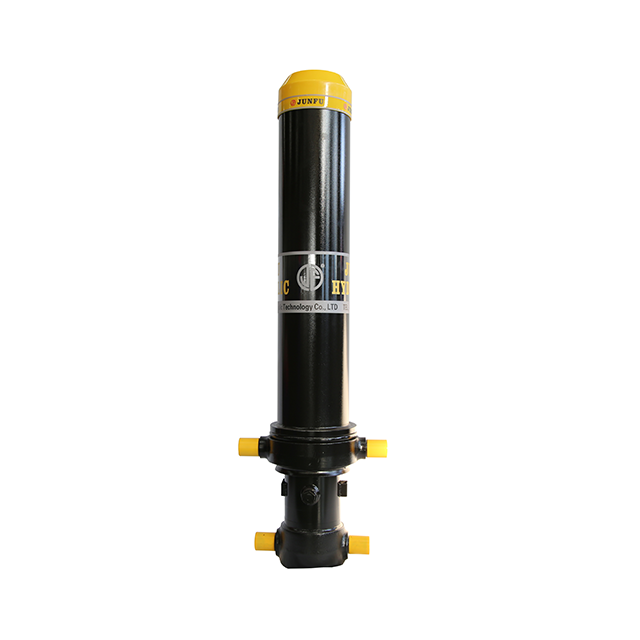

FC Front End Hydraulic Cylinder

It can be widely used in relatively harsh working conditions such as mining,steel,ports,etc.,and can meet lifting requirements from 5 tons to 100 tons.

Availability:

Quantity:



Inquire Add to Basket

Model:
FC

Front-end Telescopic Cylinder

FC front telescopic cylinders are designed primarily for tipping containers with vertical container fronts, with a lifting capacity range of over 100 tonnes. Our trunnion type front telescopic cylinders are lightweight, strong and maintenance free, providing maximum stability for tipping vehicles. Over the years, FC tipping hydraulic lift cylinders have earned a strong reputation for reliability and value for money.

|

Product Description

1）Good quality dust-proof sealing,oil sealing etc sealing brand:halite upgraded slider design
2）FC series front-end cylinder with outer cover material:hot rolled 27 simn seamless steel with hard chrome integrated alpha oil feeding port anailable.

3) Imroved sust cap design,better protection

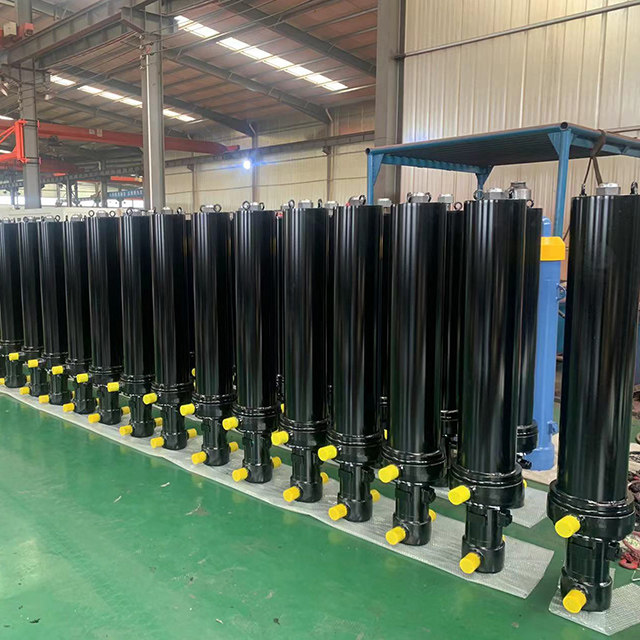

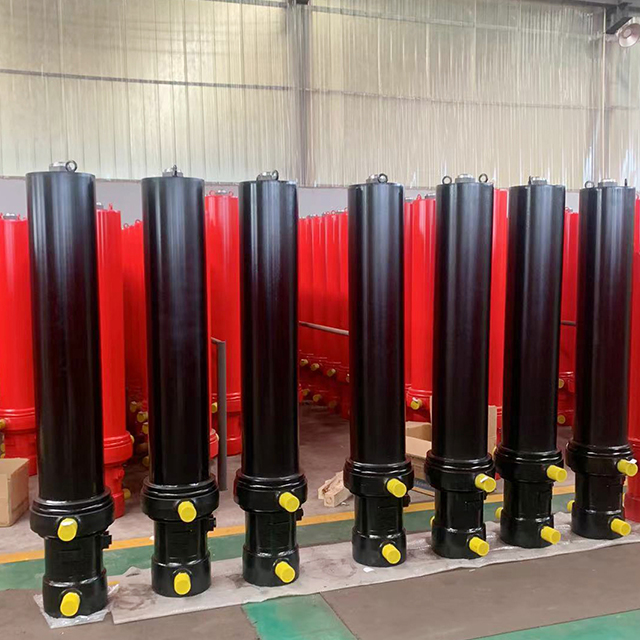

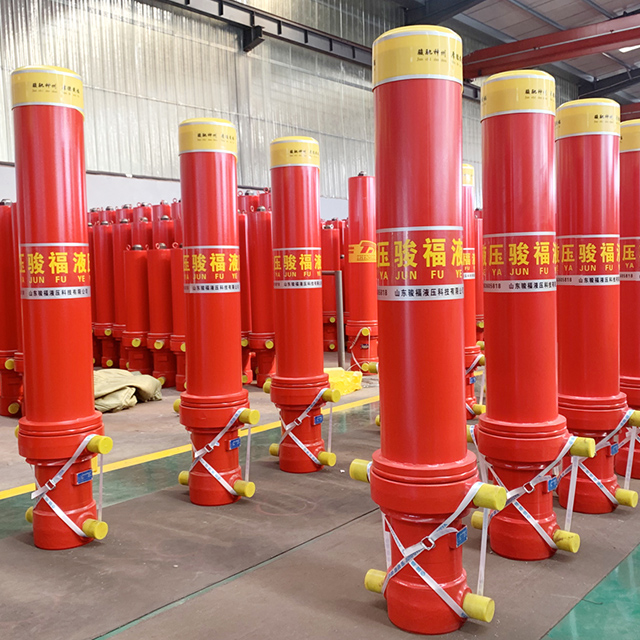

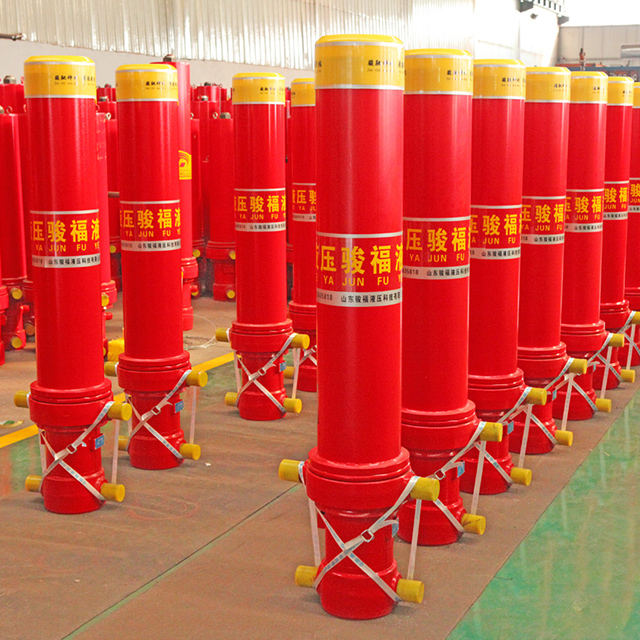

4) Color:black or red or customize

FC-1 FC-2 FC-3

|

Company Profile

Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.

We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management.

|

Production Process

液压缸-1_08

|

Data Sheet

type	Cylinder Dia (mm)	Rated pressure Mpa	Stroke (mm)	Mounting distance K	Total length H	Upper trunnion distance A/A	Downside Trunnion distance	Shaft Dia	Weight (kg)	Outcover dia D	Oil port M
FC129-3-3220	129	20	3220	343	1387	280/410	200/330	60	179	219	G1’’
FC129-3-3650	129	20	3650	343	1535	280/410	200/330	60	204	219	G1’’
FC129-3-3880	129	20	3880	343	1685	280/410	200/330	60	230	219	G1’’
FCA129-3-4235	129	20	4235	343	1803	280/410	200/330	60	230	219	G1’’
FC129-4-3480	129	20	3650	343	1218	280/410	200/330	60	178	219	G1’’
FC129-4-4320	129	20	4320	343	1685	280/410	200/330	60	230	219	G1’’
FC137-3-3830	137	20	3830	343	1640	340/470	200/330	60	244	245	G1’’
FC137-3-4280	137	20	4280	343	1860	340/470	200/330	60	268	245	G1’’
FC137-4-3650	137	20	3650	343	1290	340/470	200/330	60	201	245	G1’’
FC137-4-4280	137	20	4280	343	1455	340/470	200/330	60	225	245	G1’’
FC137-4-4650	137	20	4650	343	1545	340/470	200/330	60	237	245	G1’’
FC137-4-5180	137	20	5180	343	1720	340/470	200/330	60	260	245	G1’’
FC157-4-3830	157	20	3830	343	1350	340/470	245/375	60/65	247	245	G1’’
FC157-4-4280	157	20	4280	343	1460	340/470	245/375	60/65	257	245	G1’’
FC157-4-4650	157	20	4650	343	1555	340/470	245/375	60/65	272	245	G1’’
FC157-4-5000	157	20	5000	343	1650	340/470	245/375	60/65	288	245	G1’’
FC157-5-3830	157	20	3830	343	1170	340/470	340/470	60/65	218	245	G1’’
FC157-5-4280	157	20	4280	343	1200	340/470	340/470	60/65	227	245	G1’’
FC157-5-4650	157	20	4650	343	1275	340/470	245/375	60/65	245	245	G1’’

|

Customer Cases

|

Our Partner

NO	type	cylinder dia (mm)	Rated pressure Mpa	stroke (mm)	mounting distance K	total length H	upper trunnion distance A1/A	downside trunnion distance B1/B	shaft dia φ	weight（kg)	outcover dia D	oil port M
1	FC129-3-3220	129	20	3220	343	1387	280/410	200/330	60	179	219	G1"
2	FC129-3-3650	129	20	3650	343	1535	280/410	200/330	60	204	219	G1"
3	FC129-3-3880	129	20	3880	343	1685	280/410	200/330	60	230	219	G1"
4	FCA129-3-4235	129	20	4235	343	1803	280/410	200/330	60	230	219	G1"
5	FC129-4-3480	129	20	3650	343	1218	280/410	200/330	60	178	219	G1"
6	FC129-4-4320	129	20	4320	343	1685	280/410	200/330	60	230	219	G1"
7	FC137-3-3830	137	20	3830	343	1640	340/470	200/330	60	244	245	G1"
8	FC137-3-4280	137	20	4280	343	1860	340/470	200/330	60	268	245	G1"
9	FC137-4-3650	137	20	3650	343	1290	340/470	200/330	60	201	245	G1”
10	FC137-4-4280	137	20	4280	343	1455	340/470	200/330	60	225	245	G1”
11	FC137-4-4650	137	20	4650	343	1545	340/470	200/330	60	237	245	G1”
12	FC137-4-5180	137	20	5180	343	1720	340/470	200/330	60	260	245	G1”
13	FC157-4-3830	157	20	3830	343	1350	340/470	245/375	60/65	247	245	G1”
14	FC157-4-4280	157	20	4280	343	1460	340/470	245/375	60/65	257	245	G1”
15	FC157-4-4650	157	20	4650	343	1555	340/470	245/375	60/65	272	245	G1”
16	FC157-4-5000	157	20	5000	343	1650	340/470	245/375	60/65	288	245	G1”
17	FC157-5-3830	157	20	3830	343	1170	340/470	340/470	60/65	218	245	G1”
18	FC157-5-4280	157	20	4280	343	1200	340/470	340/470	60/65	227	245	G1”
19	FC157-5-4650	157	20	4650	343	1275	340/470	245/375	60/65	245	245	G1”
20	FC179-4-4280	179	20	4280	343	1480	340/470	245/375	60/65	300	245	G1”
21	FC179-4-4650	179	20	4650	343	1570	340/470	245/375	60/65	312	245	G1”
22	FC179-4-5000	179	20	5000	343	1660	340/470	245/375	60/65	334	245	G1”
23	FC179-4-5390	179	20	5390	343	1755	340/470	245/375	60/65	352	245	G1”
24	FC179-4-5700	179	20	5700	343	1790	340/470	245/375	60/65	362	245	G1”
25	FC179-4-5780	179	20	5780	343	1850	340/470	245/375	60/65	360	245	G1”
26	FC179-4-6100	179	20	6100	343	1940	340/470	245/375	60/65	383	245	G1”
27	FC179-5-3830	179	20	3830	343	1170	340/470	245/375	60/65	256	245	G1”
28	FC179-5-4280	179	20	4280	343	1265	340/470	245/375	60/65	274	245	G1”
29	FC179-5-4650	179	20	4650	343	1282	340/470	245/375	60/65	283	245	G1”
30	FC179-5-4800	179	20	4800	343	1360	340/470	245/375	60/65	292	245	G1”
31	FC179-5-5000	179	20	5000	343	1405	340/470	245/375	60/65	305	245	G1”
32	FC179-5-5390	179	20	5390	343	1480	340/470	245/375	60/65	320	245	G1”
33	FC179-5-5800	179	20	5800	343	1570	340/470	245/375	60/65	333	245	G1”
34	FC179-5-6300	179	20	6300	343	1655	340/470	245/375	60/65	352	245	G1”
35	FC179-5-6800	179	20	6800	343	1755	340/470	245/375	60/65	371	245	G1”
36	FC179-5-7300	179	20	7300	343	1845	340/470	245/375	60/65	400	245	G1”
37	FC202-4-5390	202	20	5390	343	1760	360/490	270/402	60/65	450	273	G1”
38	FC202-4-5780	202	20	5780	343	1860	360/490	270/402	60/65	460	273	G1”
39	FC202-4-6100	202	20	6100	343	1935	360/490	270/402	60/65	465	273	G1”
40	FC202-5-6500	202	20	6500	343	1705	360/490	270/402	60/65	438	273	G1”
41	FC202-5-6800	202	20	6800	343	1765	360/490	270/402	60/65	452	273	G1”
42	FC202-5-7300	202	20	7300	343	1860	360/490	270/402	60/65	473	273	G1”
43	FC202-5-7800	202	20	7800	343	1935	360/490	270/402	60/65	491	273	G1”
44	FC202-6-4300	202	20	4300	343	1120	360/490	270/402	65	315	273	G1"
45	FC202-6-6000	202	20	6000	343	1410	360/490	270/402	65	383	273	G1"
46	FC202-6-6500	202	20	6500	343	1480	360/490	270/402	65	403	273	G1"
47	FC202-6-6800	202	20	6800	343	1535	360/490	270/402	65	417	273	G1"
48	FC202-6-7000	202	20	7000	343	1570	360/490	270/402	65	424	273	G1"
49	FC202-6-7500	202	20	7500	343	1660	360/490	270/402	65	452	273	G1"
50	FC191-5-5780	191	20	5780	343	1530	360/490	270/402	60/65	373	273	G1"
51	FC191-5-6180	191	20	6180	343	1610	360/490	270/402	60/65	381	273	G1"
52	FC191-5-6500	191	20	6500	343	1670	360/490	270/402	60/65	395	273	G1"
53	FC191-5-6725	191	20	6725	343	1790	360/490	270/402	60/65	400	273	G1"
54	FC191-5-7300	191	20	7300	343	1835	360/490	270/402	60/65	430	273	G1"
55	FC191-4-5780	191	20	5780	343	1835	360/490	270/402	60/65	407	273	G1"
56	FC191-4-6100	191	20	6100	343	1955	360/490	270/402	60/65	434	273	G1"
57	FC214-5-6500	214	20	6500	343	1740	360/490	270/402	65	479	273	G1"
58	FC214-5-7300	214	20	7300	343	1900	360/490	270/402	65	526	273	G1"
59	FC214-5-7800	214	20	7800	486	1994	360/490	270/402	65	540	273	G1"
60	FC214-5-8130	214	20	8130	486	2060	360/490	270/402	65	570	273	G1"
61	FC214-5-9030	214	20	9030	486	2270	360/490	270/402	65	610	273	G1"
62	FC214-7-4800	214	20	4800	486	1055	360/490	270/402	65	328	273	G1"
63	FC214-7-7600	214	20	7600	486	1455	360/490	270/402	65	440	273	G1"
64	FC214-8-5200	214	20	5200	343	1000	360/490	270/402	65	320	273	G1"
65	FC240-5-7300	240	20	7300	468	1890	420/560	342/455	75	680	322	G1"
66	FC240-5-8130	240	20	8130	468	2060	420/560	342/455	75	750	322	G1"
67	FC240-5-9030	240	20	9030	468	2270	420/560	342/455	75	820	322	G1"
68	FC240-4-6180	240	20	6180	468	1990	420/560	342/455	75	694	322	G1"
69	FC240-5-6500	240	20	6500	468	2270	420/560	342/455	75	730	322	G1"
70	FC169-5-6180	169	20	6180	343	1631	360/490	245/375	60	330	245	G1"
71	FC169-5-6230	169	20	6230	343	1641	360/490	245/375	60	265	245	G2"
72	FC 169-5-7130	169	20	7130	343	1821	360/490	245/375	60	370	245	G3"
73	FC 149-4-4150	149	20	4150	343	1683	340/470	200/330	60	240	245	G4"
74	FC 149-4-5180	169	20	5180	343	1683	340/470	200/330	60	290	245	G5"
