FE149-4-04940 Dump Truck Front-END hydraulic cylinders manufacturers

Durable, Efficient, Proven: FE-Style Hydraulic Cylinders for Dump Trucks

Share to:

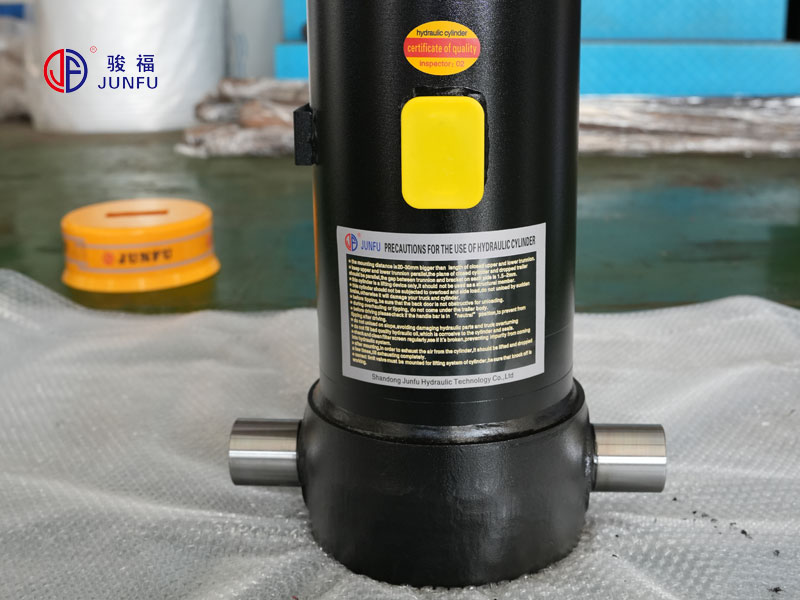

JUNFU Manufacture Hot Sale FE Type Front-End Telescopic Hydraulic Cylinder for Dump Truck

It can be widely used in relatively harsh working conditions such as mining,steel,ports,etc.,and can meet lifting requirements from 5 tons to 100 tons.

Availability:

Quantity:



Inquire Add to Basket

Model:
FE
Brand:
JF

Product Description

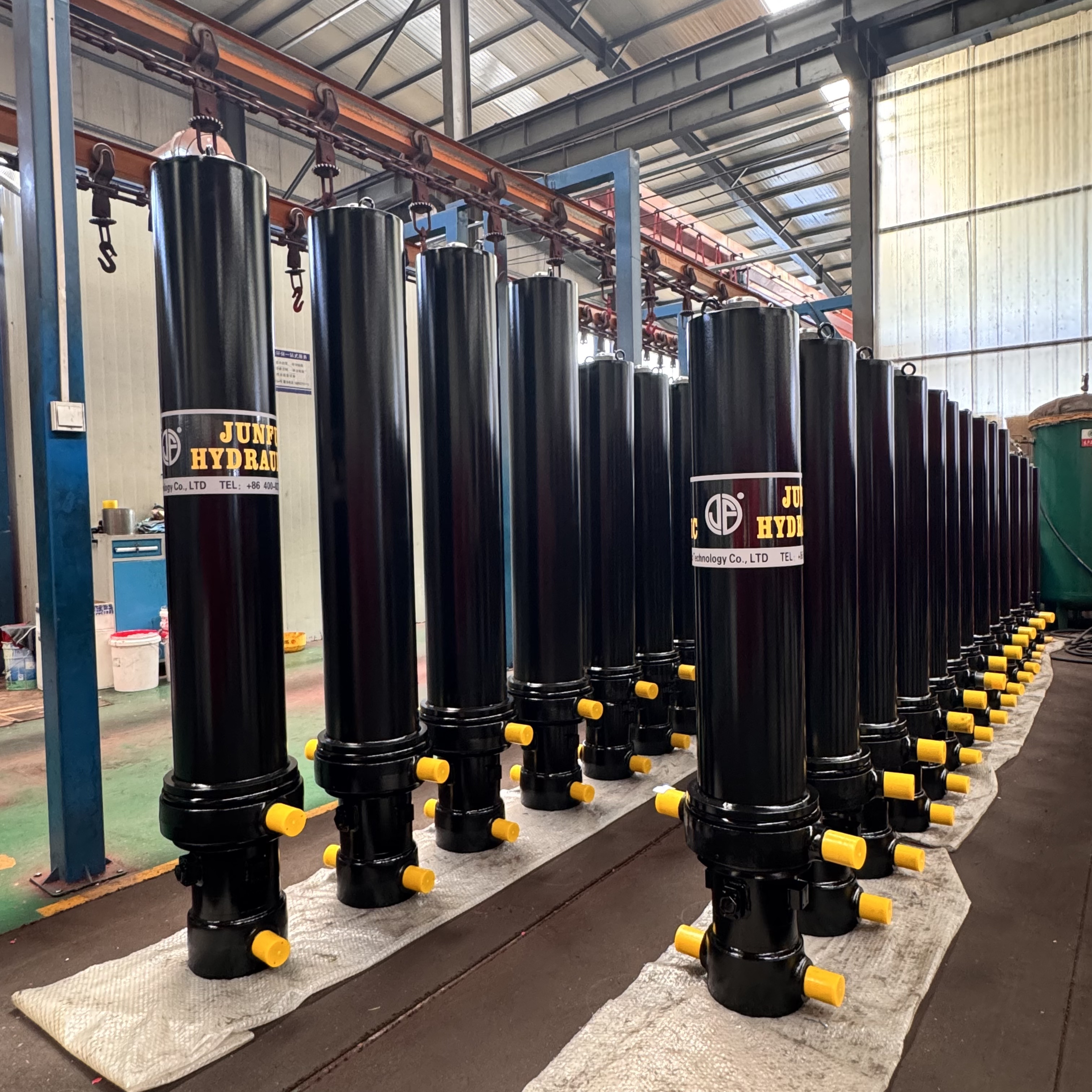

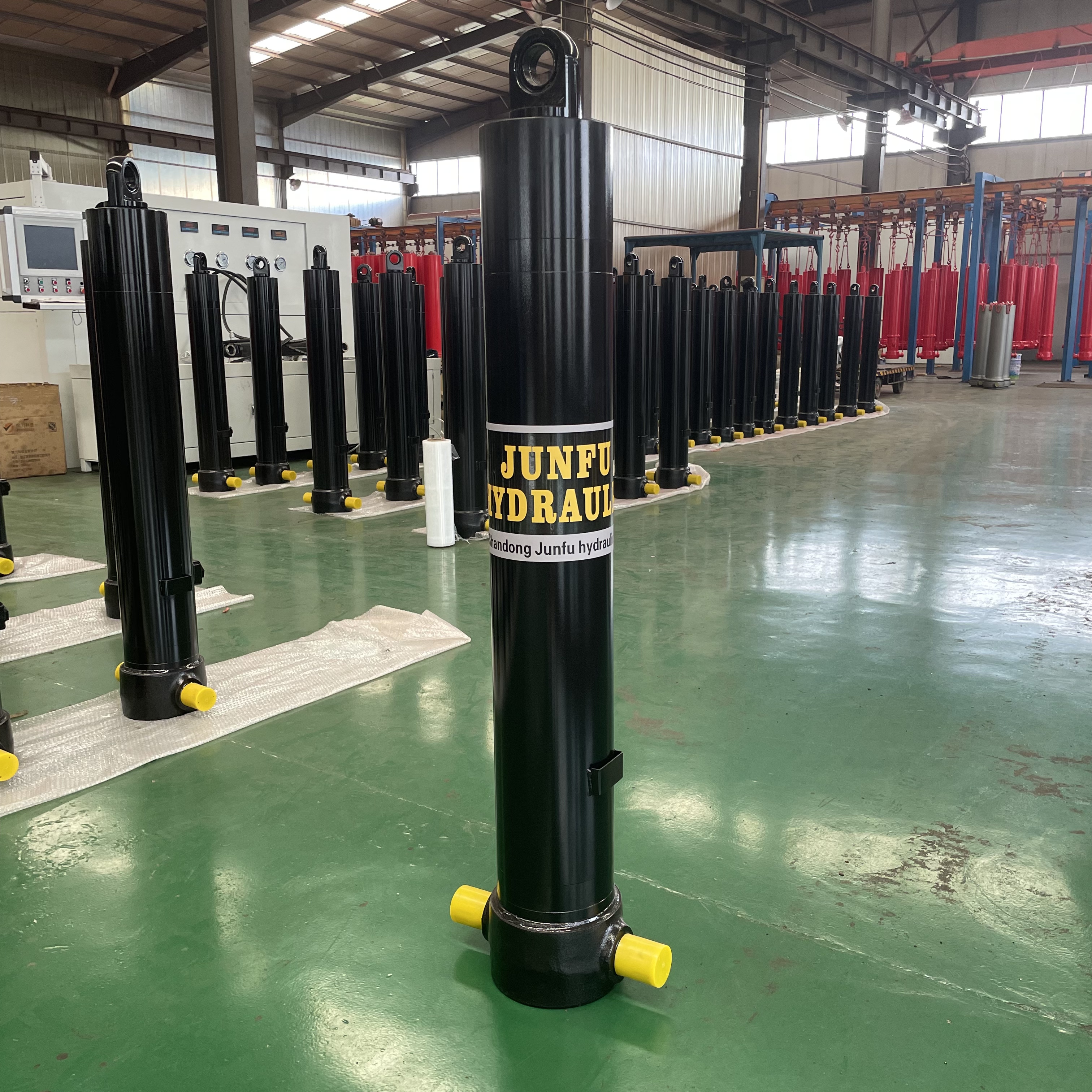

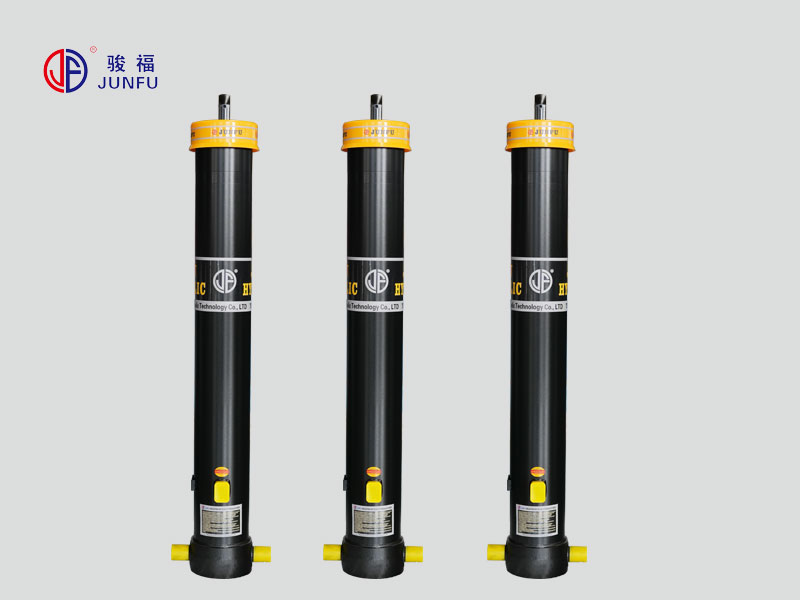

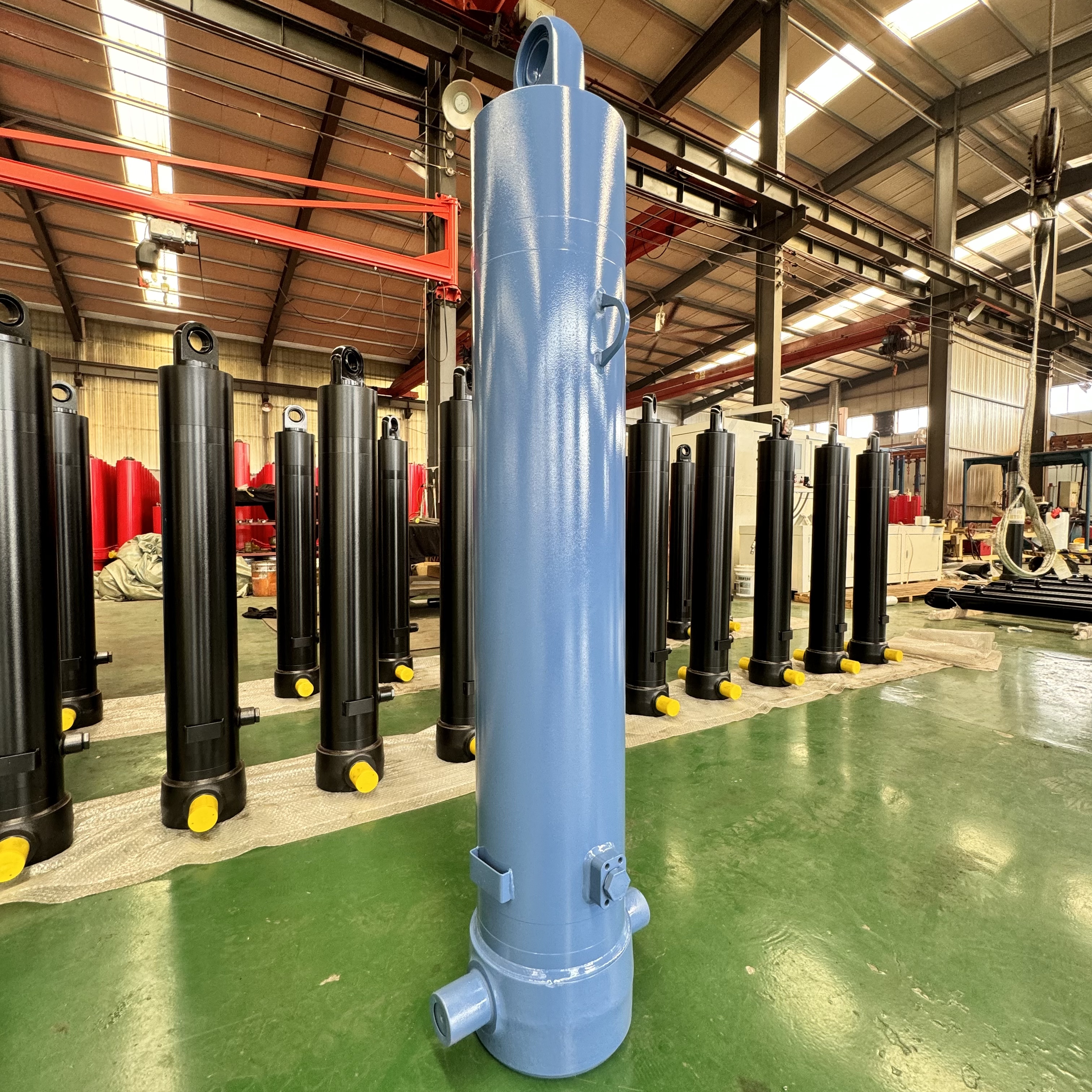

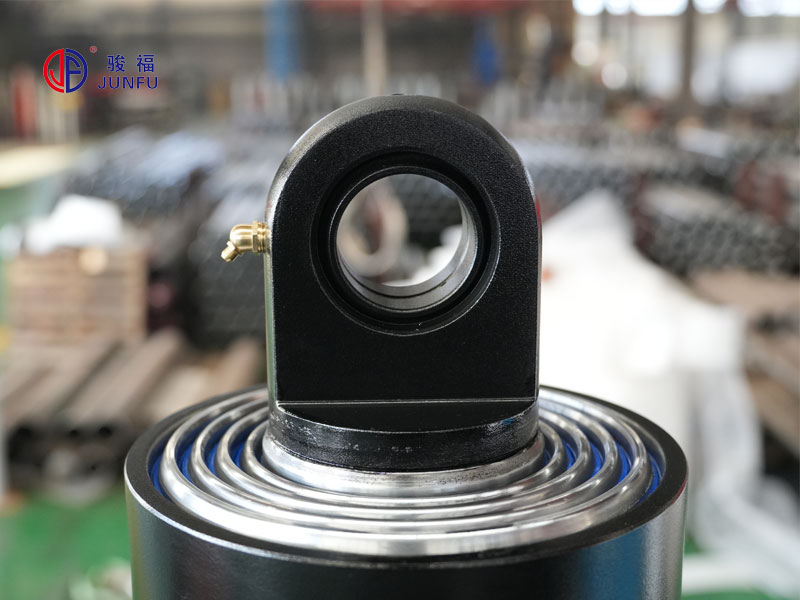

FE hydraulic cylinders

FE Type Dump Truck Hydraulic Cylinder: Engineered for Optimal Performance

The hydraulic cylinder tailored for FE type dump trucks is a specialized component that embodies precision engineering, designed to align seamlessly with the unique operational demands of these vehicles. As FE type dump trucks are often deployed in diverse and demanding environments—from urban construction to mining sites—their hydraulic cylinders must deliver unwavering reliability, power, and adaptability.

|

Product Description

Technical note:

1.rated pressure: 22mpa

2. max pressure:25mpa

3. material: hot rolled 27simn seamless steel with hard chrome4. working temperature:-40'C to 80°C

5. This cylinder is a lifting device only and may not be used as a structuralmember or be subjected to side load.Side load and/or poor alignment mightresult in cylinder leakage. The cylinder thrust on the first stage must not exceedthe maximum allowabley

Send detailed information and offer customized services

1. bore diameter
2. stroke
3. working pressure
4. front and back end mounting type (U clevis, earring or flange, etc.)
5. using frequency

|

Company Profile

Shandong junfu hydraulic technology co.,ltd , established in March,1990, is mainly engaged in the research, development, sale and service of hydraulic parts like front-end hydraulic cylinder, hydraulic valve, hydraulicpump, pto, hydraulic oil tank, hydraulic system etc for dump truck.2）This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

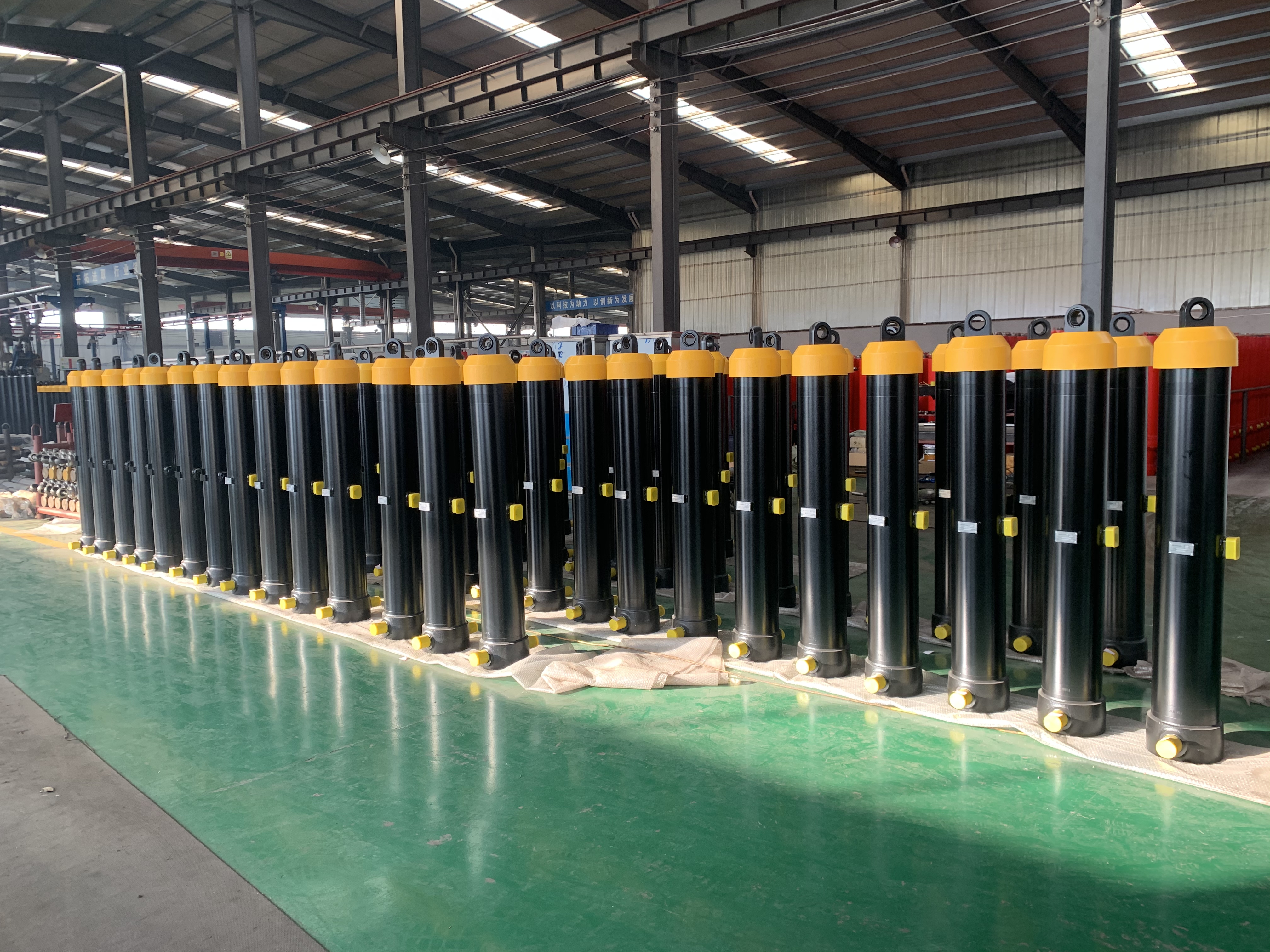

We are located in qingzhou city, shandong province, China, with 15000㎡ manufacturing workshop and more than 100 set precise machinery which is a guarantee for fast delivery. we have excellent teams who focus on product development & design, research, innovation,quality control & inspection and company management.

|

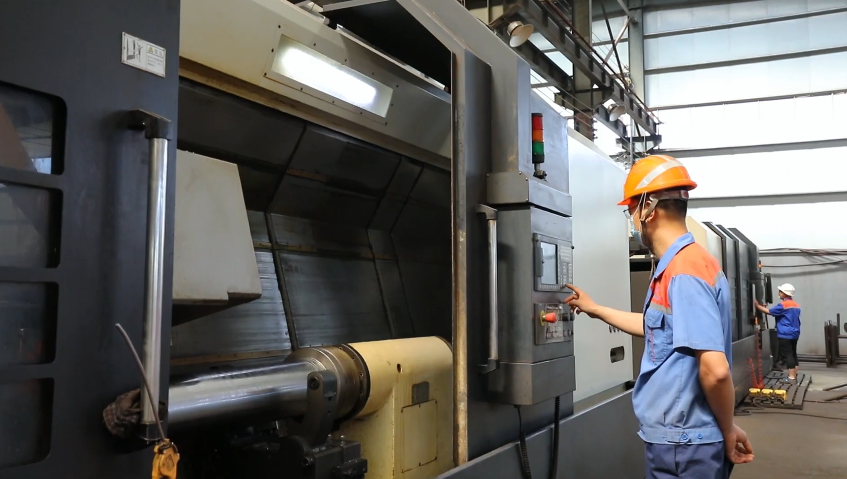

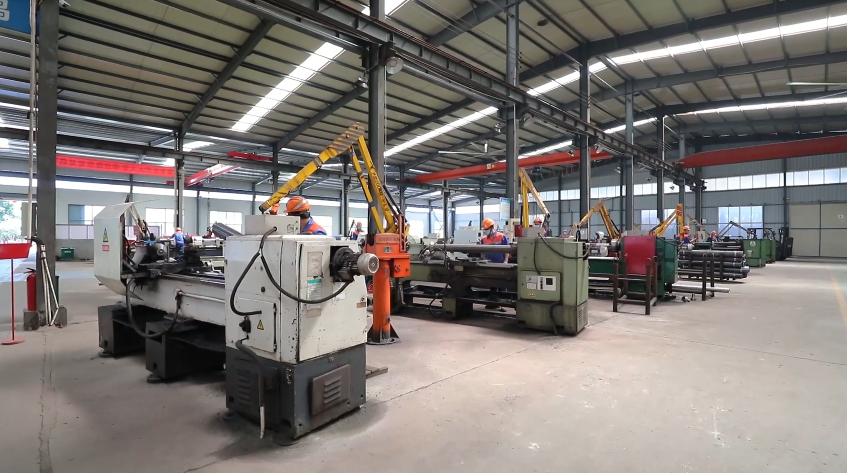

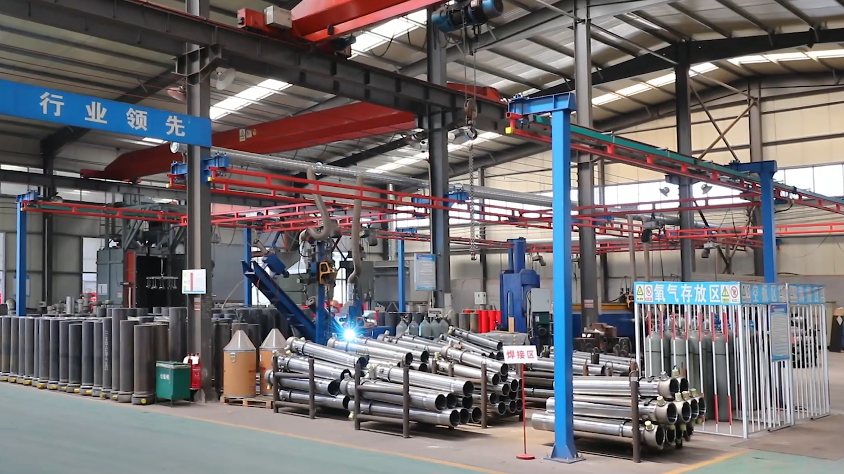

Production Process

|

Certifications

|

Data Sheet

type	Cylinder Dia (mm)	Rated pressure Mpa	Stroke (mm)	Mounting distance K	Total length H	Downside Trunnion distance B1/B	Shaft Dia	Weight(kg)	Outcover dia D	Oil port M
FEA129-4-4320	129	20	4320	1365	1482	201/331	60	144	171	G1’’
FE149-4-04940	149	20	4940	1529	1639	201/331	60	184	171	G1’’
FEA157-4-5540	157	20	5540	1649	1764	245/375	60	223	181	G1’’
FE169-5-5355	169	20	5355	1365	1480	245/375	60	240	193	G1’’
FE169-5-5780	169	20	5780	1559	1674	245/375	60	250	193	G1’’
FE169-5-6180	169	20	6180	1559	1674	245/375	60	244	193	G1’’
FE169-5-6380	169	20	6380	1612	1727	245/375	60	246	193	G1’’
FE179-5-5550	179	20	5550	1427	1542	245/375	60	249	203	G1’’
FE179-5-5881	179	20	5881	1550	1690	245/375	60	255	203	G1’’
FE191-5-06180	191	20	6180	1527	1647	245/375	60	290	216	G1’’
FEA191-5-7130	191	20	7130	1732	1852	245/375	60	323	216	G1’’
FE191-5-06134	191	20	6134	1555	1675	245/375	70	352	216	G1’’
