Views: 0 Author: Site Editor Publish Time: 2025-05-17 Origin: Site
Have you ever wondered how a truck or tractor powers extra equipment without needing another engine? The secret is a Power Take-Off (PTO). It's a smart device that redirects engine power to other machinery. In this article, you'll learn what PTOs are, how hydraulic systems use them, and why they're important.

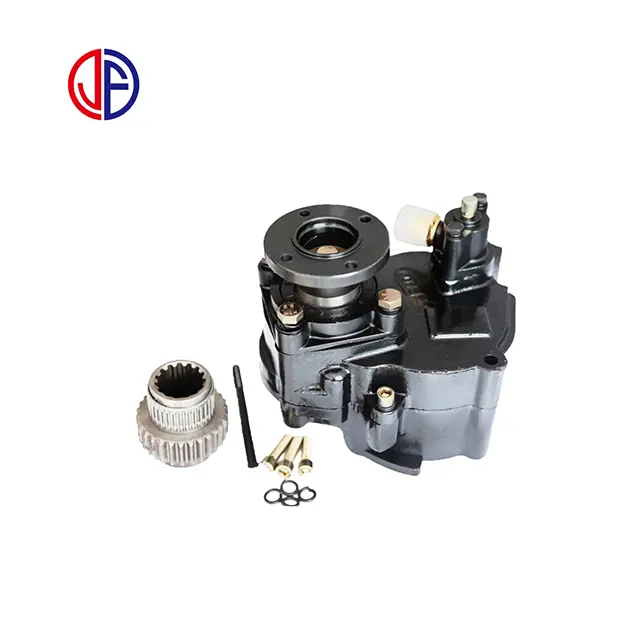

A Power Take-Off, or PTO, is a mechanical device. It lets an engine share its power with another machine. Instead of each machine needing its own engine, they borrow power from one source.
Here’s how it works:The PTO connects to the engine or transmission. When turned on, it spins a shaft. That spinning motion powers tools like pumps or motors.Think of it like this: A PTO is a bridge. It sends engine power to equipment that can’t run by itself.
You’ll find Heavy Duty PTOs almost everywhere. Farms, construction sites, and fire trucks all rely on them.Some common examples:
| Equipment Type | Powered Tool |
| Tractor | Hay baler, mower |
| Dump Truck | Hydraulic lift |
| Fire Engine | Water pump, rescue tools |
| Cement Mixer Truck | Drum rotation system |
Lots of industries use PTOs. Here are just a few:
Agriculture – Tractors power plows and harvesters.
Construction – Loaders run drills or pumps.
Emergency Services – Fire trucks run ladders and hoses.
Transportation – Trucks unload cargo using PTO-driven lifts.
PTOs make it easier to do tough jobs without adding extra engines. That’s why they’re a big deal in heavy-duty work.
So, how does a PTO really work in a hydraulic setup? Let’s break it down step by step.
Engine Runs – The main engine starts and generates rotational energy.
PTO Engages – You flip a switch or lever. The PTO connects to the engine or transmission.
Power Transfers – The PTO sends spinning force through its output shaft.
Pump Activation – This motion drives a hydraulic pump.
Fluid Moves – Hydraulic fluid is pushed through hoses and valves.
Tool Operates – That fluid powers tools like lifters, sprayers, or motors.
It’s like turning engine spin into useful work somewhere else on the machine.
Unlike mechanical PTOs that use gears alone, hydraulic PTOs use fluid power. They can be smoother and quieter. They're great when you need more control or force spread across multiple tools.Why are they popular?
Can run tools while the vehicle is stopped.
Handle heavy-duty tasks without burning out.
Hydraulic fluid is the lifeline. It flows through the system and carries energy.Here’s what it does:
Transfers force from pump to tool
Cools the system during operation
Lubricates parts to reduce wear
Seals gaps to prevent leaks
| Function | Role of Fluid |
| Power Transfer | Moves energy to tool |
| Cooling | Prevents overheating |
| Lubrication | Reduces friction |
| Sealing | Blocks internal leaks |
Hydraulic fluid isn’t just liquid—it’s muscle in motion. Without it, nothing moves.
Not all PTOs are the same. Some use gears. Others rely on fluid or even electricity. Let’s look at the most common types.
A mechanical PTO uses a direct gear connection. You flip a lever or push a switch, and it starts working.Pros
Simple and reliable
Easy to repair
No need for complex electronics
Cons
Can be noisy
Needs the vehicle to stop before engaging
May wear faster with misuse
Where you’ll see it:
Tractors
Pumps
Chippers
Barge and irrigation systems
Hydraulic PTOs use fluid power. Instead of a gear grinding into place, a pump pushes hydraulic fluid to power tools.Why use one?
Smooth starts
Can run equipment while stationary
Handles heavy tasks well
Popular in:
Construction (excavators, loaders)
Emergency vehicles
Waste trucks
Farming tools like balers
This one runs on electricity. No belts, no fluid—just electric motors doing the job.How it works:
The engine charges a battery or powers an electric motor
The motor spins and powers tools
Perks:
Low noise and zero emissions
Simple to control
Perfect for indoor or quiet zones
Drawbacks:
Limited by battery life
High upfront cost
Great for:
Sanitation trucks
Hybrid vehicles
Light-duty tasks
These depend on where they grab power from. Let’s break it down.
| Type | Power Source | Best Use Case |
| Front-Mounted | Engine crankshaft | Snow plows, refuse trucks |
| Rear-Mounted | Transmission rear | Cement mixers, small cranes |
Front-mounts connect up front—through the grill and radiator. Rear-mounts bolt onto the back of the transmission.
This one’s easy to spot. It’s bolted right to the side of the transmission.Why use it?
Easy to install
Common in work trucks
Works directly with transmission gears
Seen in:
Dump trucks
Utility fleets
Road maintenance vehicles
Side-mounted PTOs are everywhere in North America. They’re reliable and available for almost any transmission.
A hydraulic PTO system isn’t just one part—it’s a team working together. Each piece has a job. Let’s look at the main ones.
The PTO shaft is the connection point. It links the engine or transmission to the pump or tool.
It spins fast to transfer power.
If it breaks or bends, nothing works.
You’ll often see it on tractors and utility trucks.
It's strong, but needs alignment. Otherwise, vibration or wear will happen fast.
Once the PTO shaft starts spinning, it powers the hydraulic pump. The pump turns mechanical energy into fluid pressure.There are a few pump types:
| Pump Type | Features | Use Case |
| Gear Pump | Simple, low cost | Basic farm equipment |
| Piston Pump | High pressure, efficient | Heavy construction gear |
| Vane Pump | Quiet, good flow control | Utility and service trucks |
The pump is like the heart. It pushes fluid through the system.
Valves control where the fluid goes. Lines move it between parts.
Directional valves choose the path.
Pressure valves keep it safe.
Flow valves adjust speed.
Hydraulic lines are the veins. They carry fluid to the exact tool that needs it.If there's a leak or clog? The whole system can fail.
These parts turn pressure into action.Actuators push or pull. They move parts like:
Dump truck beds
Lifting arms
Snowplow blades
Hydraulic motors spin instead. They power:
Augers
Winches
Conveyor belts
| Component | Function |
| Actuator (Cylinder) | Converts pressure to straight motion |
| Hydraulic Motor | Converts pressure to rotary power |
Together, these tools get real work done—lifting, pushing, turning, and moving gear.
Hydraulic PTOs power equipment across many industries. Let’s look at where and how they’re used every day.
Farmers depend on PTOs. They make tractors more than just movers.What do PTOs power on a farm?
Hay balers
Rotary tillers
Sprayers
Irrigation pumps
Wood chippers
When the tractor’s PTO shaft turns, it runs the implement—saving time, fuel, and effort.Why it matters:One tractor engine can power many tools. That’s smart farming.
In construction, machines need to move and do heavy work at the same time. Hydraulic PTOs make that happen.Used on:
Excavators
Loaders
Dump trucks
Road planers
What PTOs power:
Hydraulic breakers
Lifting booms
Augers
Onboard compressors
Benefits:
Smooth tool control
Reduced engine strain
One power source, many tools
Logistics trucks don’t just haul—they load and unload too. PTOs turn truck engines into tool engines.Examples of PTO-powered systems:
Hydraulic lifts
Tarp rollers
Hook-lift systems
Tailgates
| Vehicle Type | PTO-Powered Tool |
| Delivery Truck | Liftgate |
| Dump Truck | Bed hoist |
| Sanitation Truck | Compacting mechanism |
Drivers flip a switch. Then, the hydraulic PTO does the rest.
In an emergency, tools must work fast—no matter where you are. PTOs help rescue teams do more on the move.On fire and rescue vehicles, PTOs run:
Water pumps
Aerial ladders
Hydraulic spreaders ("Jaws of Life")
Lighting towers
Fire trucks can spray water and power lifesaving tools—all thanks to a single engine.
| Vehicle | PTO-Driven Equipment |
| Fire Truck | Pump, ladder, generator |
| Rescue Vehicle | Hydraulic cutter, winch |
Engaging a PTO means activating the system so it can do real work. Different methods suit different needs.
This is old-school. A gear slides into place manually. You need to stop the vehicle, then engage the PTO.How it works:
Operator uses a lever, cable, or air assist
Gear meshes with the transmission
Must stop transmission rotation first
Good for:
Manual transmissions
Slow or parked operations
Limits:
Can damage gears if rushed
Not ideal while moving
This one’s smoother. Instead of grinding gears, it uses discs and hydraulic pressure to engage.Steps:
Press a button or switch
Clutch plates engage
No gear clash happens
Advantages:
Can engage while moving (under 1,000 RPM)
Safer for equipment
Great for automatic transmissions
Common in:
Refuse trucks
Utility fleets
Emergency vehicles
This PTO is always spinning. It stays engaged whether the vehicle moves or not.What it means:
There’s no switch to turn it on or off
It's always active with engine power
Useful when:
You need nonstop power
You make lots of stops and starts
Challenges:
No off switch can waste energy
Needs variable displacement pump for control
Let’s break down how these different systems activate a PTO.
| Method | How It Works | Pros | Best Use |
| Air | Uses air pressure from brake tank | Quick, strong, simple | Trucks with air brakes |
| Hydraulic | Uses fluid pressure from pump | Smooth, common in autos | Automatic transmissions |
| Cable | Manual lever or linkage | Simple, low-cost | Older or basic systems |
| Electric | Solenoid activates shift fork | Easy install, no plumbing | Low-pressure, light-duty use |
Each method fits a different setup. Air and hydraulic are strong. Cable is basic. Electric is easy and compact.
Hydraulic PTOs are powerful—but they’re not perfect. Like any system, they can act up. Let’s look at the most common problems and how to fix them.
If your PTO rattles or hums too loudly, something’s off. Vibration usually means a part’s loose, bent, or out of balance.What causes it?
Worn bearings
Misaligned shafts
Loose mounting bolts
Bent PTO shaft
What to do:
Check alignment first
Tighten all fasteners
Inspect bearings and splines
Replace bent or damaged parts
PTO won’t stay on? Or maybe it refuses to disengage?Possible reasons:
Worn clutch components
Poor shift linkage adjustment
Low pressure (in hydraulic systems)
Bad solenoid or switch (in electric types)
Fix it by:
Adjusting the linkage or torque settings
Checking the hydraulic or air pressure
Replacing solenoids or electrical connectors
| Problem | Likely Cause | Quick Fix |
| Won't engage | Misadjusted clutch | Reset engagement torque |
| Won't disengage | Sticking plates | Clean or replace clutch |
| Engages then slips | Low pressure or wear | Check fluid and clutch |
Fluid dripping from your PTO? You’re probably dealing with a failed seal or gasket.Why this happens:
Old or cracked seals
Improper installation
Excessive vibration
Over-tightened bolts
Here’s what to check:
Seals around input/output shafts
Gasket areas
Hose fittings
Oil levels and fluid type
Leaks might seem small—but they can cause major damage if ignored.
A hot PTO is a warning. It could mean too much load or poor lubrication.What causes overheating:
Low oil or wrong fluid
Blocked airflow
Excess sideload from belts or pumps
Running it too long at max power
Use an infrared thermometer to check the temp at the bearing carrier. If it’s over 220ºF? Time to act.Tips to prevent heat issues:
Use the right grease and oil
Follow a maintenance schedule
Let the system cool between jobs
Inspect after the first 10–20 hours of new use
| Heat Problem | Likely Cause | Fix |
| High running temps | Low oil or wrong grease | Refill with correct lubricant |
| Hot on startup | New installation | Allow break-in time |
| Heat at load | Excessive sideload | Reduce belt tension/load |
Keeping a PTO system in top shape isn’t hard—but you’ve got to stay on it. Regular checks can prevent costly repairs.
Make it a habit to check the system weekly or before heavy use. Look for visible signs first.What to inspect:
Leaks near fittings or shaft seals
Loose bolts or worn brackets
Shaft alignment and rotation
Oil levels and fluid color
Signs of overheating (burn marks or smells)
Use this checklist:
| Item | What to Look For |
| PTO Shaft | Cracks, bends, vibration |
| Hydraulic Hoses | Leaks, kinks, aging |
| Pump Unit | Mount security, noise, wear |
| Fluid Reservoir | Clean, full, correct level |
| Filters | Clogs, pressure drop signs |
Doing regular maintenance boosts performance and prevents downtime. Don’t wait for something to break.Important tasks:
Change hydraulic oil at recommended intervals
Clean or replace filters
Lubricate moving parts using proper grease
Tighten mounting hardware
Check PTO clutch settings
Bonus Tip:Log your inspections. It helps track wear and spot trends early.
Never skip safety. These systems move fast and carry power—even when they look still.Always do this first:
Turn off the engine
Disengage the PTO
Remove the key from ignition
Wait for all parts to stop moving
Other must-dos:
Wear gloves and eye protection
Use blocks or jacks if lifting parts
Don’t wear loose clothes or jewelry
| Task | Safety Step to Remember |
| Inspecting hoses | Depressurize system first |
| Greasing shaft | Ensure system is off |
| Tightening bolts | Use correct torque tools |
Picking the right PTO isn’t guesswork. It’s about matching power, performance, and fit for your setup.
Before buying, ask these key questions:
What type of work will it perform?
Will the PTO run continuously or only at times?
Where is space available for mounting?
Does your system use a belt or shaft drive?
How much power does the driven equipment need?
You don’t want to oversize it. That wastes fuel and adds cost. But too small? It’ll fail fast.
These three numbers matter most:
Torque – This is the turning force. More torque means it can handle heavier loads.
Speed (RPM) – How fast the PTO rotates. Match this to the tool’s ideal RPM range.
Horsepower (HP) – The total work it can deliver. HP is a combo of torque and speed.
Key formula for torque rating:RTC = Required Torque CapacitySF = Service Factor (varies by application: 1.5 to 2.0+)
A powerful PTO is useless if it doesn’t fit. Check your hydraulic system first.What to match:
Flywheel housing size (SAE standard or custom?)
Mounting location (side, front, or rear?)
Shaft size and spline type
Engagement method (air, electric, or hydraulic?)
| PTO Feature | Must Match With |
| Output Shaft Size | Pump or driven tool input |
| Torque Rating | Engine torque and load needs |
| Engagement Method | Control system and vehicle design |
| Mounting Style | Available space and transmission |
A: It's not recommended. Driving at speed with PTO on can cause damage or overheating. Only move slowly if needed.
A: Poor maintenance leads to leaks, overheating, noise, and early failure. It reduces system life and safety.
A: Look for slipping, noise, leaks, or trouble engaging. These signs suggest wear or damage.
A: Regular upkeep is cheaper than repairs. Ignoring issues can lead to high part and labor costs.
A PTO in a hydraulic system shares engine power with tools. It saves time, space, and fuel.It’s used in farming, trucks, construction, and rescue gear. One engine, many jobs. To keep it working, check fluid, seals, and alignment often. Always turn it off before repairs. Smart use and simple care keep your PTO running strong—and safe.Want to dive deeper into PTO systems? Check out our related articles for more helpful info and tips.Have questions about your setup? Contact us today for expert advice, custom solutions, or a quick quote.
